System Overview
2-3
All specifications subject to change without notification. All rights reserved. Copyright © 2006 NetStreams
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 7872
NOTE
Additional equipment may include:
Musica MU5066ADC (for Musica system integration)
AP300 or AP500 (for Musica system integration)
ControLinX (for DigiLinX system integration)
MediaLinX (for DigiLinX system integration)
MUR2EM (in conjunction with Musica MU5066ADC system integration).
PAN6400 VDC
The PAN6400 VDC
requires 2U of rack
space. To mount the
PAN6400 VDC, use the
supplied non-standard
rack mount ears or
purchase a Middle
Atlantic
(
) shelf (part number
RSH4A2S) for
mounting into a
standard 19-inch rack.
Familiarize yourself with the physical properties of the PAN6400 VDC to help plan for
your installation.
The physical dimensions of the PAN6400 VDC are:
16.95 inches (or 424 mm) wide
2.28 inches (or 57 mm) high
9.04 inches (or 226 mm) deep.
The front panel of the PAN6400 VDC has LEDs that indicate the state of the VDC
when in normal mode and assist with IR learning (see

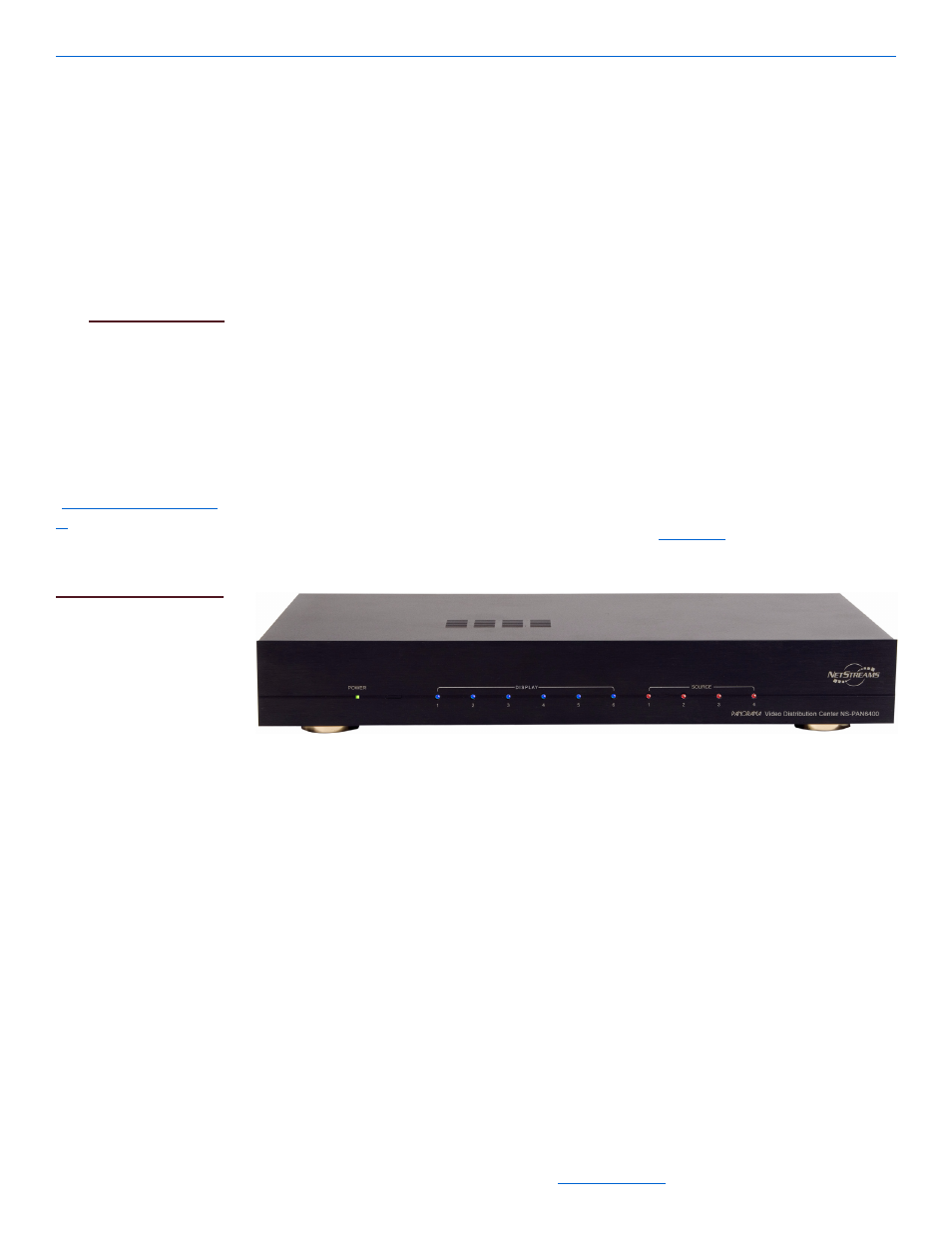

information). Figure 2-1 shows the front of the PAN6400 VDC.
Figure 2-1
PAN6400 VDC (front panel)
The front panel consists of the following LEDs:
one (green/red) power LED
an IR window (located next to the POWER LED)
six blue DISPLAY LEDs
four red SOURCE LEDs.
