NetStreams Panorama System Installation Guide
5-2
All specifications subject to change without notification. All rights reserved. Copyright © 2006 NetStreams
Main +1 512.977-9393 / fax +1 512.977.9398 / Toll Free Technical Support +1 866-353-3496
3600 W. Parmer Lane, Suite 100; Austin, TX 7872
Because S-Video and composite video signals do not use all input ports, you can mix
them between sources. The S-Video adapter (provided) uses the blue (Pb) and red (Pr)
ports leaving the green (Y) port available for composite video distribution for a
different source.
However, you cannot connect digital audio through the PAN6400 VDC in this
configuration. In addition, the display would need to have available ports for
simultaneous S-Video and composite connections to accommodate the sources with
differing video connections. You can use the remote control for the display to toggle
between the two sources by selecting the source input.

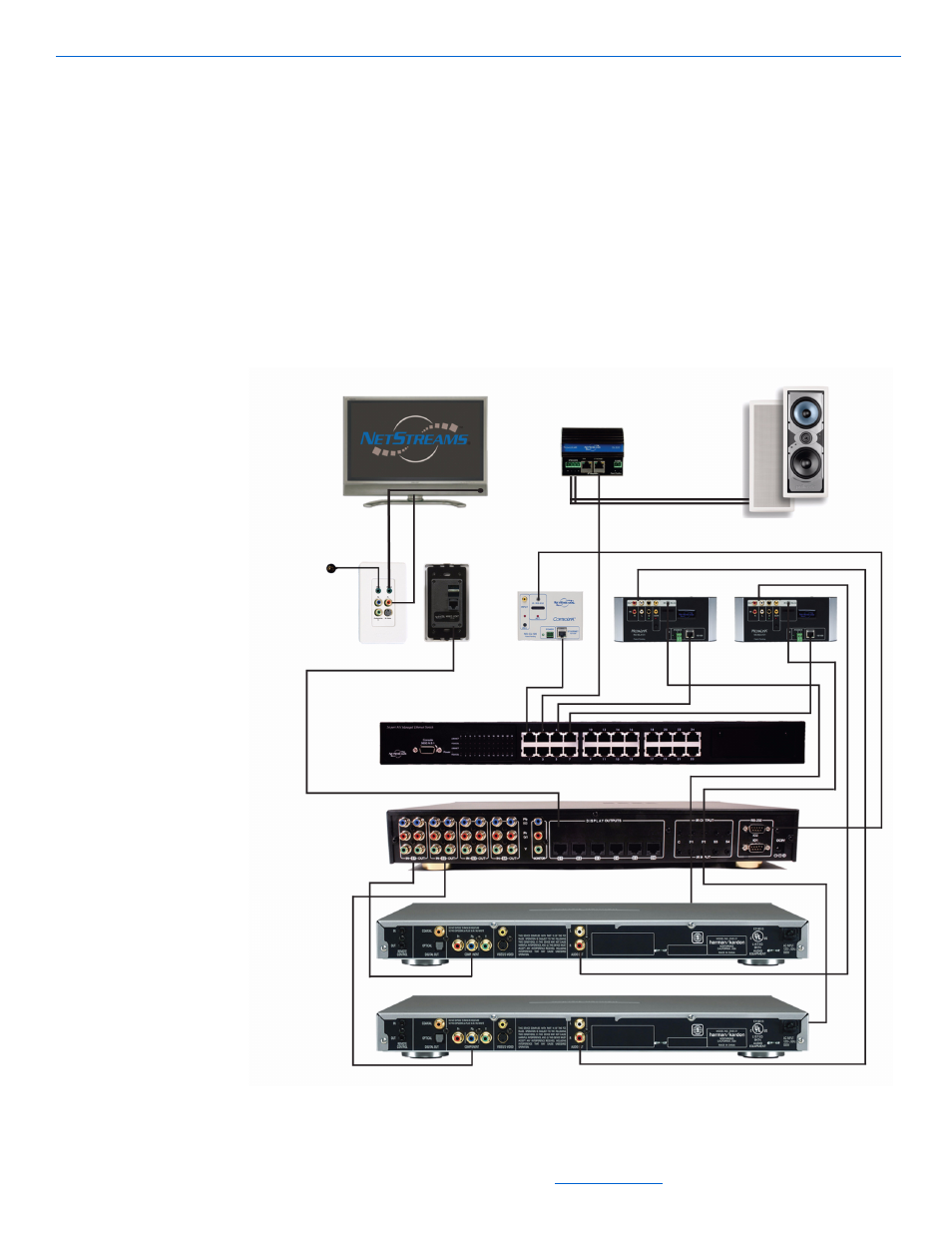

Figure 5-1 shows an example of the components you might use when integrating a
NetStreams Panorama system and DigiLinX. Not all DigiLinX components are shown.
Figure 5-1
Video switch integrated with DigiLinX
Sources
PAN6400 VDC
SwitchLinX
ControLinX
MediaLinX
Speakers
SpeakerLinX
Display
IR Emitter
IR
Receiver
PANVP700
Front
Back
IR Emitters
