8.
Connect the IR Receiver to the IR IN port on the VP700 and place the IR Receiver
where it can receive a signal from the remote. See
on page 2-5 for information on effective IR Receiver
placement.
9.
Connect an IR Emitter to the IR Out port of the VP700 and place the emitter end
over the IR window on the display.
10.
Connect 5.1 or higher channel speakers from the output ports of the A/V Receiver.
11.
Turn power on to all devices.
Composite Video with Coaxial Digital (S/PDIF) Audio
The following procedures show how to connect composite video and coaxial digital
(S/PDIF) audio to easily provide both video and audio distribution from one PAN6400
VDC. If you want to distribute the audio and video to more than six zones, you can
connect two or more PAN6400 VDCs in cascade mode as discussed in
Additional Displays (Cascade Mode)
When Panorama is installed as a standalone system, the VP700 Video Ports are highly
recommended as the IR Receiver permits control and switching of the sources with a
Panorama or universal remote control. Figure 3-4 shows a complete wiring diagram
for this configuration. For more detail on the ports on the rear panel of the Panorama,
see

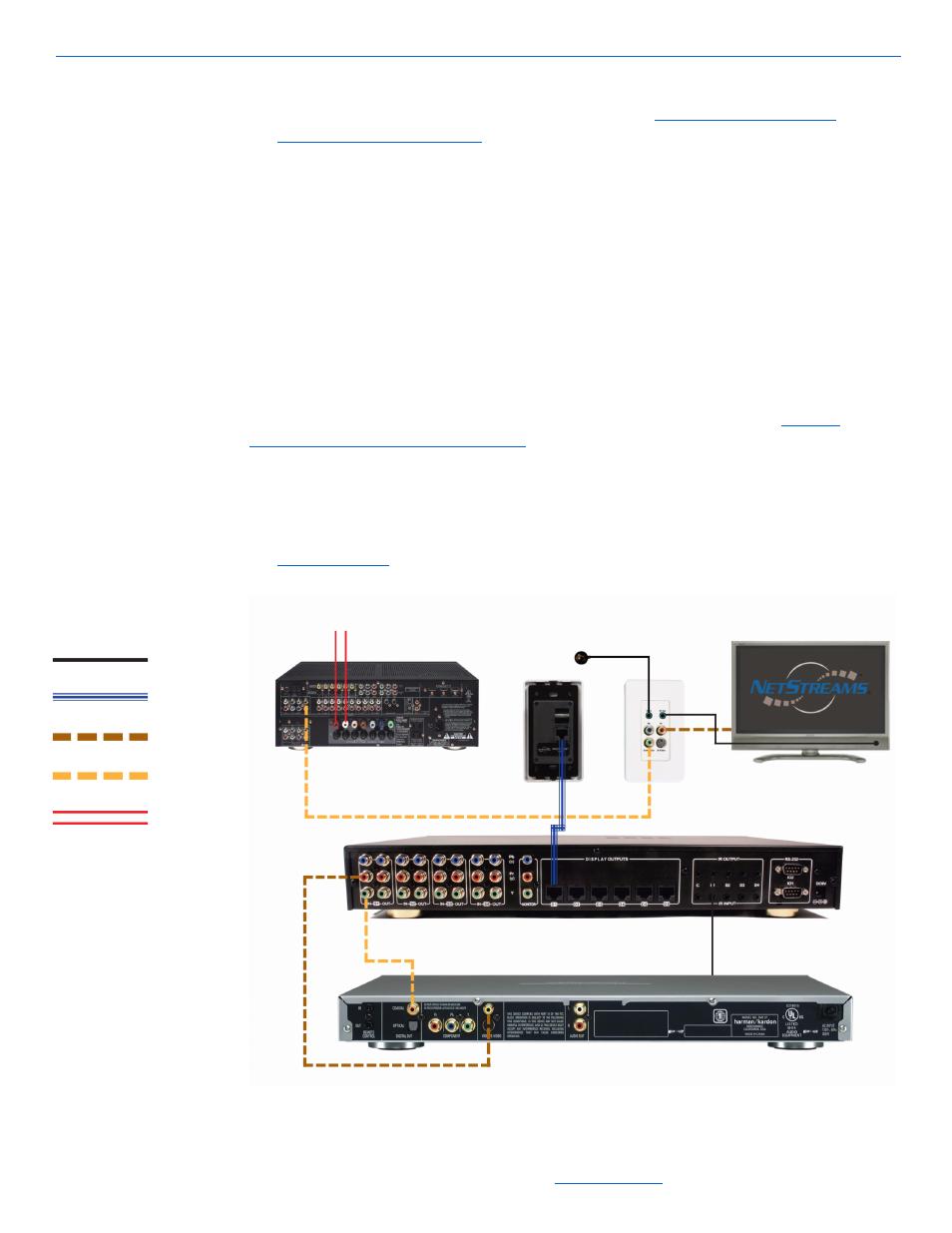

Figure 3-4
Composite video and coaxial digital (S/PDIF) audio
Legend
IR Emitter
CAT5
Composite
Coaxial audio
Speaker
5.1 or higher
channel speaker outputs
Display
PANVP700
Back
IR
Receiver
PANVP700
Front
PAN6400
IR
Emitter
Source
w
e
r
t
y
u
i
o
a
