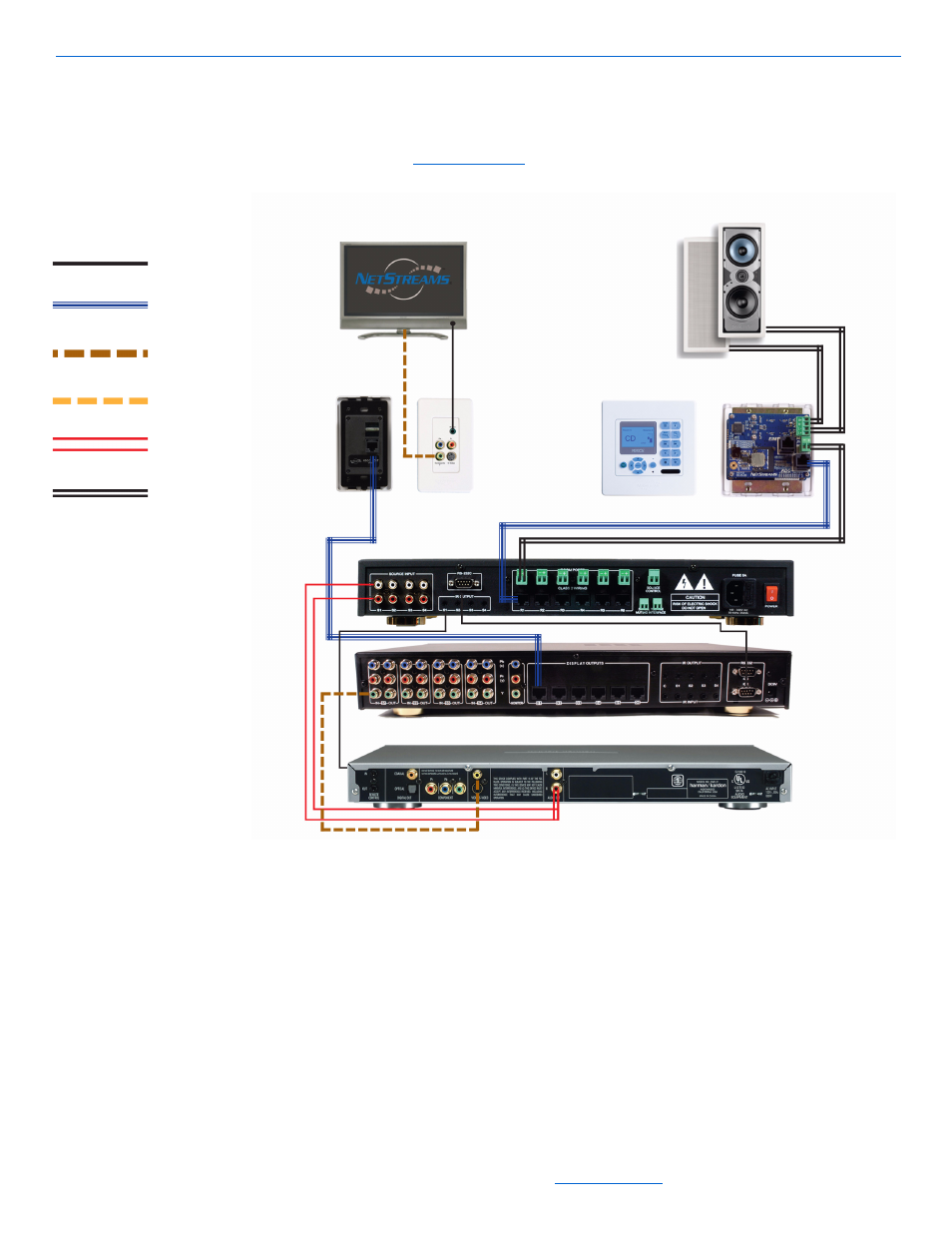

Figure 4-1 shows a typical method of integrating the two systems. Notice that analog
audio is connected through the Musica ADC and the video (composite in this case) is
connected through the PAN6400 VDC. For more detail on the ports on the rear panel
of the Panorama, see
Figure 4-1
Integrated with Musica
To make this connection, complete the following steps:
1.
Ensure power is off to all devices.
2.
Connect the video (composite in this example) from the source to the PAN6400
VDC.
3.
Connect the analog audio from the source to the Musica MU5066ADC.
You must connect to the same source number (S1 - S4) that the video is connected
to. If a source is connected to the S2 ports for video on the PAN6400 VDC, that
source must be connected to the S2 ports on the Musica MU5066ADC.
Legend
IR Emitter &
null modem
CAT5
Composite
Coaxial audio
Analog audio
Power and
speaker
w
e
r
t
y
u
i
o
a
s
Display
Speakers
PANVP500
Front
PANVP500
Back
Musica Keypad
Front
Back
Source
PAN6400
VDC
Musica
MU5066ADC
