SARGENT 7000 Series Vertical Rod Lock User Manual
Page 7
PAGE 7
7860D
4/13
Copyright ©2007, 2013 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
1. Through bolt the trim as described in Step 5 on pages 1 & 2.
Ensure that the inside cylinder tailpiece engages the auxiliary cam on the outside trim.
2. Check for smooth locking and unlocking via cylinder on both sides of the door.

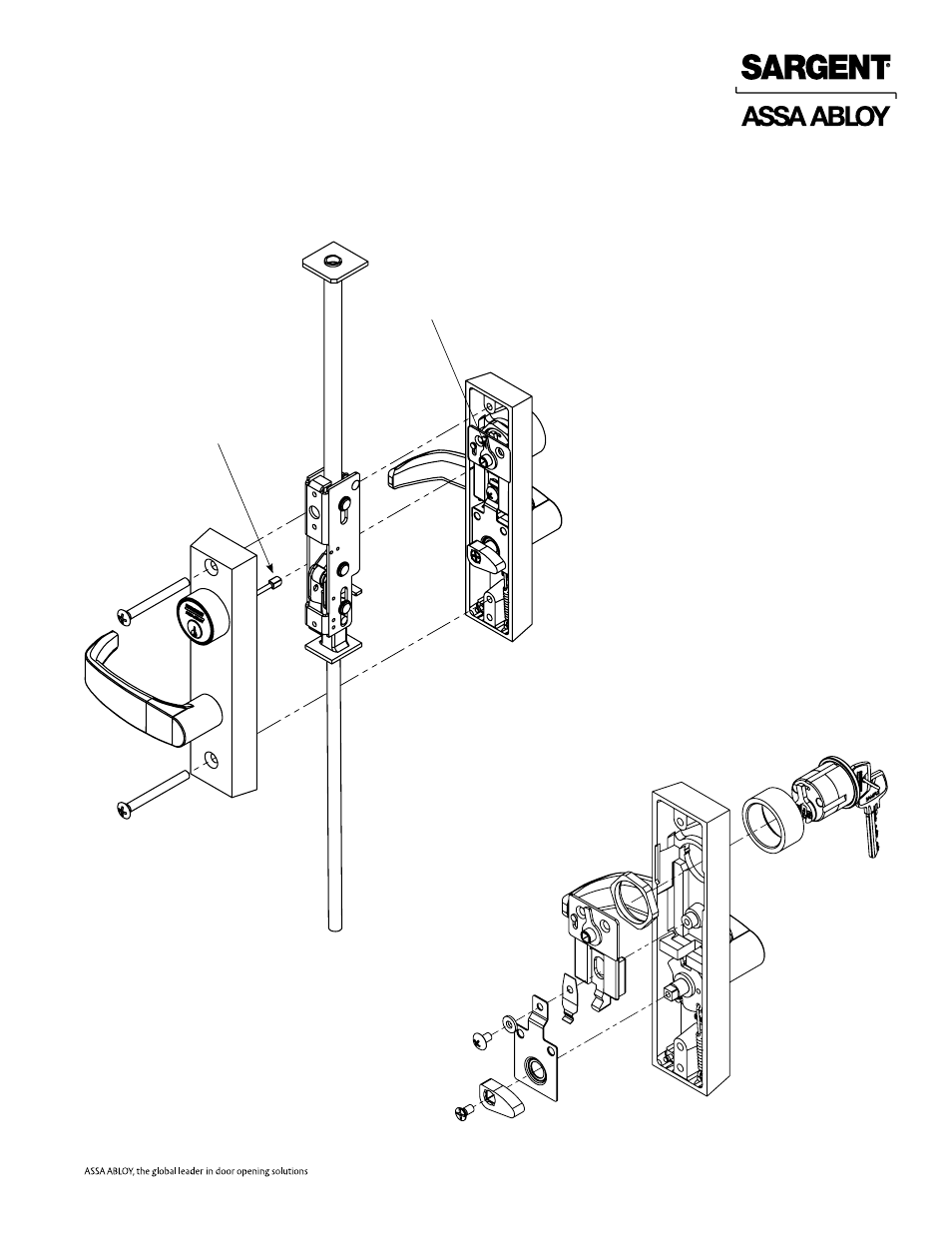

Instructions for Installing Classroom Function on
7000,12-7000, NB-7000 and 12-NB-7000 Series
Concealed Vertical Rod Latch Device
Auxiliary
Cam
Inside Cylinder
Tailpiece
Remove components shown below
in order to replace outside cylinder.
Reinstall removed components
after cylinder is installed.
