SARGENT 7000 Series Vertical Rod Lock User Manual
Page 6
Copyright ©2007, 2013 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
PAGE 6
7860D
4/13

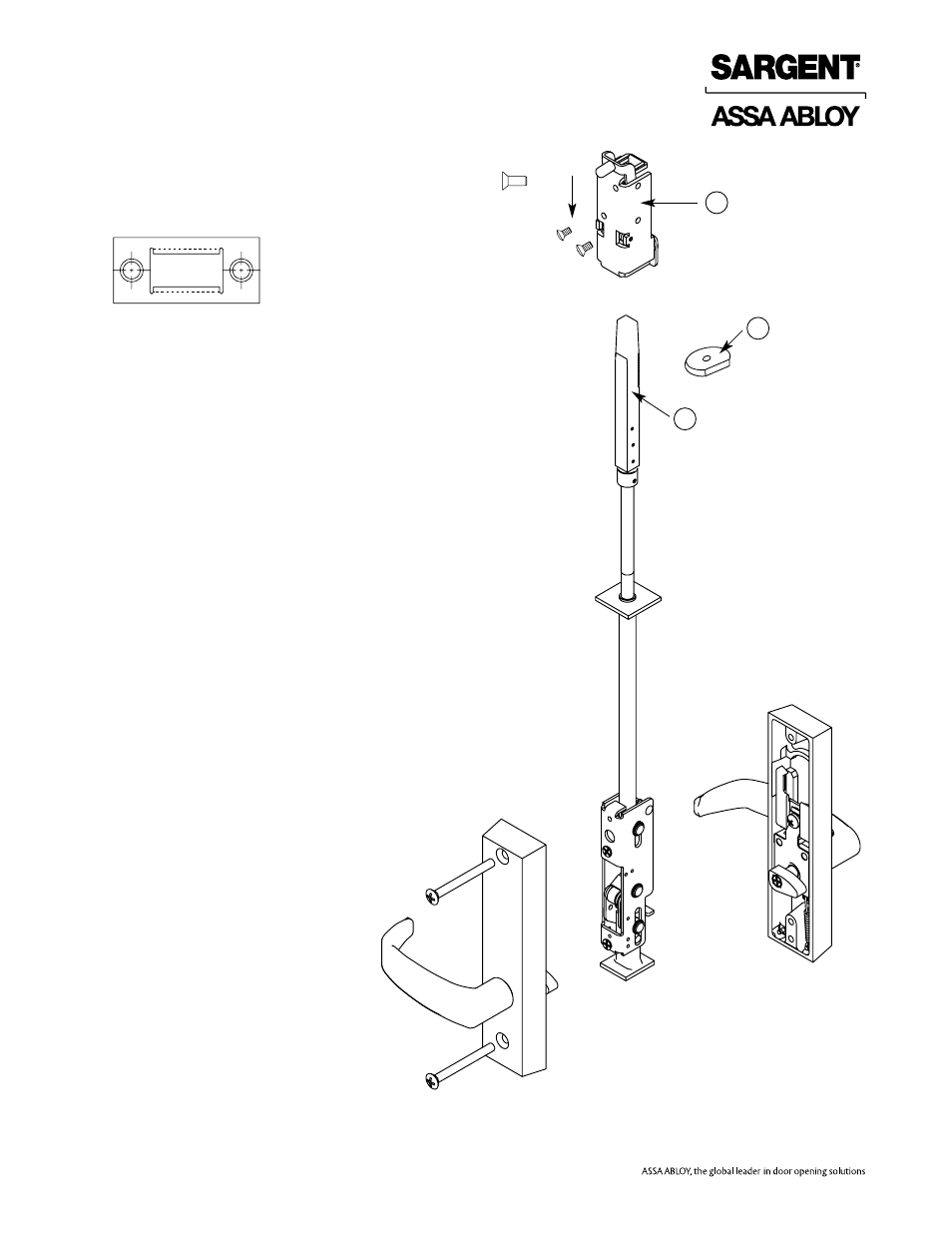

7) Slide rod silencer (G) over top bolt (F) onto rod.
Position top case (E) over top bolt (F).
Secure top case (E) to door with (2) screws (HH).
8) Install door in frame using hinges.
8) 650 Top Strike
ATTACH 650 Top Strike to door frame, (2) #10-24 x 1/2"
flat head screws (Reference template 4449).
9) BEFORE CLOSING DOOR
Adjust bolts per steps 6 as needed:
a) Either lever retracts bolt.
b) Bolt stays retracted (hold back).
c) Bolt releases when door closes; button inside top
of door hits frame.
d) Bolt engages strike, 1/4"- 5/16".
650 Top Strike
Top case
E
HH Screws (2)
Top bolt
F
Silencer
G
