SARGENT 7000 Series Vertical Rod Lock User Manual
Page 4
Copyright ©2007, 2013 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
PAGE 4
7860D
4/13
Note 1) Measure gap between top of door and frame, and bottom of door and floor
before removing door from hinges. (Ref. Step 6 & 7).
Note 2) For 100 Series Auxiliary Controls:
Prep door BEFORE installing latching device. Install Aux Control AFTER installing
latching device.
Note 3) For 100 Series Auxiliary Controls:
Prep doors BEFORE installing latching device. Install Aux Control AFTER
installing latching device. For 106 or 113 Aux Controls: Template 4212;
Installation instructions A5985.

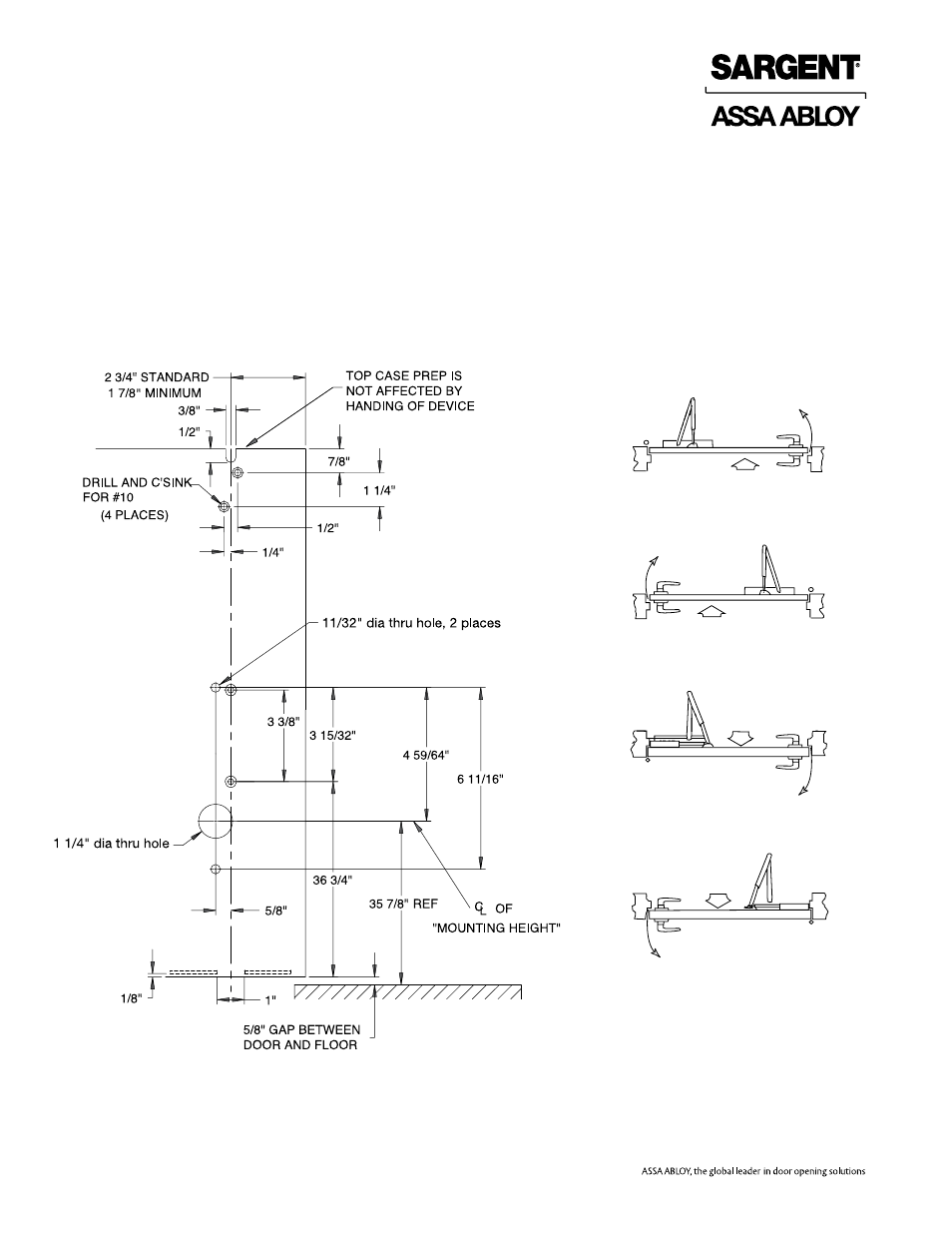

1) Drill and countersink door per template.
Handing
Right Hand Door
Left Hand Door
Right Hand Reverse Bevel
Left Hand Reverse Bevel
RH
RHRB
LHRB
Instructions for Installing NB-7000 & 12-NB-7000 Series
Concealed Vertical Rod Latch Device
