SARGENT 7000 Series Vertical Rod Lock - Manual

Instructions for Installing 7000 & 12-7000 Series
Concealed Vertical Rod Latch Device
Note 1) Measure gap between top of door/ frame and bottom of door
and floor before removing door from hinges (Ref. Steps 6 & 7).
Note 2) For 100 Series Auxiliary Controls:
Prep door BEFORE installing latching device. Install Aux Control AFTER installing latching device.
For 106 or 113 Aux Controls: Template: 4212 Installation instructions: A5985

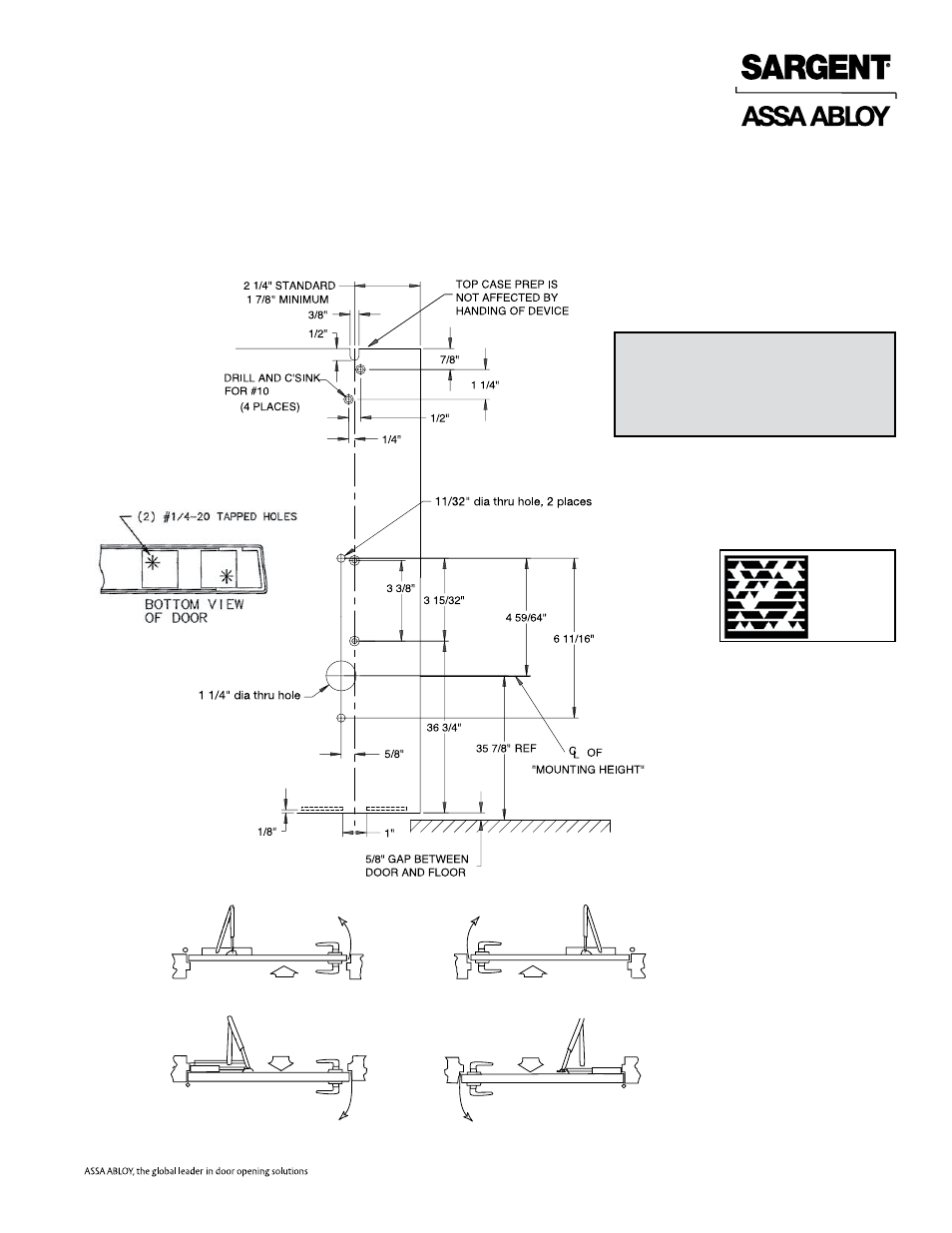

1) Drill and countersink door per templates to right and below.
Handing
Right Hand Door Left Hand Door
Left Hand Reverse Bevel Right Hand Reverse Bevel
LH RH
RHRB LHRB
PAGE 1
7860D
4/13
Copyright ©2007, 2013 Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.
To view helpful video installation tips,
scan the Microsoft
®
Tags with
your mobile phone. Download the free
mobile app at http://gettag.mobi.
Scan to see a
video of this
installation step.
