SARGENT Profile Series v.G1.5 Exit Devices - Manual (Page 9)

7
800-810-WIRE (9473) • www.sargentlock.com • A7757B
Profile Series v.G1 Exit Device
Copyright © 2006, 2008, Sargent Manufacturing Company
, an A
SSA ABL
O
Y
Group company
. All rights reserved.
Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

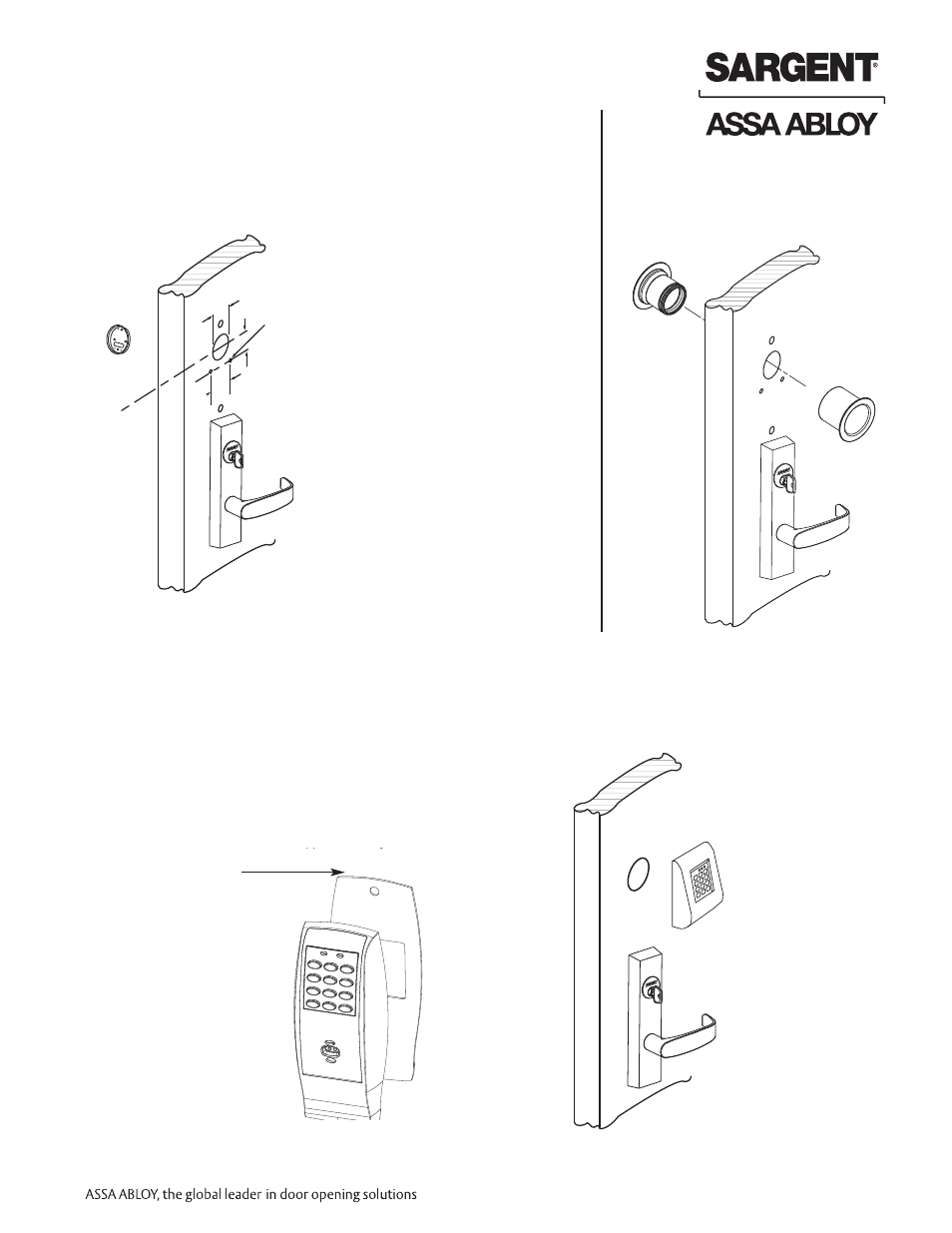

Step #3 – Attach Fire Stop Plate
Installation Instructions (Continued)
Outside
of door
1-1/2'' Dia.
7/8''
NOTE: Required for 12- Fire Rated doors only
1. Drill (2) 1/8" diameter holes if the door is not supplied with them
2. Secure fire stop plate to door with (2) #8 x 1/2" self tapping screws
Outside
of door
Wires & connector
go through fire
stop plate
Keypad ribbon
cable/connector
1 2 3
4 5 6
7 8 9
0 *
#
Step #4 – Installation of Outside Escutcheon
Insert connector and wires
1. For exterior applications gasket (68-1400) should be
used to seal between escutcheon and outside door surface
2a. For 12- fire rated devices feed keypad ribbon cable/connector
from outside of door through gasket then fire stop plate
2b. For non-12- exit devices, feed keypad ribbon cable/connector
through gasket then conduit hole in door
3. Place escutcheon against door surface
For exterior applications.
gasket (68-1400) should
be placed between the
escutcheon and door surface
-
+
-
+
-
+
-
+
+
-
+
-
Non Fire Rated Exterior Doors-
Install Weather Conduit
(P/N 52-2847) as shown below
