Rim Installation Instructions (Continued)

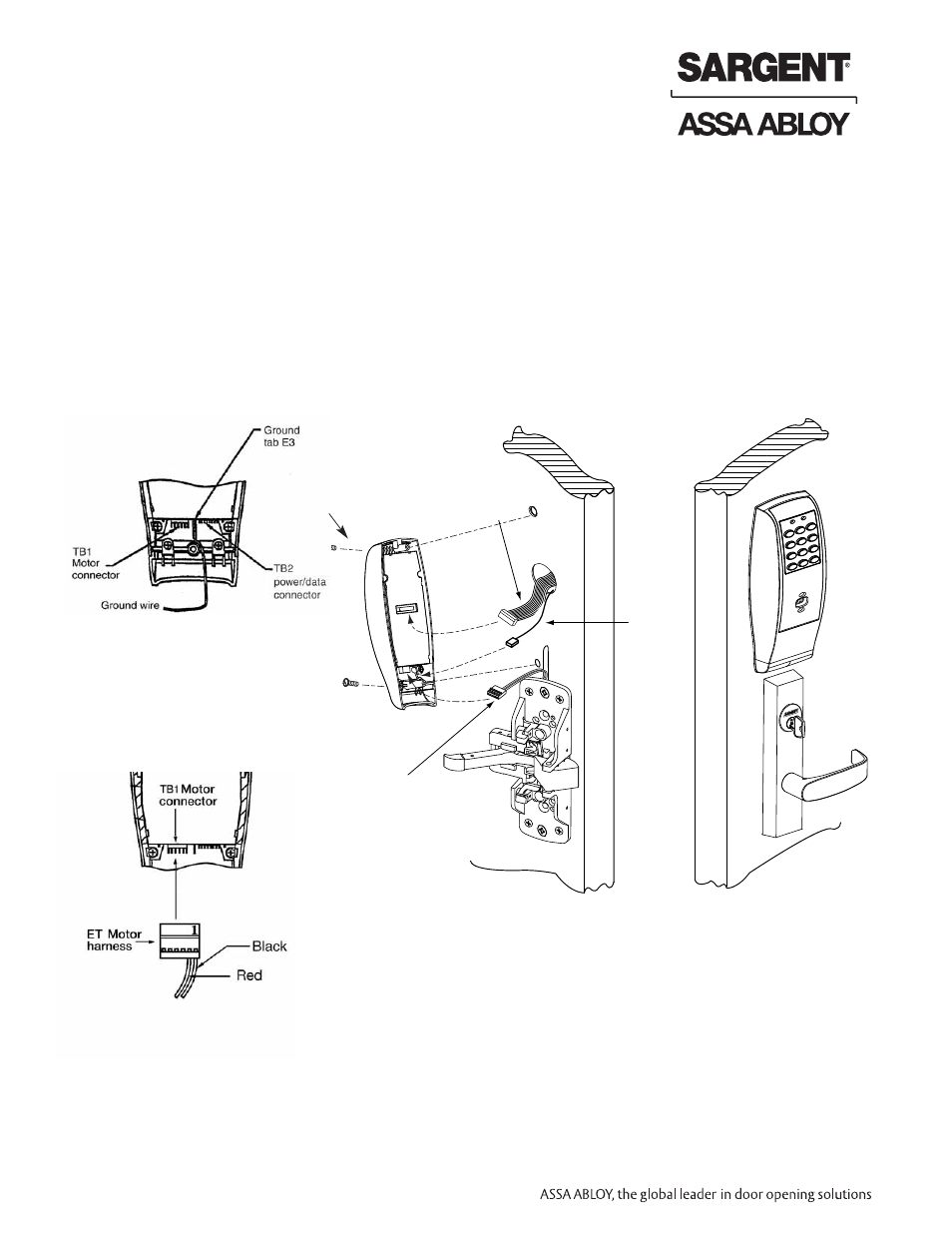

1. Connect ground wire to terminal E3 (Fig. 1), keypad harness to controller (Fig. 2), and ET motor harness to motor

connector (Fig. 3).

2. Place extra wire inside door hole and/or outside escutcheon being careful not to pinch wires.

3. Connectors go on only one way, do not offset connector and be sure they are completely seated.

4. Insert #8-32 x 1-1/4" screws through inside escutcheon and thread into outside escutcheon. Straighten

escutcheons and tighten securely.

Ground

wire

ET Motor

harness

Keypad

harness

Outside

of door

Inside

of door

Step #5 Installation of Inside Escutcheon

Fig. 1

Fig. 3

Fig. 2

Note : For RF Technology versions (G1-TU, G1-TP, G1-TA) refer to Section 9 to install through bolt screws.

Note: For RF Technology
version refer to Section 9.
