Profile Series v.G1 Exit Device

, an A

SSA ABL

Group company

Reproduction in whole or in part without the express written permission of Sargent Manufacturing Company is prohibited.

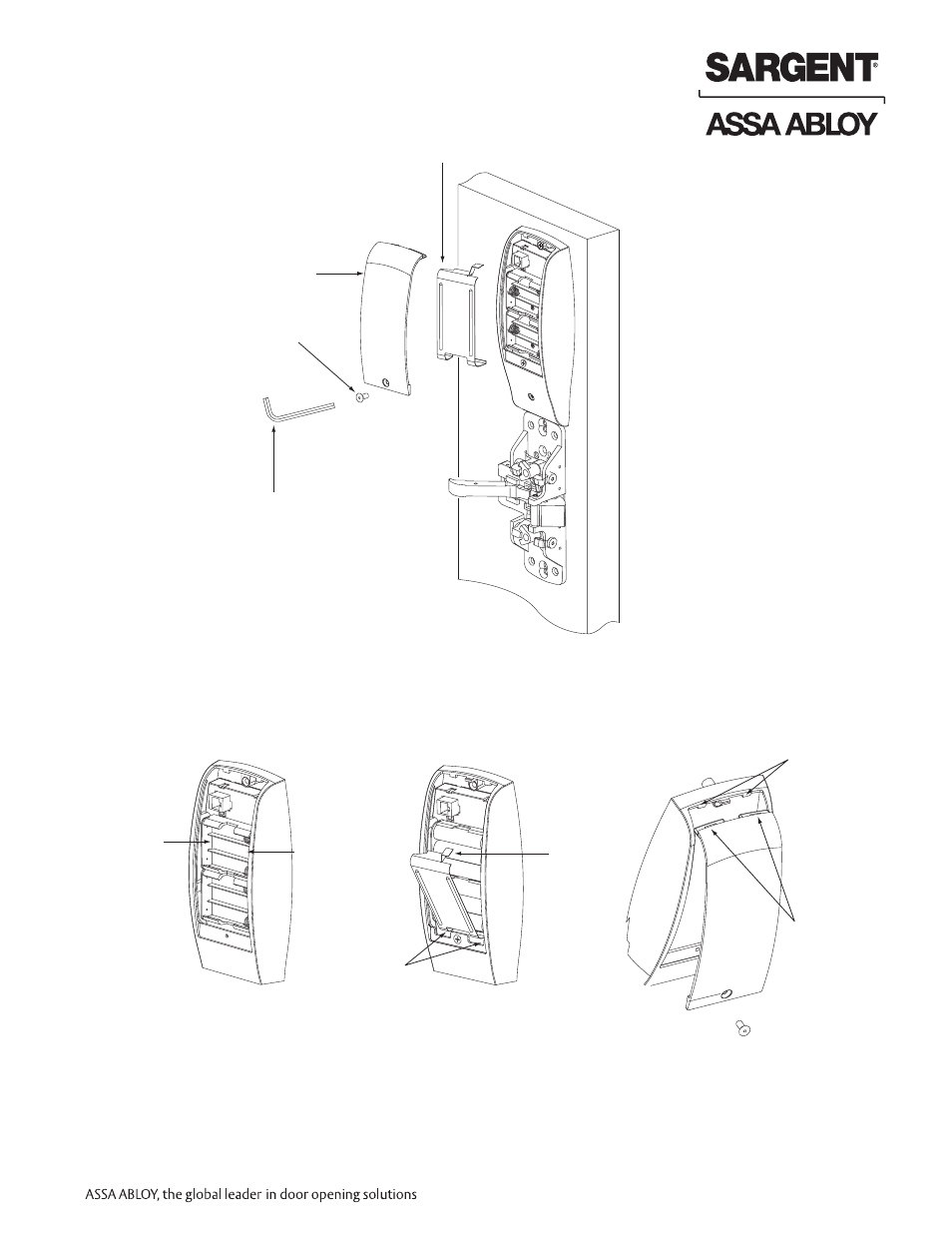

Rim Installation Instructions (Continued)

Security
screw

Security tool
01-0297 included

Battery keeper

Battery cover

- Polarity

+ Polarity

Bottom slots

Top tab

Tabs

Top slots

Step #6 Rail Assembly

Attach rail assembly according to exit installation instructions A6770

Fig. 4

Fig. 5

Fig. 6

Fig. 7

1. Place (6) “AA” batteries into

the compartment, being
careful to align polarity
properly (Fig. 5).

2. Install battery keeper clip

by inserting tabs into
bottom slots first (Fig. 6). To
remove keeper, pull on top
tab. For RF Technology
version refer to Section 9.

3. Attach battery cover to inside

escutcheon, making sure to
line up tabs with retaining
slots in battery cover. Secure
with security screw (Fig. 7).

Note: For RF

Technology versions

(G1-TU, G1-TP, G1-TA)

refer to Section 9 when

installing/removing

battery keeper.
