28
7. With the pin removed, lift the trigger group out
of the receiver by lifting upward and pulling rearward
(Figure 13).
D isAssemblY oF the s liDe AnD b olt
1. Remove the barrel and trigger group as explained
earlier, but do not replace the magazine cap.
2. With the bolt assembly attached to the slide arm,
simultaneously slide both assemblies forward and out
of the front of the receiver. Note that as the bolt
assembly passes by the ejection port, there may be
some resistance from the ejector spring. Carefully
work it past the resistance.
r emovAl oF the F irinG p in
1. Remove the bolt assembly from the shotgun as
explained previously.
2. Grasp the bolt assembly, bottom side up (flat side),
and push the rear of the firing pin forward with your
forefinger. While holding the firing pin in this
position, use your other hand to tilt the front end of
the slide arm and move it slightly forward.
3. Lift up on the slide arm and disengage the curved
tongue on the slide arm from the groove in the firing
pin. This detaches the slide arm from the bolt slide.
4. The firing pin is under spring tension and will
snap out the rear of the bolt when your forefinger
releases it. Control the pin as you remove the firing
pin and spring.
For cleaning purposes no further disassembly is necessary
or recommended. Do not disassemble your Super X Pump
further than shown in Figure 12 on page 26. Doing so may
void your warranty. For repairs that require further
disassembly contact a Winchester Firearms Authorized
Service Center or a qualified gunsmith as explained under
“Parts, Service, Repair and Questions” on page 30.
A ssemblY oF the F irinG p in , b olt AnD s liDe
1. Reinstall the firing pin spring over the firing pin.
Either end of the spring can go on first.
2. Insert the firing pin/spring assembly into the rear
opening of the bolt slide, pin end first.

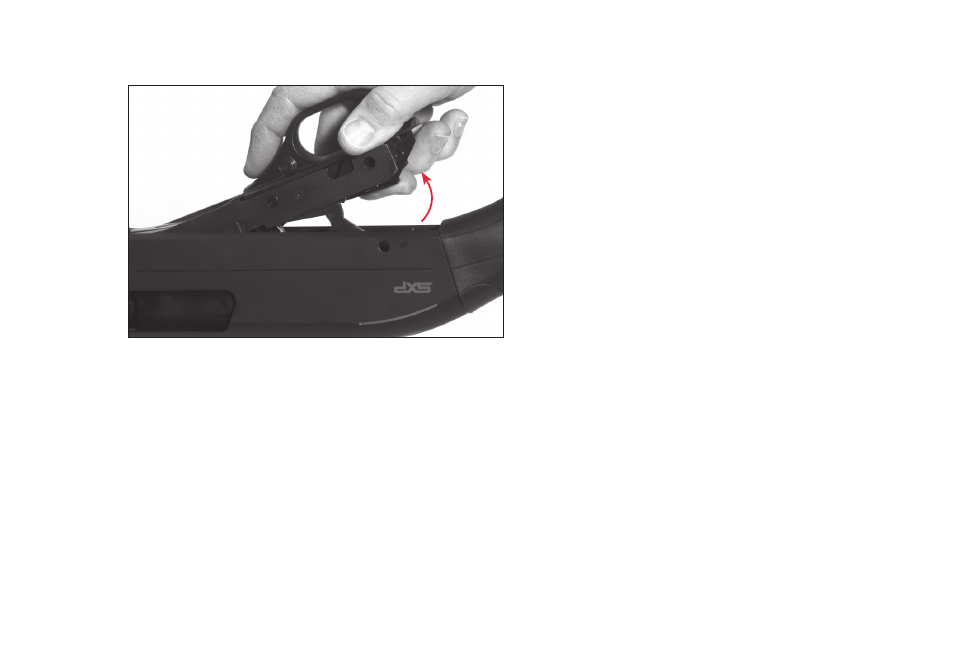

FIGURE 13
After removing the
pin, tilt the rear of the
trigger guard group
up, then lift it out.
