Winchester Repeating Arms X Pump (SXP) User Manual

Page 21

always insPeCt the ChaMber, barrel, Feed
MeChanisM and MagaZine CareFully aFter
unloading to be sure all live shells are
Cleared FroM the FirearM.

nloADinG

YclinG

the

ction

Perform the following steps to remove shells from the

chamber and magazine on all Super X Pump models.
1. Place the “safety” in the on safe position.
2. Press the disconnector release button to release the

slide (Figure 6, page 13).

3. Slide the forearm through a complete cycle of the

action and repeat the process until all the shells in the

magazine have been transferred to the chamber and

then ejected.

4. When the last shell in the magazine has been cycled

through the chamber and out the ejection port, leave

the action open.

5. Using your index finger, feel the entry of the

magazine to make sure there are no longer any

shells in the magazine.

nloADinG

From

the

AGAzine

The shells can also be removed from the magazine by

following these steps:

1. Place the “safety” in the on safe position, make sure

the action is closed and keep the muzzle pointing in

a safe direction.

2. Turn the firearm over so the trigger guard is facing up,

then push the carrier down as far as it will go.

3. Push inward on the shell stop to release a shell

from the magazine (Figure 10). Press the shell stop

again to release the second shell. The shell stop is

located on the inside-right of the ejection port.

When a shell is in the magazine the shell stop rests

on the brass of the shell.

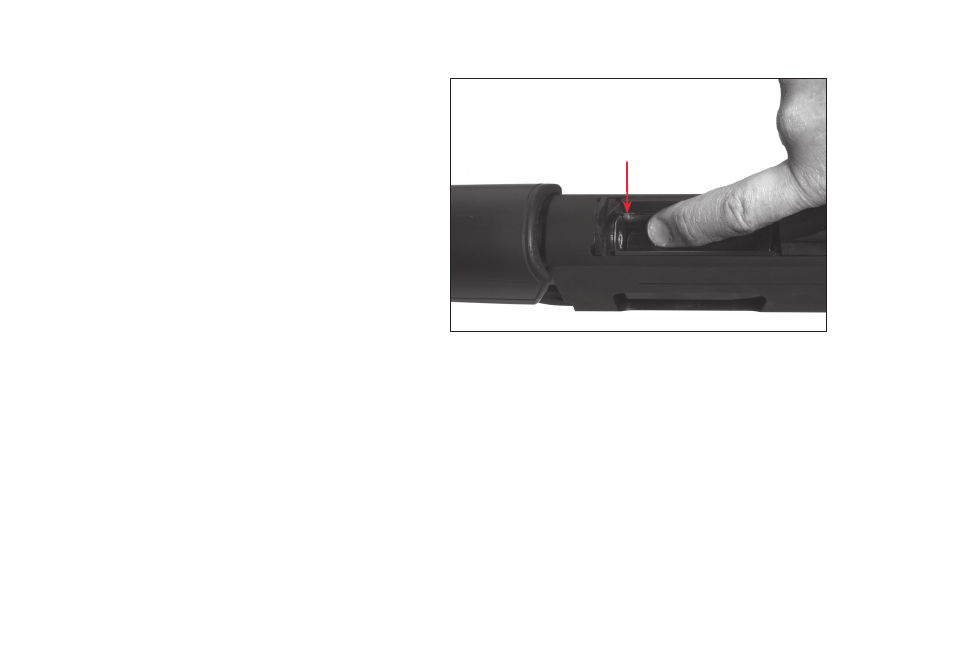

FIGURE 10

Press the shell stop inward to
release shell from magazine.
