AUTO-CUT 200 XT
�-�
PARTS LIST
Manual 0-5253

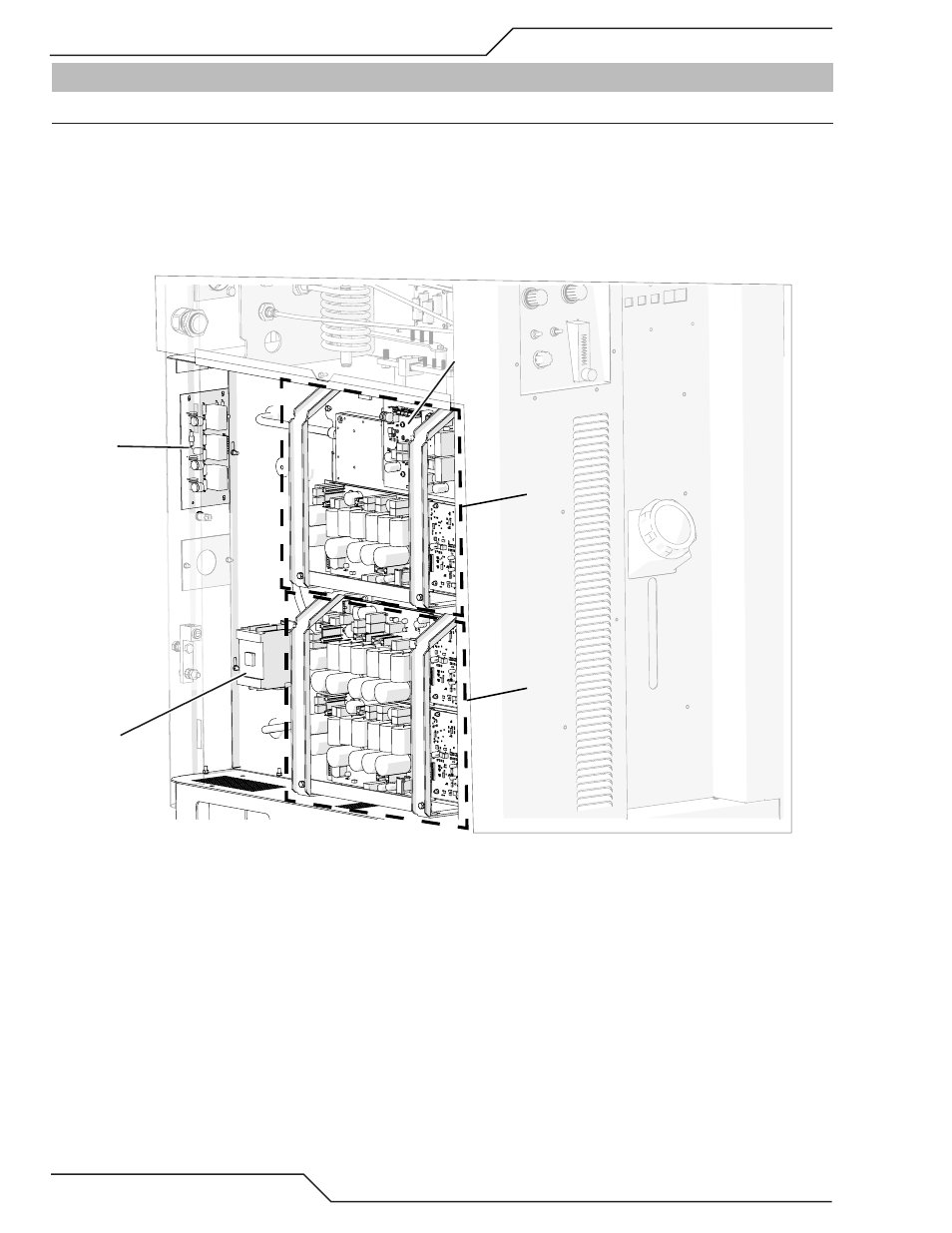

6.06 Power Supply Replacement Parts - Lower Left Side
Item # Qty
Description
Ref. Des.
Catalog #
1
1
AC Suppressor PCB
9-9254
2
1
Pilot PCB Assembly AC-200XT
9-9255
3
1
Half Inverter Block (Pilot PCB not included)
9-7319
4
1
Full Inverter Block
9-7317
5
1
Main Contactor
W1
9-7318
1
2
3
4
Art # A-11568
5
