INSTALLATION

3-10

Manual 0-2696

A. Hand Systems

Connect the Hand Torch to the Power Supply as follows:

1. Open the Access Panel to gain access to the Torch

Bulkhead Panel.

2. Feed the end of the Torch Leads through the rub-

ber boot on the front panel in the following order
(see NOTE):

• Control Cable Connector

• Torch Coolant and Gas Leads

NOTE

Feed the Control Cable through the rubber boot first
as there will not be enough space inside the rubber
boot for the connector if the Coolant and Gas Leads
have been fed through the rubber boot first.

A-02949

Secondary

Gas

Plasma (+)

Gas

Control Cable

Connector

Coolant

Return

Coolant

Supply (-)

Control

Cable

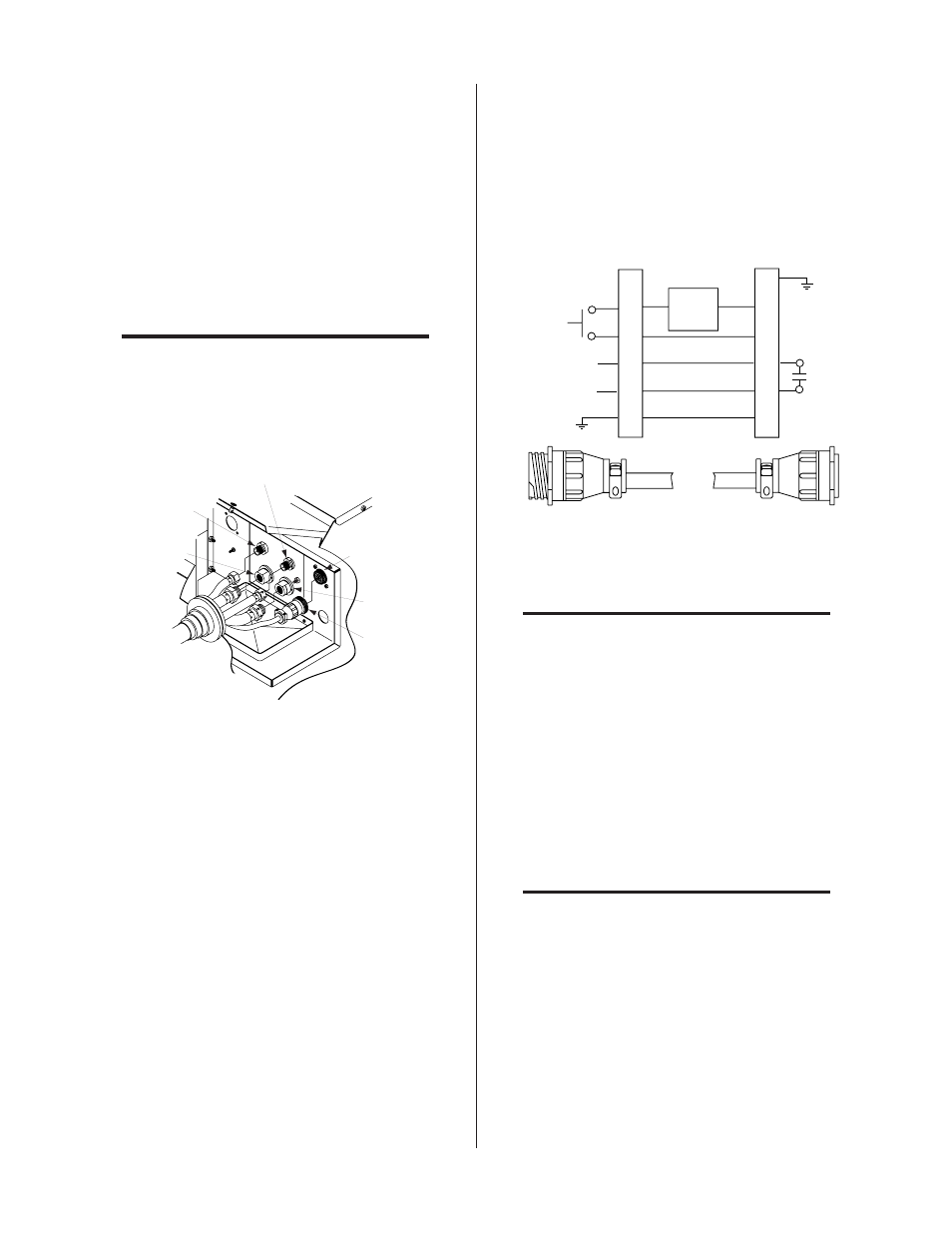

Figure 3-13 Hand Torch Leads Connections

3. Connect torch coolant and gas leads to connectors on

the Torch Bulkhead Panel.

4. Close the access panel and turn the two latching

screws.

5. Check the torch for proper parts assembly.

B. Machine Systems (Unshielded Leads)

Systems ordered with Unshielded Machine Torch will
include a Remote Hand Pendant. The Remote Hand Pen-
dant allows the operator to start the cutting operation
from a remote location.

Torch Control

Cable Connector

Remote Pendant/CNC

Cable Connector

PIP

Circuit

Control

OK-To-Move

A-01366

Figure 3-14 Remote Pendant Connector Diagram

NOTE

Equipment ordered as a System will have the Con-
trol Cable and Torch Leads factory connected to the
Power Supply.

Connect the Remote Hand Pendant and Torch Leads to the
Power Supply as follows:

1. Open the Access Panel to gain access to the Torch

Bulkhead Panel.

2. Feed the connector on the end of the Remote Hand

Pendant Control Cable through the rubber boot
on the front panel of the Power Supply (see
NOTE).

NOTE

3. Connect the Remote Hand Pendant Control Cable

connector to the Control Cable connector on the
Torch Bulkhead Panel.

4. Feed the end of the Torch Leads through the rubber

boot.
