Manual 0-2696 3-9 INSTALLATION
2. Connect the SECONDARY gas supply to the rear of the
Power Supply as follows:
a. Remove the Secondary Hose from the Inert-B
Fitting at the Secondary air regulator of the
Power Supply.
b. Connect the customer supplied gas cylinder sup-
ply hose from the secondary gas source to the In-
ert-B Fitting on the SECONDARY air regulator of
the Power Supply.
c. Disconnect the unused Secondary gas supply hose
from the T-Fitting and install a customer supplied
1/4 NPT plug fitting.
3.09 Connecting Torch Leads
WARNING
Disconnect primary power at the source before as-
sembling or disassembling the power supply, torch
parts, or torch and leads assembly.
The instructions for connecting the Torch Leads to the
Power Supply are different depending on the type of
leads. This sub-section covers connecting the Torch for
the following applications:
A. Hand Systems
B. Machine Systems (Unshielded Leads)
C. Machine Systems (Shielded Leads)
D. Remote Pendant Control (Optional)
The Torch Leads must be properly installed to the Power
Supply for proper operation. If the torch leads were not
factory installed, make all torch connections to the Torch
Bulkhead Panel for the desired application.
NOTE
Equipment ordered as a system will have the Torch
factory connected to the Power Supply.
Connecting the Torch Leads to the Power Supply requires
gaining access to the Torch Bulkhead Panel in the Power
Supply as follows:
1. Turn the two screw latches securing the Access Panel
to the power supply front panel.
Bulkhead
Access
Panel
Screw
Latches
Torch Leads
Shield Stud
A-02684

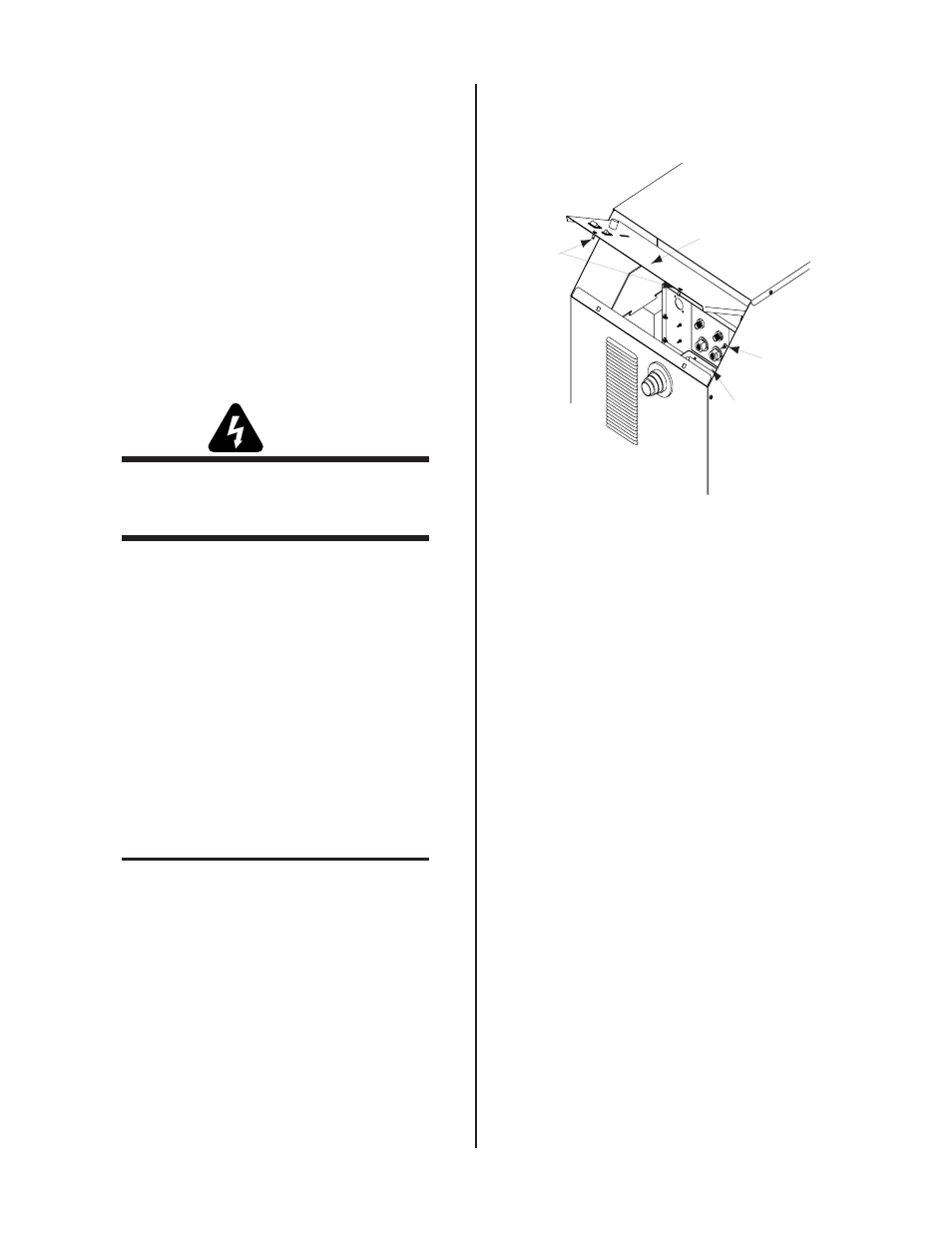

Figure 3-12 Access Panel
2. Lift up on the Access Panel to gain access to the Torch
Bulkhead Panel.
