tekmar 364 Universal Reset Control Installation - Manual (Page 36)

Product design, software and literature are Copyright © 2001 by:
tekmar Control Systems Ltd. and tekmar Control Systems, Inc. All specifications are subject to change without notice.
Printed in Canada. D 364 - 07/01.
Control Systems
tekmar Control Systems Ltd., Canada
tekmar Control Systems, Inc., U.S.A.
Head Office:
5100 Silver Star Road
Vernon, B.C. Canada V1 B 3K4
(250) 545-7749 Fax. (250) 545-0650
Web Site: www.tekmarcontrols.com
36 of 36
Limited Warranty and Product Return Procedure
Limited Warranty The liability of tekmar under this warranty is limited. The Purchaser,
by taking receipt of any tekmar product (“Product”), acknowledges the terms of the Limited
Warranty in effect at the time of such Product sale and acknowledges that it has read and
understands same.
The tekmar Limited Warranty to the Purchaser on the Products sold hereunder is
a manufacturer’s pass-through warranty which the Purchaser is authorized to pass
through to its customers. Under the Limited Warranty, each tekmar Product is war-
ranted against defects in workmanship and materials if the Product is installed and
used in compliance with tekmar’s instructions, ordinary wear and tear excepted.
The pass-through warranty period is for a period of twenty-four (24) months
from the production date if the Product is not installed during that period, or
twelve (12) months from the documented date of installation if installed within
twenty-four (24) months from the production date.
The liability of tekmar under the Limited Warranty shall be limited to, at tekmar’s
sole discretion: the cost of parts and labor provided by tekmar to repair defects in
materials and/or workmanship of the defective product; or to the exchange of the
defective product for a warranty replacement product; or to the granting of credit
limited to the original cost of the defective product, and such repair, exchange or
credit shall be the sole remedy available from tekmar, and, without limiting the
foregoing in any way, tekmar is not responsible, in contract, tort or strict product lia-
bility, for any other losses, costs, expenses, inconveniences, or damages, whether
direct, indirect, special, secondary, incidental or consequential, arising from own-
ership or use of the product, or from defects in workmanship or materials, including
any liability for fundamental breach of contract.
The pass-through Limited Warranty applies only to those defective Products
returned to tekmar during the warranty period. This Limited Warranty does not
cover the cost of the parts or labor to remove or transport the defective Product, or
to reinstall the repaired or replacement Product, all such costs and expenses being
subject to Purchaser’s agreement and warranty with its customers.
Any representations or warranties about the Products made by Purchaser to its
customers which are different from or in excess of the tekmar Limited Warranty are
the Purchaser’s sole responsibility and obligation. Purchaser shall indemnify and
hold tekmar harmless from and against any and all claims, liabilities and damages
of any kind or nature which arise out of or are related to any such representations
or warranties by Purchaser to its customers.
The pass-through Limited Warranty does not apply if the returned Product has
been damaged by negligence by persons other than tekmar, accident, fire, Act
of God, abuse or misuse; or has been damaged by modifications, alterations or
attachments made subsequent to purchase which have not been authorized by
tekmar; or if the Product was not installed in compliance with tekmar’s instructions
and/or the local codes and ordinances; or if due to defective installation of the
Product; or if the Product was not used in compliance with tekmar’s instructions.
THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, WHICH THE GOVERNING LAW ALLOWS PARTIES TO CON-
TRACTUALLY EXCLUDE, INCLUDING, WITHOUT LIMITATION, IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, DURABILITY OR DESCRIPTION OF THE PRODUCT, ITS NON-
INFRINGEMENT OF ANY RELEVANT PATENTS OR TRADEMARKS, AND ITS
COMPLIANCE WITH OR NON-VIOLATION OF ANY APPLICABLE ENVIRON-
MENTAL, HEALTH OR SAFETY LEGISLATION; THE TERM OF ANY OTHER
WARRANTY NOT HEREBY CONTRACTUALLY EXCLUDED IS LIMITED SUCH
THAT IT SHALL NOT EXTEND BEYOND TWENTY-FOUR (24) MONTHS FROM
THE PRODUCTION DATE, TO THE EXTENT THAT SUCH LIMITATION IS
ALLOWED BY THE GOVERNING LAW.
Product Warranty Return Procedure All Products that are believed to have
defects in workmanship or materials must be returned, together with a written
description of the defect, to the tekmar Representative assigned to the territory in
which such Product is located. If tekmar receives an inquiry from someone other
than a tekmar Representative, including an inquiry from Purchaser (if not a tekmar
Representative) or Purchaser’s customers, regarding a potential warranty claim,
tekmar’s sole obligation shall be to provide the address and other contact informa-
tion regarding the appropriate Representative.
The installer must ensure that this control and its wiring are isolated and/or shielded from strong sources of electromagnetic noise. Conversely, this Class B digital
apparatus complies with Part 15 of the FCC Rules and meets all requirements of the Canadian Interference-Causing Equipment Regulations. However, if this control
does cause harmful interference to radio or television reception, which is determined by turning the control off and on, the user is encouraged to try to correct the interfer-
ence by re-orientating or relocating the receiving antenna, relocating the receiver with respect to this control, and/or connecting the control to a different circuit from that
to which the receiver is connected.
Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada.
Caution The nonmetallic enclosure does not provide grounding between conduit connections. Use grounding type bushings and jumper wires.
Attention Un boîtier nonmétallique n’assure pas la continuité électrique des conduits. Utiliser des manchons ou des fils de accord spécialement conçus pour la
mise á la terre.

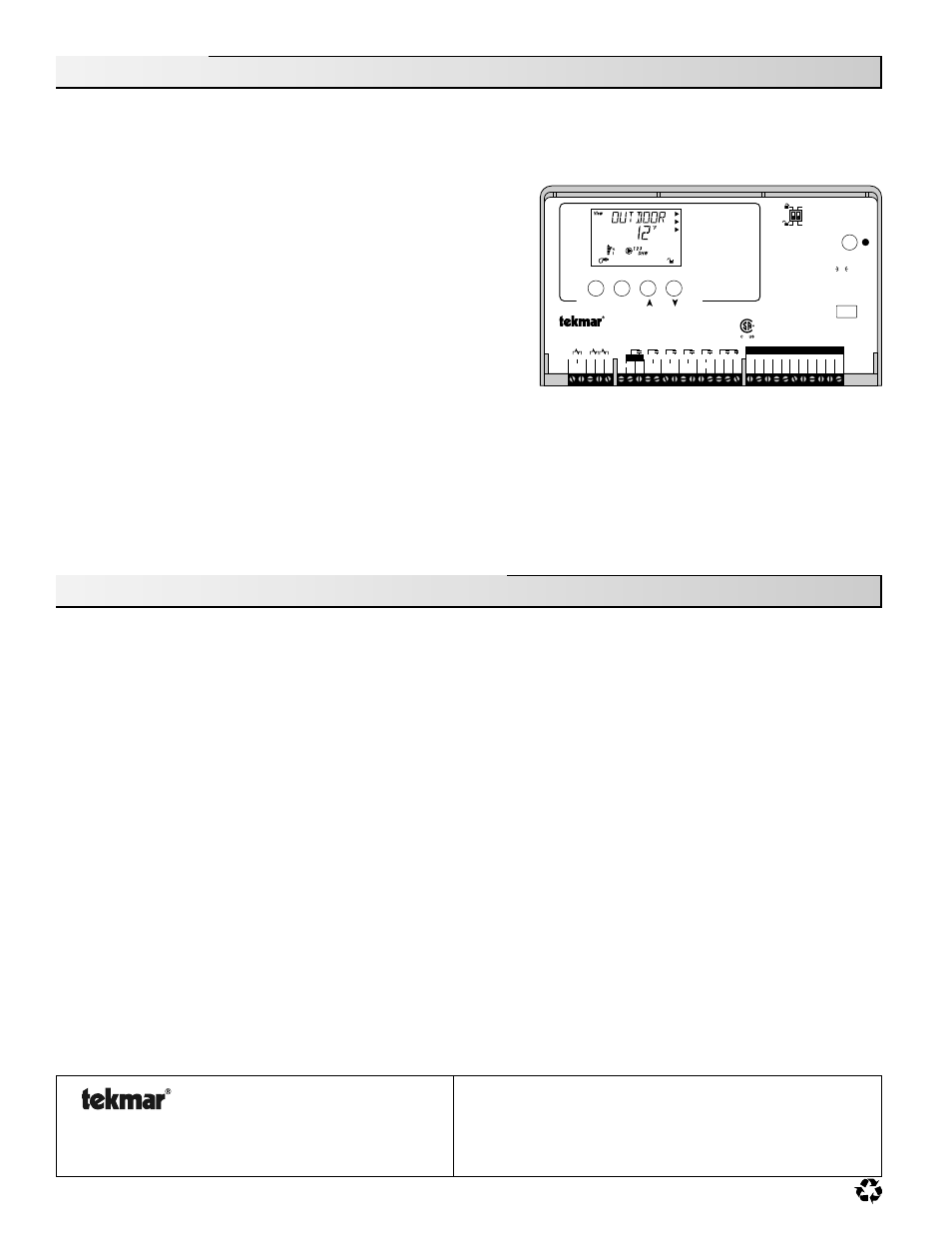

Technical Data
Universal Reset Control 364 Mixing, Boiler & DHW
Literature — D 364, A 364’s, D 070, D 001, U 364, E 021, E 003
Control — Microprocessor PID control; This is not a safety (limit) control
Packaged weight — 3.9 lb. (1760 g), Enclosure A, blue PVC plastic
Dimensions — 6-5/8” H x 7-9/16” W x 2-13/16” D (170 x 193 x 72 mm)
Approvals — CSA C US, meets ICES & FCC regulations for EMI/RFI
Ambient conditions — Indoor use only, 32 to 122°F (0 to 50°C), < 90% RH non-
condensing
Power supply — 120 V ±10% 50/60 Hz 1300 VA
Relays — 240 V (ac) 5 A 1/3 hp, pilot duty 240 VA
Var. Pump — 240 V (ac) 2.4 A 1/6 hp, fuse T2.5 A 250 V
Demands — 20 to 260 V (ac) 2 VA
Sensors included — NTC thermistor, 10 k Ω @ 77°F (25°C ±0.2°C) ß=3892
Outdoor Sensor 070 and 2 of Universal Sensor 071
Optional devices — tekmar type #: 039, 040, 071, 072, 073, 076, 077, 078, 079, 367,
368, 369
1
Mix
Demand
2 3
Boil
Dem
4
Com
Dem
5
Setp/
DHW
6
Power
N
7
L
8
Prim
P1
9
Boil Sys
Pmp P2 Mix Sys
Pmp P3 DHW
Pmp/Vlv
10 11 12 13 14 15
Boiler
16 17
Pwr
Mix
18
Opn
19
Cls/
Var
Mix Demand
Boiler Demand
DHW Demand
Setpoint Demand
WWSD
Min / Max
Melting
Universal Reset Control 364
Mixing, Boiler & DHW 158033
Snow Melting
Mixing Reset
Made in Canada by
tekmar Control Systems Ltd.
tektra 928-01
For maximum heat,
press and hold Test
button for 3 seconds.
not testing
testing
testing paused off
red
red
Signal wiring must be rated at least 300 V.
Power 120 V ± 10% 50/60 Hz 1300 VA
Relays 240 V (ac) 5 A 1/3 hp, pilot duty 240 VA
Var. Pump 240 V (ac) 2.4 A 1/6 hp, fuse T2.5 A 250 V
Demands 20 to 260 V (ac) 2 VA
Menu Item
Test
H1 2 1 0B
20
Com
21
Mix
10K
22
Mix
Ret
23
Mix
Sup
24
Com
25
Boil
Zo In
26
Boil
27
Com
28
DHW
29
Out
30
tN2
Do not apply power
