tekmar 360 Mixing Control User Manual

Page 17

17 of 20

The Mixing Control 360 has a built-in test routine which is used to test
the main control functions. The 360 continually monitors the sensors,
and displays an error message whenever a fault is found. See the fol-
lowing pages for a list of the 360’s error messages and possible causes.
When the Test button is pressed, the test light is turned on. The indi-
vidual outputs and relays are tested in the following test sequence.

TEST SEQUENCE

Each step in the test sequence lasts 10 seconds.

During the test routine, the test sequence may be paused by pressing the Test button. Only if there is a mixing demand can the
control be paused in a step. If the Test button is not pressed again for 5 minutes while the test sequence is paused, the control
exits the entire test routine. If the test sequence is paused, the Test button can be pressed again to advance to the next step. This
can also be used to rapidly advance through the test sequence. To reach the desired step, repeatedly press and release the Test
button until the appropriate device and segment in the display turn on.

Step 1

- The mixing valve is run fully open.

Step 2

- The mixing valve is run fully closed, and then the system pump (Sys Pmp) is turned on.

Step 3

- The Boiler contact is turned on for 10 seconds. After 10 seconds, the Boiler and Sys Pmp contacts are shut off.

Step 4

- After the test sequence is completed, the control resumes its normal operation.

Test

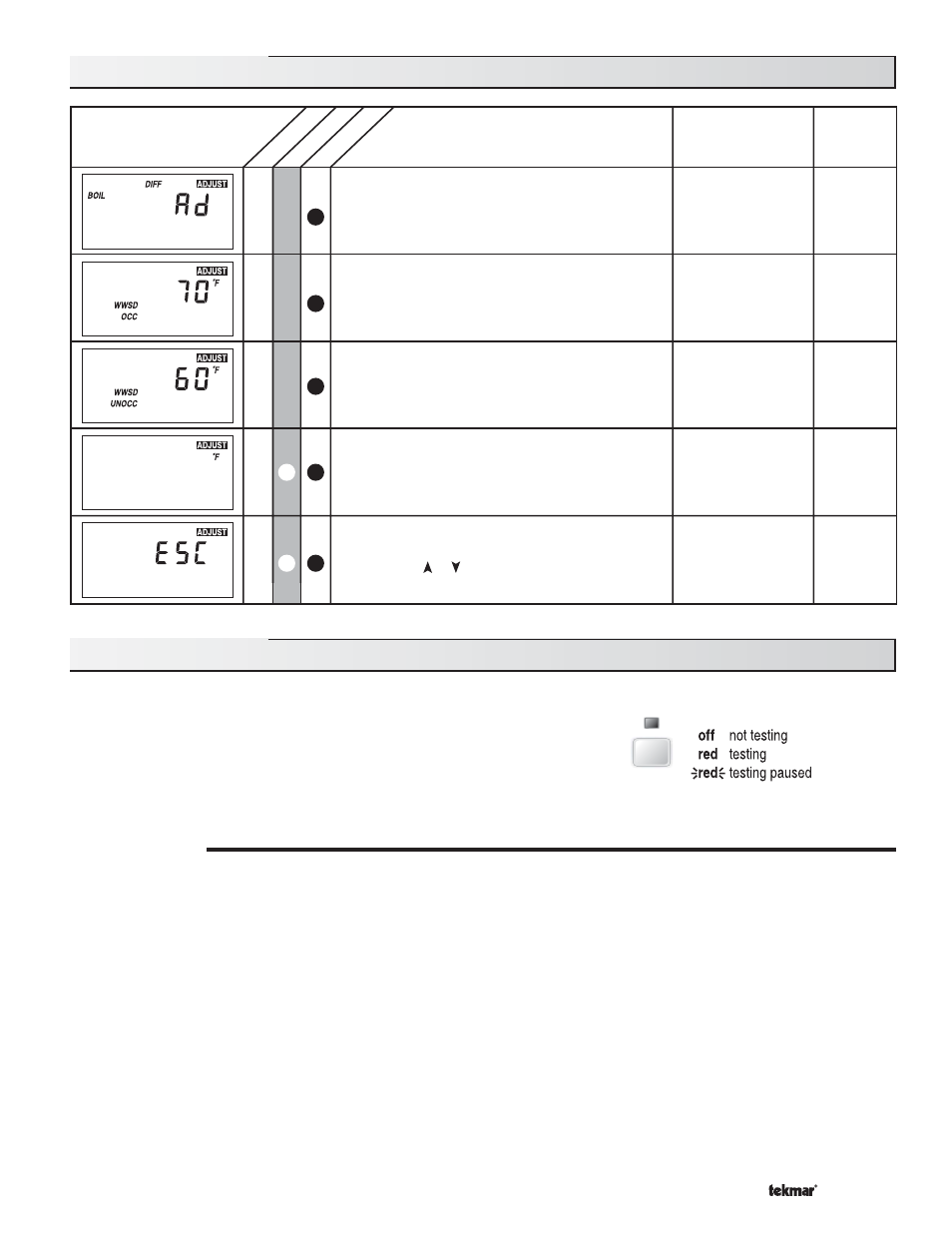

Adjust Menu (2 of 2)

SectionInstallerAd

vanced

Range

Actual
Setting

Description

Display

The differential that the control is to use when
it is operating the boiler.
(Boiler Sensor DIP switch = Supply AND
Boiler sensor is present)

Ad, 2 to 42°F

(Ad, -17 to 6°C)

The system's warm weather shut down during
the occupied (Day) period.

35 to 100°F, OFF
(2 to 38°C, OFF)

The system's warm weather shut down during
the unoccupied (Night) period.

35 to 100°F, OFF
(2 to 38°C, OFF)

The units of measure that all of the temperatures
are to be displayed in the control.

°F, °C

This item exits the ADJUST menu by pressing
either the or button.

Testing the Control
