2. System Information
Device Status

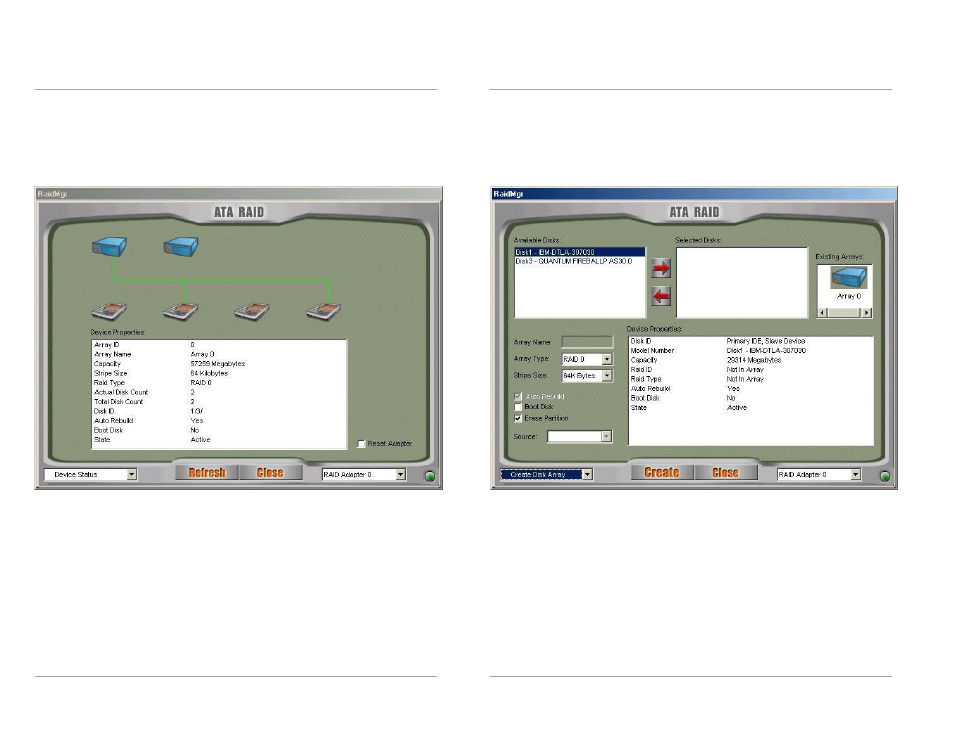

Click the “Start Menu” at the left bottom on the RAID Manager control panel then
choose “Device Status” to show the system information.
l If the disk arrays exist, they will be listed at the first row.
l If the physical disks exist, they will be listed at the second row.
l Click the disk array or physical disk icons to list the device properties.
l Reset Adapter: Check to reset adapter.
l Click “Refresh” to refresh system information.
l Remarks:
n If only slave disks are hot swapped, make sure that “Reset Adapter” is
checked to get system information correctly.
RAIDExpress 133 RAID USER MANUAL
82
3. Configuration
Create Disk Array
Click the “Start Menu” at the left bottom on the RAID Manager control panel then
choose “Create Disk Array” to create a disk array.
l Array Type: RAID 0, RAID 1, RAID 0+1, JBOD.
l Array Name: Assigned by RAID Manager.
l Block Size: Virtual block size for RAID 0 or RAID 0+1.
l Auto Rebuild: Check to rebuild by hardware automatically.
l Boot Disk: Check to boot from this array.
l Erase Partition: Check to erase partition table.
l Source: Source disk.
