RAIDExpress 133 RAID USER MANUAL
41

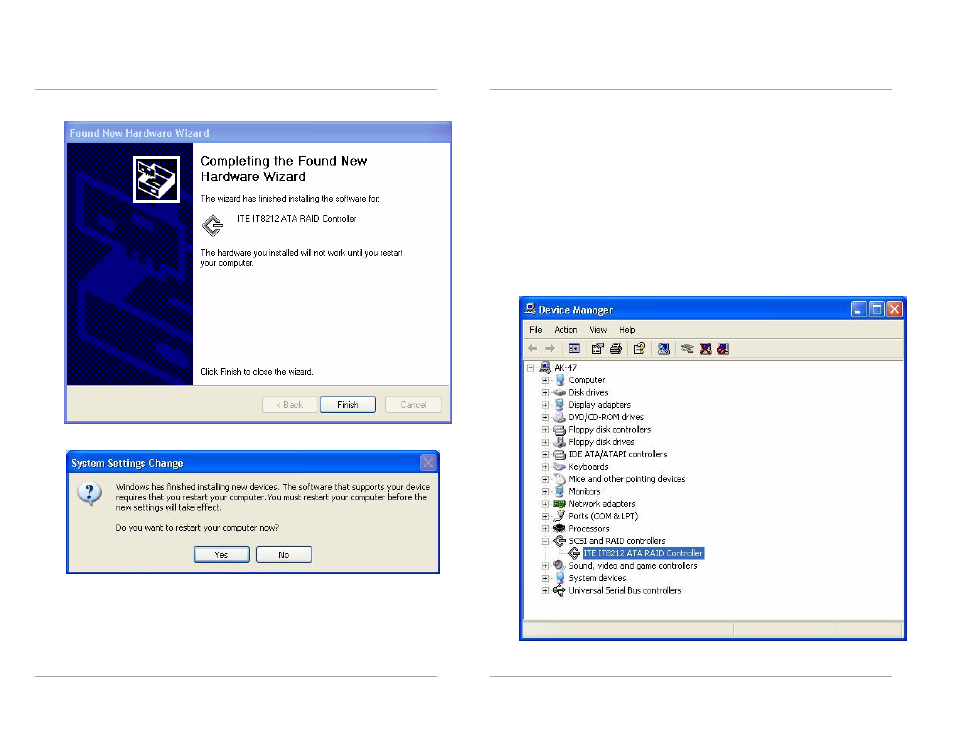

4. The driver installation has finished. Press “Finish” to continue.
5. Follow the instruction to restart the computer then the driver will take effect.
RAIDExpress 133 RAID USER MANUAL
42
Verify Installation
Follow the previous section to install the driver. After the system restarts, you can do
the following steps to check if the driver has been installed successfully.
1. Right-click My Computer icon on Desktop. Select the Properties option from
the form.
2. Select the Hardware tab from the System Properties window then click the
Device Manager button on the panel. If RAIDExpress 133 ATA RAID
Controller device is shown below the SCSI and RAID controllers item (see
the following figure), it means that the driver has been installed successfully.
