8 E-flite Piper Pawnee ARF Assembly Manual
Landing Gear Assembly
Required Parts
Landing gear Landing gear cover (2)
Axle w/nut (2) Instrument panel
Pilot seat 2mm x 6mm machine screw (4)
Landing gear cover (2) 5/64-inch wheel collar w/setscrew
Vertical Fin Rudder
3/4-inch (19mm) tailwheel
2mm x 15mm sheet metal screw (8)
5/32-inch wheel collar w/setscrew (2)
2
1 /
2
-inch (63mm) main wheel w/hubs (2)
Required Tools and Adhesives
#1 Phillips screwdriver Hex wrench: 1.5mm
Threadlock File
Medium CA Adjustable wrench (2)
Note: We will assemble the landing gear and set them
aside until needed. This will reduce the number of parts
to track, yet keep the fuselage light to install the rudder,
elevator and radio system.

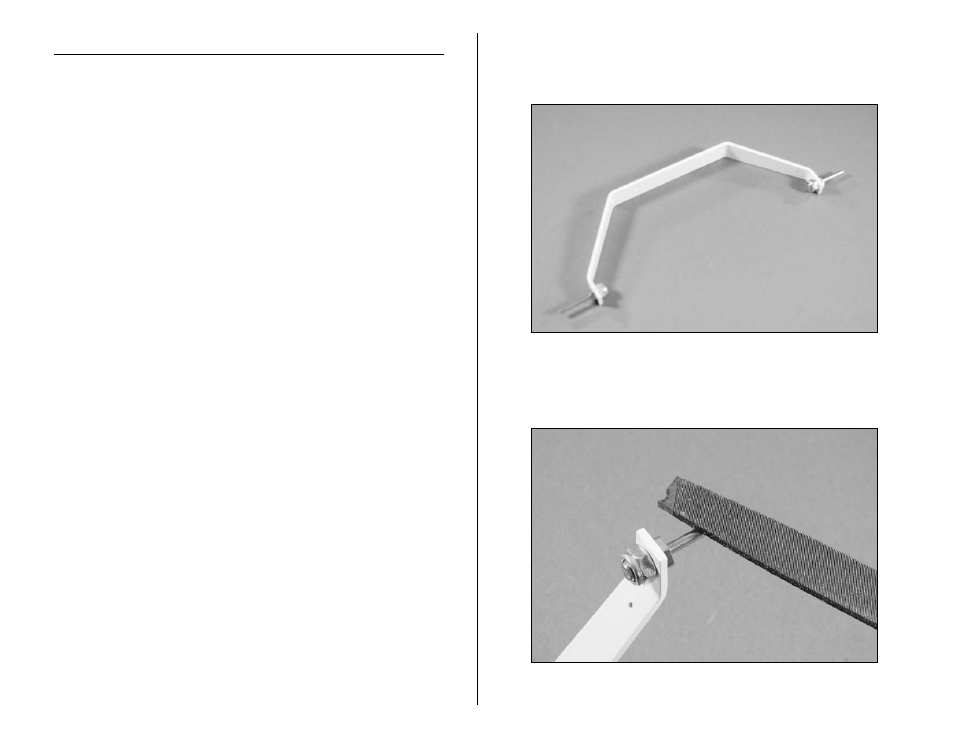

 1. Locate the two axles and axle nuts, as well as the
landing gear. Use two adjustable wrenches to secure the
axles to the landing gear.
 2. Use a file to create a flat on the bottom of the landing
gear wire. This provides a place to tighten the screws for
the wheel collars, making them more secure on the wire.
