12 E-flite Piper Pawnee ARF Assembly Manual
Aileron Servo Installation
Required Parts
Wing panels (right and left)
Servo w/hardware (2)
Servo cover (right and left)
6-inch (152) servo extension (2)
2mm x 15mm machine screw (4)
2mm x 8mm self-tapping screw (8)
Control horn w/backplate (2)
Clevis (2)
Clevis retainer (2)
4-inch (102mm) pushrod wire (2)
6-inch (152mm) servo extension (2)
Pushrod connector (2)
Servo mounting block
5/8 x 3/8 x 3/8-inch (16 x 9.5 x 9.5mm) (4)
Required Tools and Adhesives
6-minute epoxy Pencil
Phillips screwdriver: #1 Felt-tipped pen
String Side cutters
Pin drill Pliers
Drill Thin CA
Drill bit: 1/16-inch (1.5mm), 5/64-inch (2mm)
 1. Plug the aileron servos into the radio system and make
sure they operate and are centered as well.

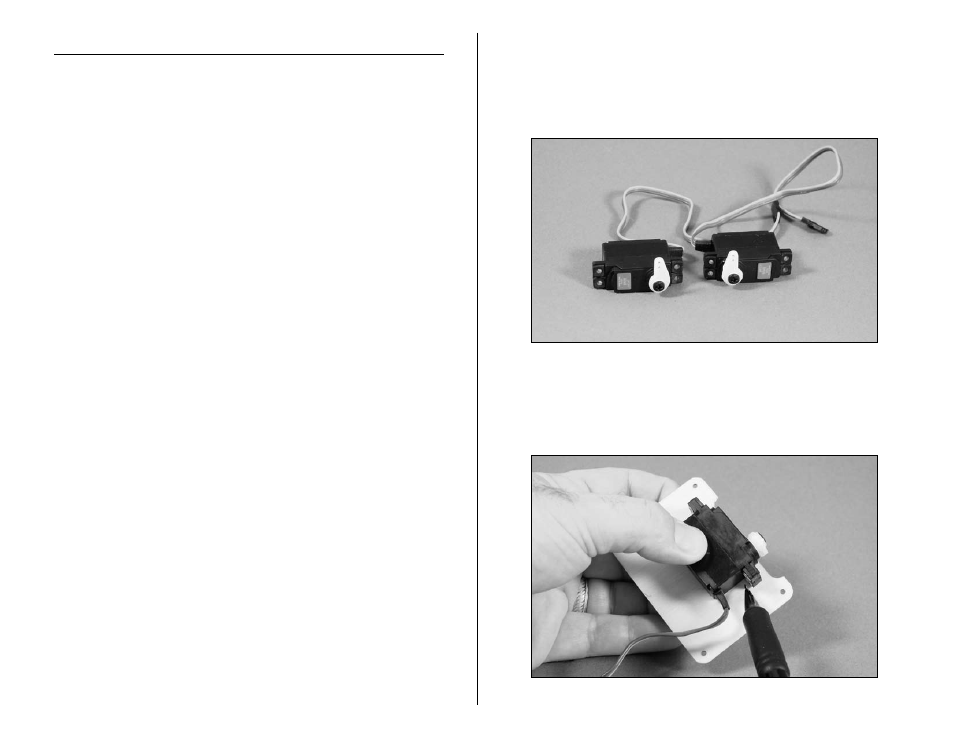

 2. Prepare the aileron servos for installation by removing
any unnecessary arms from the servo horns as shown.
Install any grommets or brass eyelets at this time as well.
The servos will have the arms installed opposite of each
other as shown in the photo.
 3. Position the aileron servo on the servo cover so the
arm is centered lengthwise in the cutout. The arm will
align with the edge of the servo cover as well. Use a
pencil to mark the position of the servo on the cover.
