E-flite Piper Pawnee 15e ARF User Manual

Page 27

E-flite Piper Pawnee ARF Assembly Manual

Note: You can use a soldering iron instead of a knife.

This will eliminate the chances of cutting into the wood.



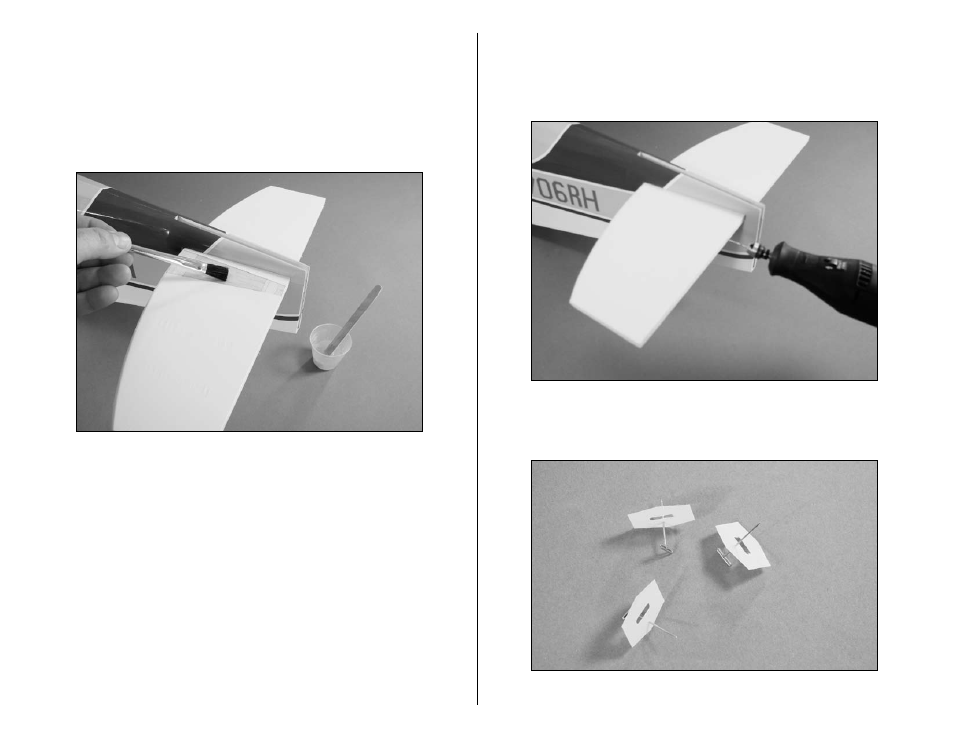

8. Apply a thin coat of 30-minute epoxy to the exposed

wood on the top and bottom of the stabilizer. Slide the

stabilizer back into the fuselage and clean up any excess

epoxy using a paper towel and rubbing alcohol.



9. Use a rotary tool and a 1/16-inch (1.5mm) drill bit

to drill a hole in the center of each hinge slot of both the

stabilizer and elevators. This provides a tunnel for the CA

to wick into, penetrating the hinge.



10. Locate three CA hinges. Place a T-pin in the center

of each hinge.
