E-flite Piper Pawnee 15e ARF User Manual
Page 35
35
E-flite Piper Pawnee ARF Assembly Manual

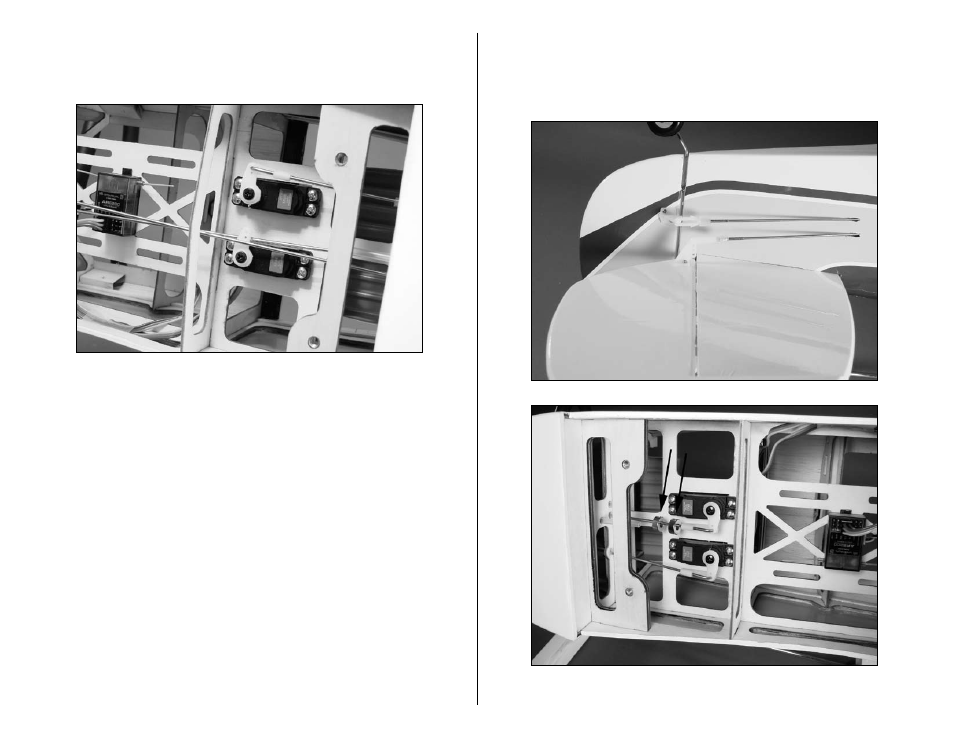

17. Use a pushrod connector to secure the pushrod
wire to the servo arm. Use side cutters to remove any
excess wire.
18. Repeat Steps 10 through 17 to install the first elevator
pushrod. Before connecting the pushrod to the servo arm,
make sure to slide two 5/32-inch wheel collars onto the
pushrod wire inside the fuselage as shown.
