E-flite Piper Pawnee 15e ARF User Manual
Page 21
21
E-flite Piper Pawnee ARF Assembly Manual

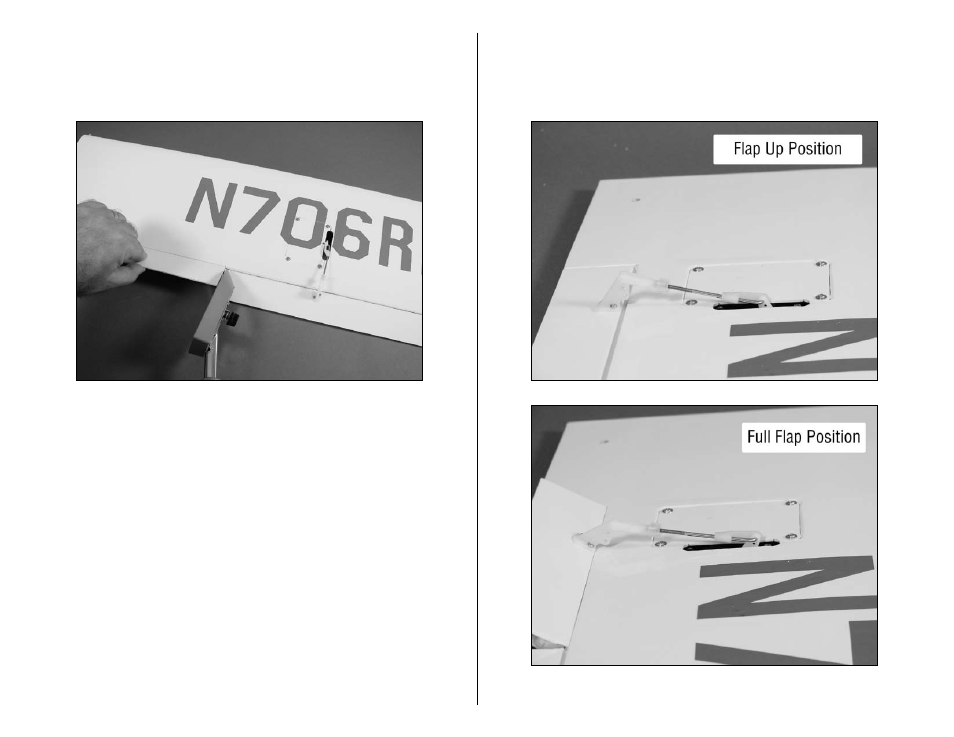

5. Sand the edges of the flap and aileron so they will not
interfere with each other. Use a covering iron and the
material from the opening for the flap servo to beautify
the ends of the flap and aileron.
6. The installation of the flap servo and linkage
follows the exact same procedure as the aileron servos.
Simply follow those steps to install the servo and linkages
as shown.
