E-flite Piper Pawnee 15e ARF - Manual (Page 23)

23 E-flite Piper Pawnee ARF Assembly Manual

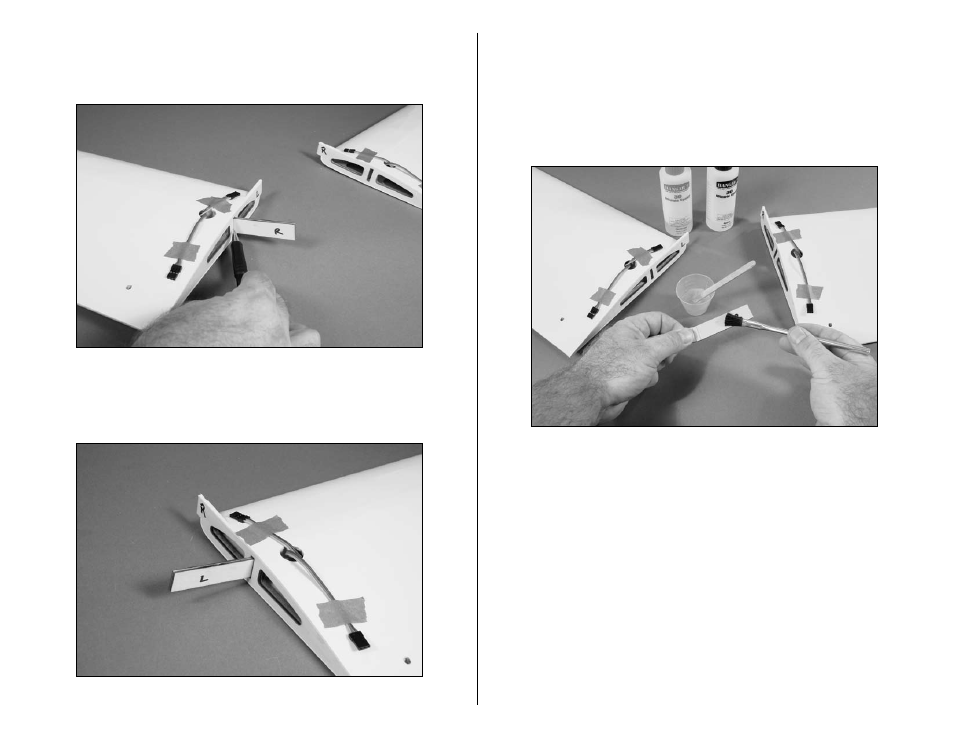

 4. Slide the joiner into one wing panel. You may need to
sand the joiner to get it to fit. Use a pencil to mark the
joiner against the wing.
 5. Slide the joiner into the opposite panel. It should slide
in up to or beyond the line drawn on it in the previous
step. If not, lightly sand the end of the joiner until it does.
Important: It is suggested to make a dry run of the
following steps to make sure they can be completed
before the epoxy starts to set. If the epoxy begins to set
and the joiner is not in position, all the items with epoxy
applied to them may not be salvageable.
 6. Apply epoxy to one half of the wing joiner.
