18 E-flite Piper Pawnee ARF Assembly Manual

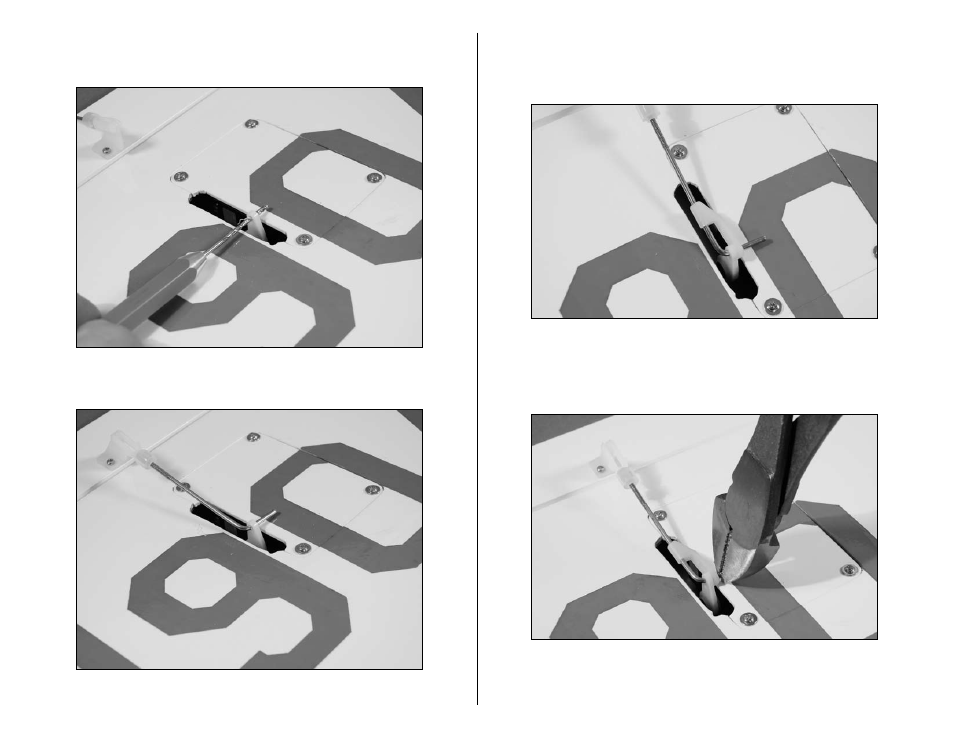

 21. Use a pin drill with a 5/64-inch (2mm) drill bit to
enlarge the outer hole in the servo arm.
 22. Slide the bend through the hole in the servo arm.
 23. Use a pushrod connector to secure the pushrod
wire to the servo arm. Use side cutters to remove
any excess wire.
 24. Use side cutters to trim all but 1/16-inch (1.5mm)
of the wire so it does not interfere with the operation
of the aileron servo.
 25. Repeat Steps 3 through 24 to install the remaining
aileron servo and linkage.
