MatrixPRO • 16x16 and 8x8 HD/SD-SDI Router • User’s Guide

39

4. GUI Installation and Operation

GUI Operation

i~ДЙдбеЦ=q~Ä

Click the Labeling Tab on the MatrixPRO Control application. A sample tab is shown
below:

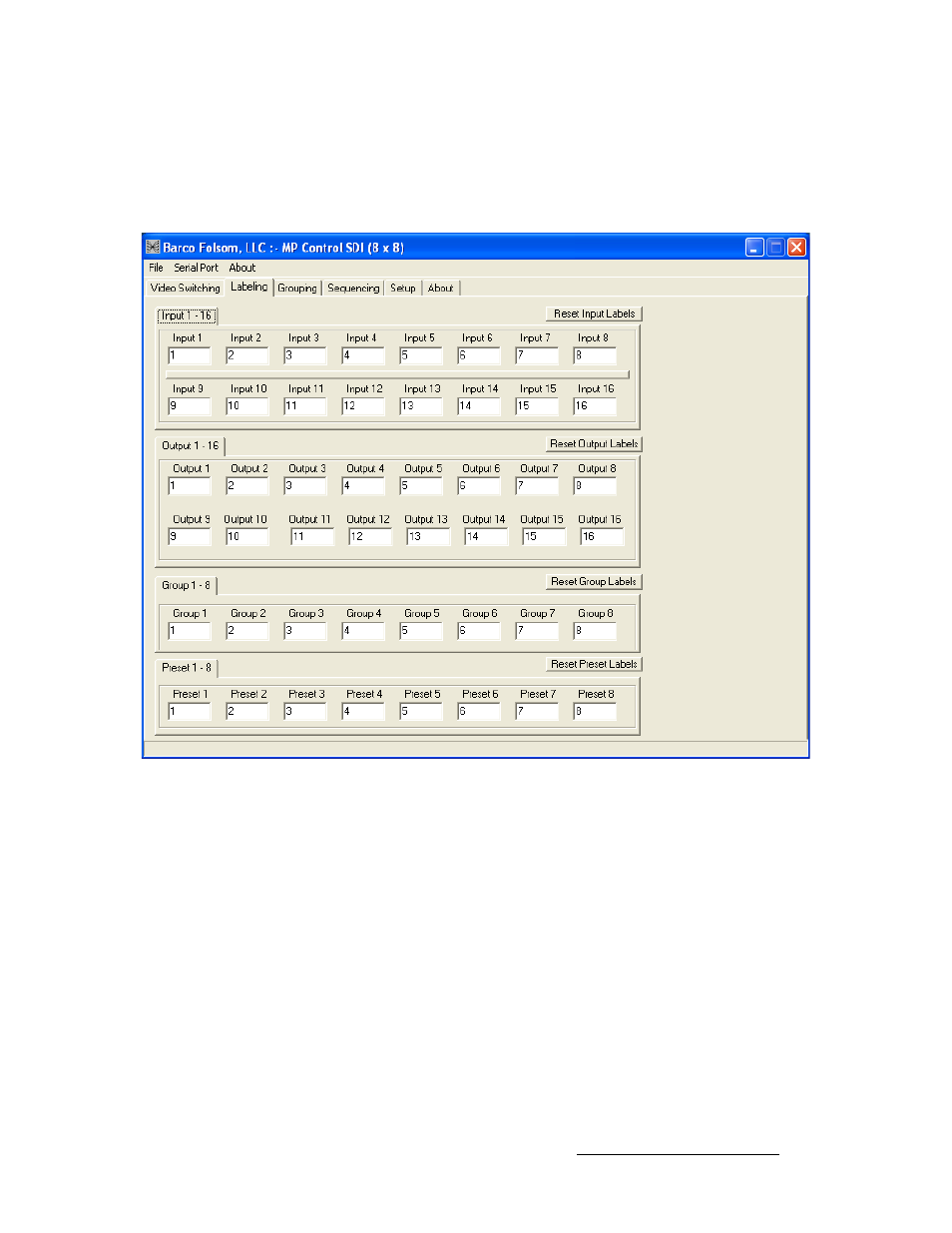

Figure 4-6. Labeling Tab (sample)

This tab allows the user to assign a name to any input and output channel. The names will
appear throughout the GUI pages, as an aid to the user. There is a limit of 5 capitalized
characters per label. These can be either letters or numbers, or a mixture of both.
