Overview

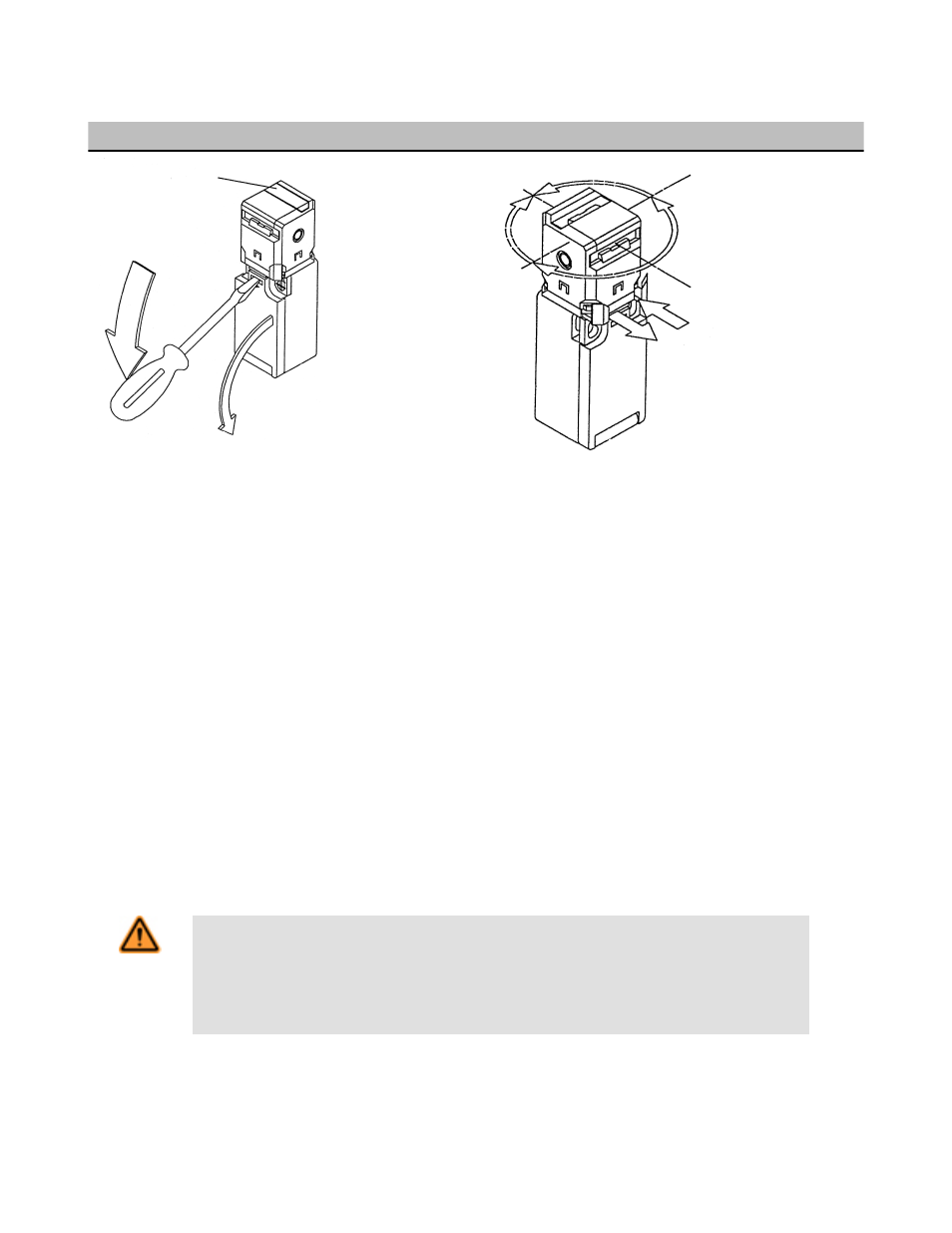

Easy Access

Rotating the Actuator Head

Cover for

Unused Entry

90°

1. Pull holding clamp
2. Turn actuator head
3. Push holding clamp

270°

180°

0°

The wiring chamber is accessed via a hinged door. Simply insert a
flat-blade screwdriver, as shown, and pry gently down to open.

The actuator head may be rotated in 90° increments to create
eight possible actuator engagement locations. To rotate the head,
pull the holding clamp forward, rotate the head to the desired posi-
tion, and push the holding clamp back in to lock.

Mechanical Installation

All mounting hardware is supplied by the user. Fasteners must be of sufficient strength to guard against breakage. Use of permanent
fasteners or locking hardware is recommended to prevent loosening or displacement of the actuator and the switch body. The mounting
holes in the switch body and the actuator accept M5 screws (see

Dimensions

on page 6).

Position the switch, with its actuator fully engaged, in the mounting location and mark the mounting holes. Drill the required holes and
fasten the switch body and the actuator in place. After the mounting hardware is secure, check the actuator-switch engagement for mis-
alignment and binding.
IMPORTANT:

1. A safety switch must be installed in a manner which discourages tampering or defeat. Mount each switch to prevent bypassing of

the switching function at the terminal chamber.

2. A switch and its actuator must never be used as a mechanical stop.

Electrical Installation

WARNING: Hazard Point
It must not be possible for personnel to reach any hazard point through an opened guard (or any
opening) before hazardous machine motion has completely stopped.
Please reference OSHA CFR 1910.217 and ANSI B11 standards for information on determining safety
distances and safe opening sizes for your guarding devices.
