Figure 6, Mounting drying flasks and tubings – Metrohm 885 Compact Oven SC User Manual
Page 24

3.5 Assembling the drying flasks
■■■■■■■■■■■■■■■■■■■■■■
14
■■■■■■■■
885 Compact Oven SC
Note
If drying flask covers or filter tubes are not sufficiently tightly
screwed on, then this will prevent a precise, regular gas flow. The
error message "Flow rate error" will appear as a rule when there
are leaks in the threaded connections.
1
2
2
3
3
4
1
6.1805.080
6.1805.080
6.1805.010

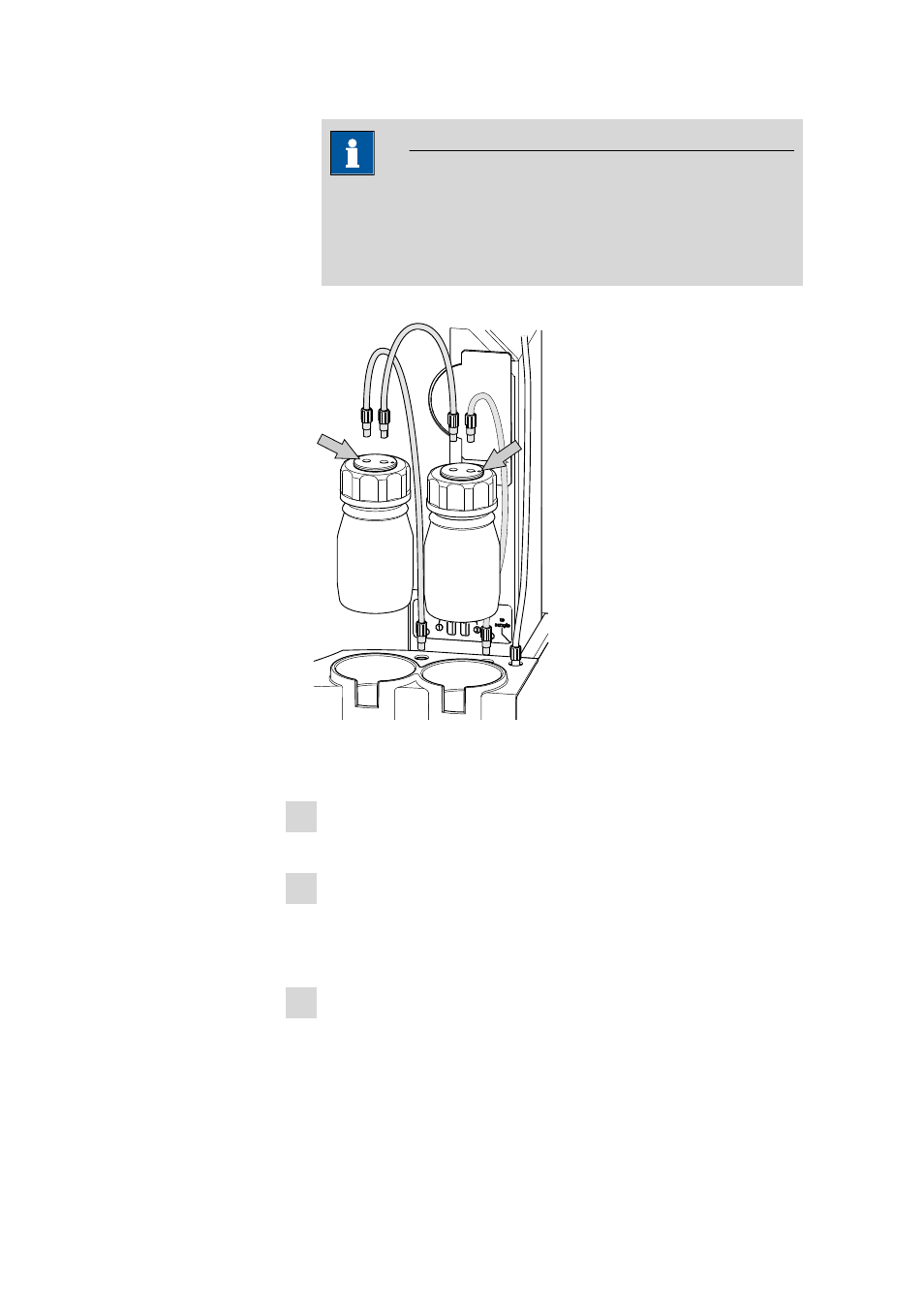

Figure 6
Mounting drying flasks and tubings
Mount the FEP tubings as follows:
1 Insert the two drying flasks that have been prepared into the holders,
see figure.
2 Screw one 6.1805.080 FEP tubing (25 cm in length) to the gas outlet
(at the rear on the left, labeled 1). Screw the other tubing end on the
front drying flask to the M6 connector without point marking (see
left-hand arrow).
3 Screw the second 6.1805.080 FEP tubing (25 cm in length) to the
gas inlet (at the rear on the right, labeled 2). Screw the other tubing
end on the rear drying flask to the M6 connector with point marking
(see right-hand arrow).
