3 Robotic Flexible Soliprep 2.815.2110
815 Robotic Soliprep
￭￭￭￭￭￭￭￭ 69
6.2067.030
1
2
3

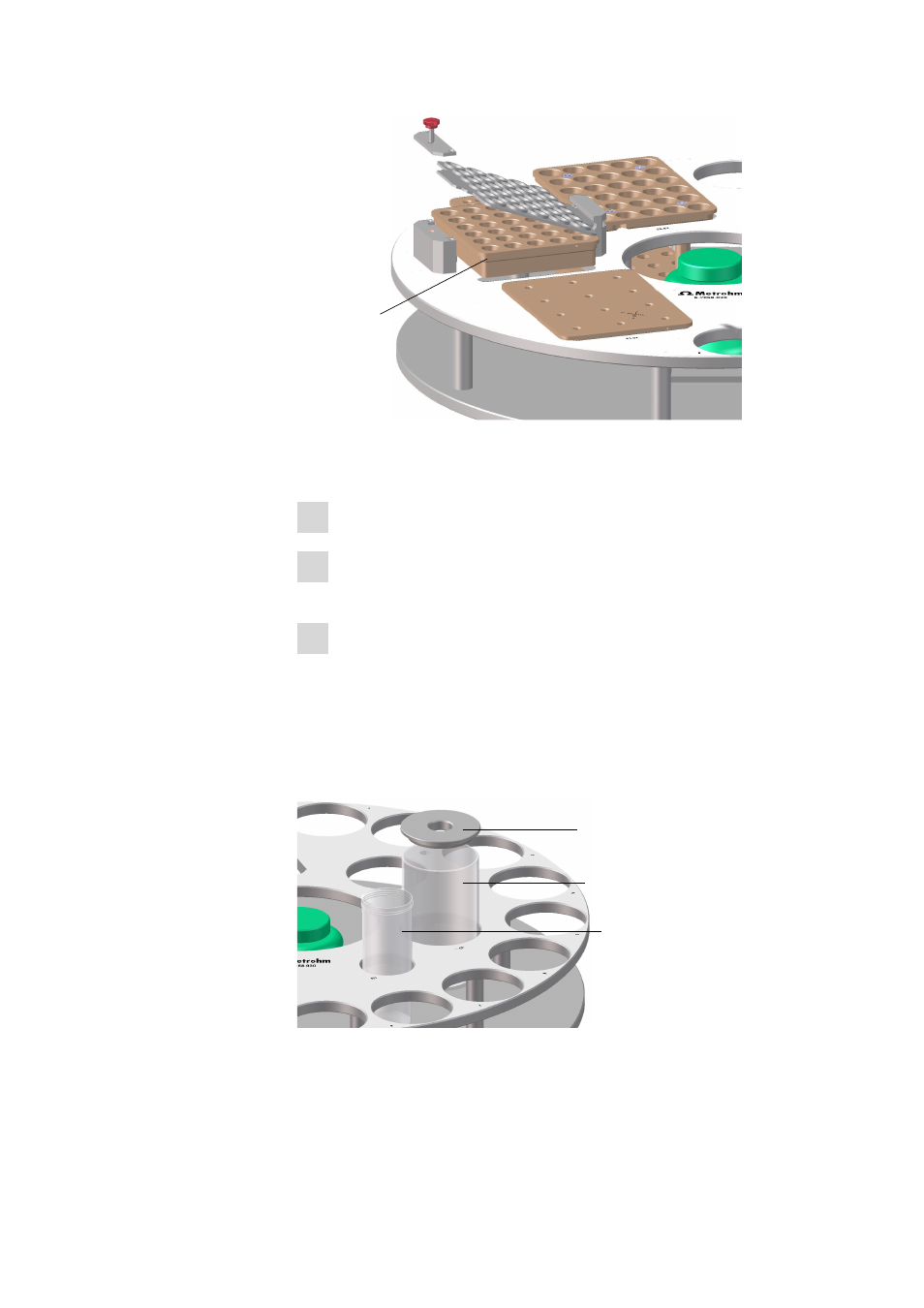

The insert for sample vials (Type ND11, for 1.5 mL volumes) is installed as
follows:
1 Loosen the red knurled screw and the fixing platelet.
2 Raise the retaining plate with the centering aid on the left-hand side
and pull it out of the holder.
3 Place the insert 6.2067.030 in the opening. Observe the recess while
doing so.
The retaining plate can then be guided back into the holder and fas-
tened with the fixing platelet and the knurled screw.
Two positions on the sample rack are reserved for rinsing and waste beak-
ers.
6.2037.070
6.1432.320
6.1459.307
The lid with the hole belongs on the waste beaker, into which a prelimi-
nary filtrate of the sample solution is to be disposed of when membrane
filters are used. The filter can be placed on the hole in the lid with the
