2.2 Setting lift positions
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
34 ￭￭￭￭￭￭￭￭
815 Robotic Soliprep

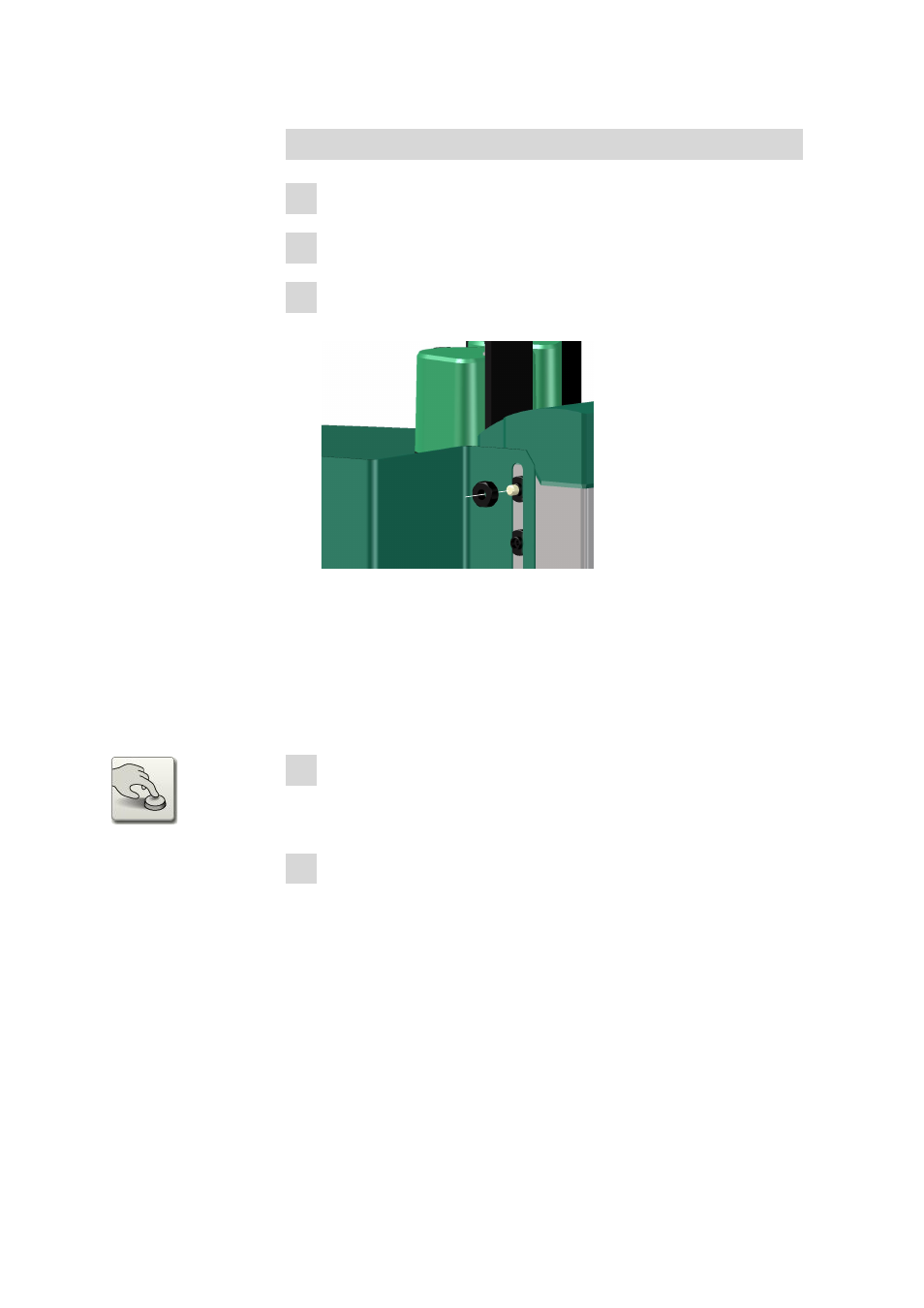

Mounting the safety shield
1 Unscrew the black nuts on both sides of tower 1.
2 Pull the green 6.2751.100 safety shield over tower 1 from above.
3 Tighten the two nuts to secure the safety shield in place as shown in
the following illustration.
3
2.2 Setting lift positions
Some lift positions must be adjusted precisely in order to ensure a perfect
automation sequence. Use the manual control in tiamo™ for this pur-
pose. The following section describes how you can approach the individ-
ual positions and adjust them as needed.
1 Opening the manual control
Click on the hand symbol in the tiamo™ toolbar or select
Tools
▶ Manual control in the main menu.
2 In the left-hand window, click on the Tower 1 item under 815_1
(815 Robotic … and then select the Move tab.
