2.1 Installation
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
22 ￭￭￭￭￭￭￭￭
815 Robotic Soliprep
2 Fasten the enclosed tubing to the drainage nipple on the drip pan
and guide the free end of the tubing into a drain or a waste con-
tainer.

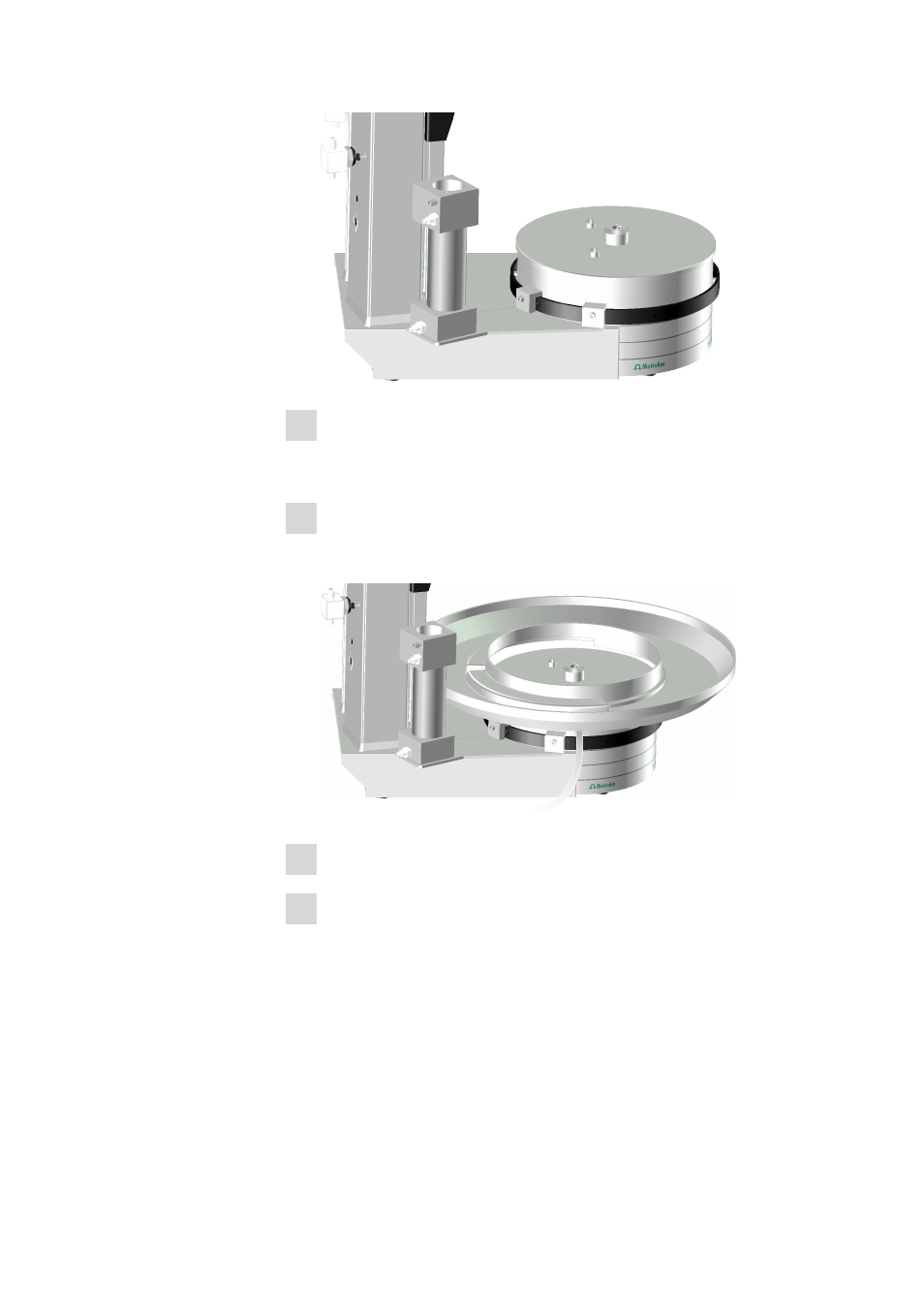

3 Place the drip pan over the stirrer rail. The correct alignment of the
drip pan can be seen from the following illustration. Correct the posi-
tion of the washing station slightly as needed.
4 Reattach the sample rack.
5 Fasten the 6.1820.020 screw connector with the M6 connector to
the upper, larger tubing connector of the washing station.
