3 Robotic Flexible Soliprep 2.815.2110
815 Robotic Soliprep
￭￭￭￭￭￭￭￭ 63
3.1.13 Setting up the rinsing tubing

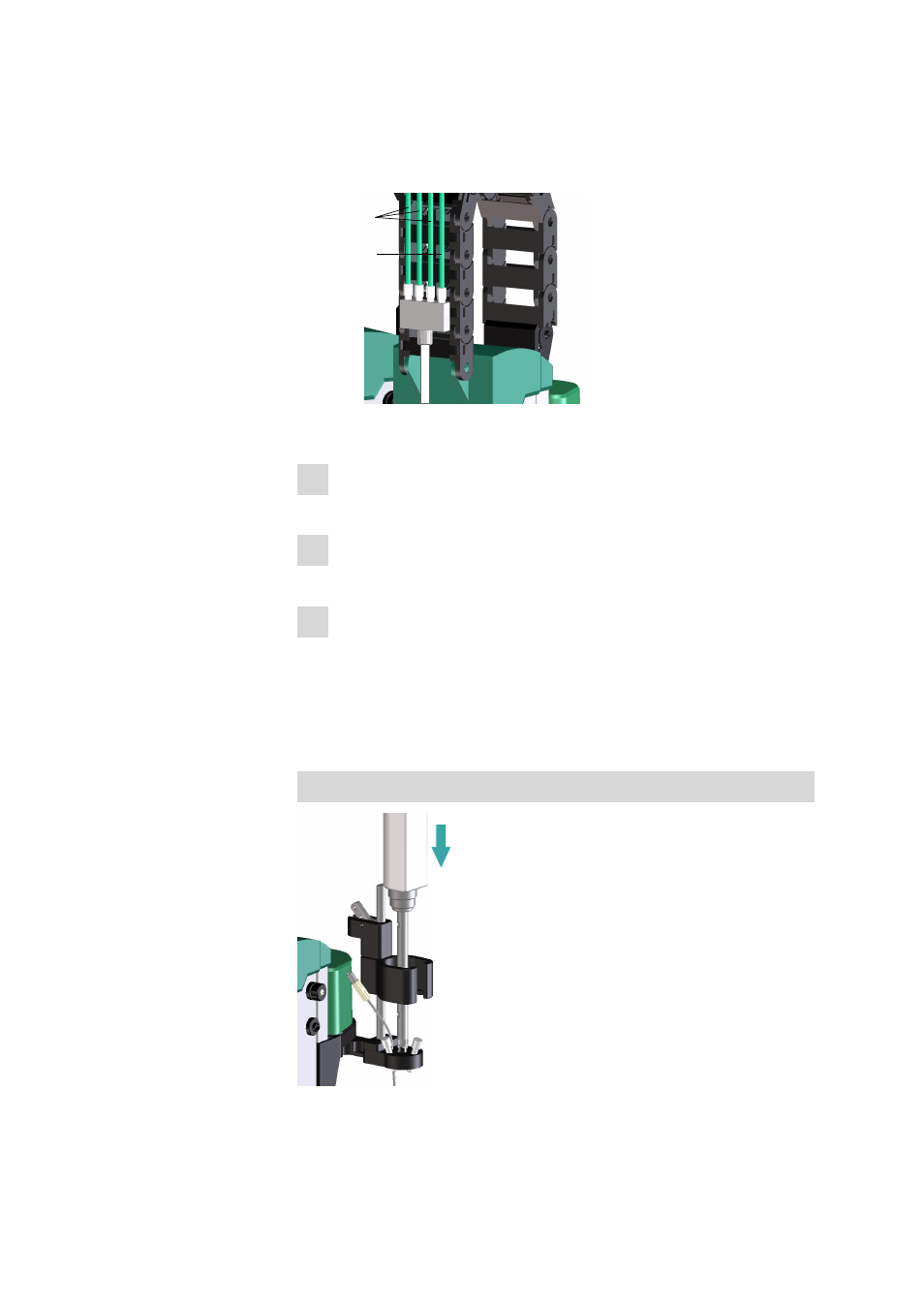

Rinsing tubing at tower 2
6.1805.060
6.1805.120
1 2
Install the tubing for rinsing the rinsing station as follows:
1 Connect the green inlet tubing (6.1805.120) of the rinsing station to
one of the four connectors on the tower 2 distributor.
2 Connect three pieces of 6.1805.060 tubing (60 cm) to the tower 2
distributor.
3 Connect a 6.1812.000 PTFE tubing to the tower 2 valve. Connect the
other end of the tubing to a canister with rinsing liquid (e.g. water).
3.1.14 Assembling and mounting the Polytron ® drive
Please consult the Polytron user manual for details how to mount the
aggregate to the Polytron PT 1300 D.
Mounting the Polytron
1
2
