4.1 Installation
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
98 ￭￭￭￭￭￭￭￭
815 Robotic Soliprep
5 Fasten the 6.2058.040 robotic arm reinforcement to the right-hand
side; in doing so, you also fix the Swing Head in place. For this pur-
pose, use the two screws supplied with the robotic arm reinforce-
ment. These are longer than the ones previously used.
Initializing the rack and the Swing Heads
Both Swing Heads must be moved to the starting position for the mount-
ing of the robotic arms.

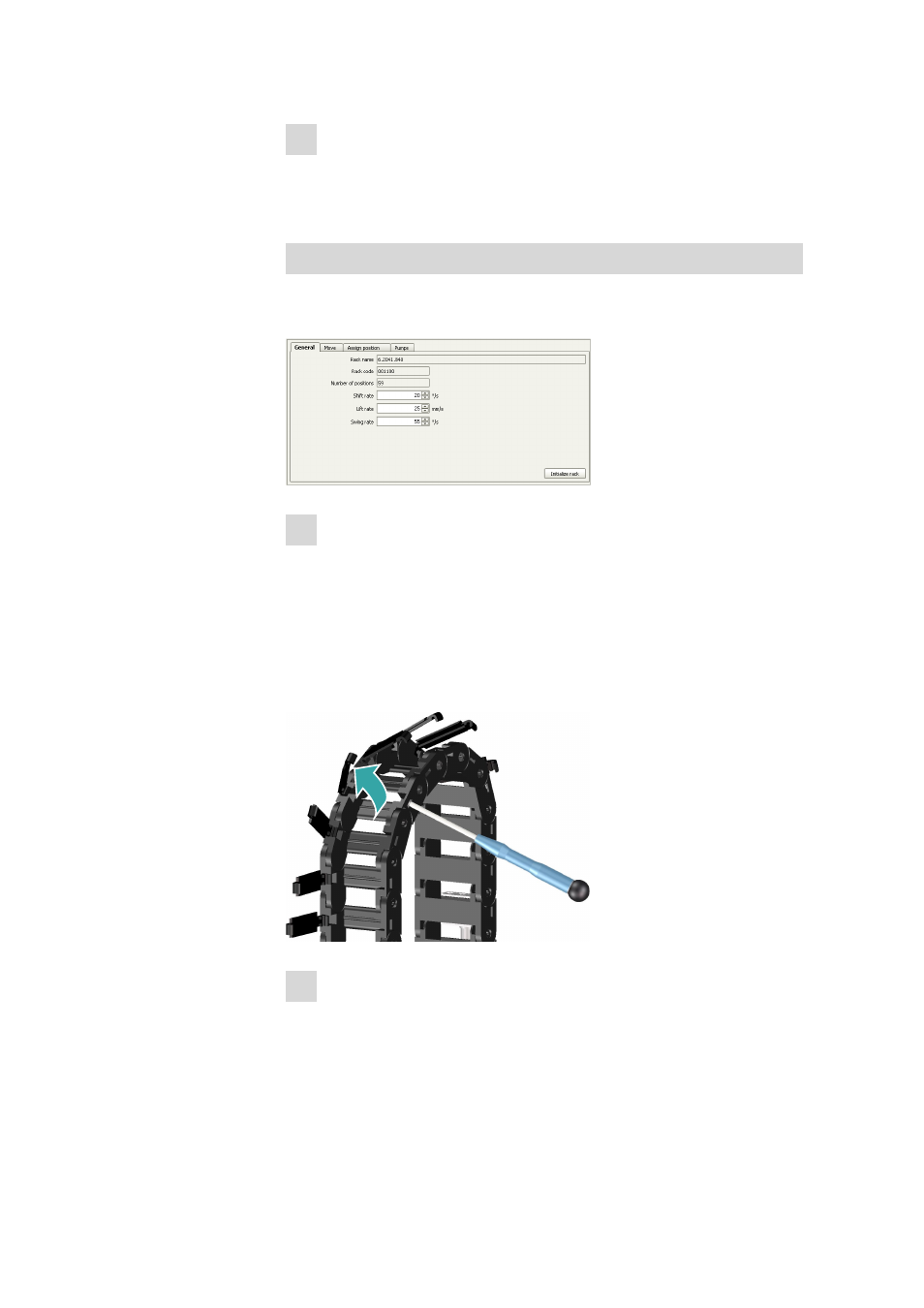

1 Click on [Initialize rack] on the General tab.
Both lifts are moved upward. The Swing Heads are now in starting
position.
4.1.7 Opening the guide chain
Tubings and cables can be placed into the guide chain of the towers.
You can open the individual chain links with a screwdriver as follows.
1 Opening the guide chain
￭ Insert a screwdriver into the groove located on the side of a chain
link.
￭ Loosen the clip with a forceful leverage movement.
￭ Pull the clip out of the chain by hand.
￭ Repeat the above actions for each chain link.
