©2013-2014 DJI. All Rights Reserved. 52

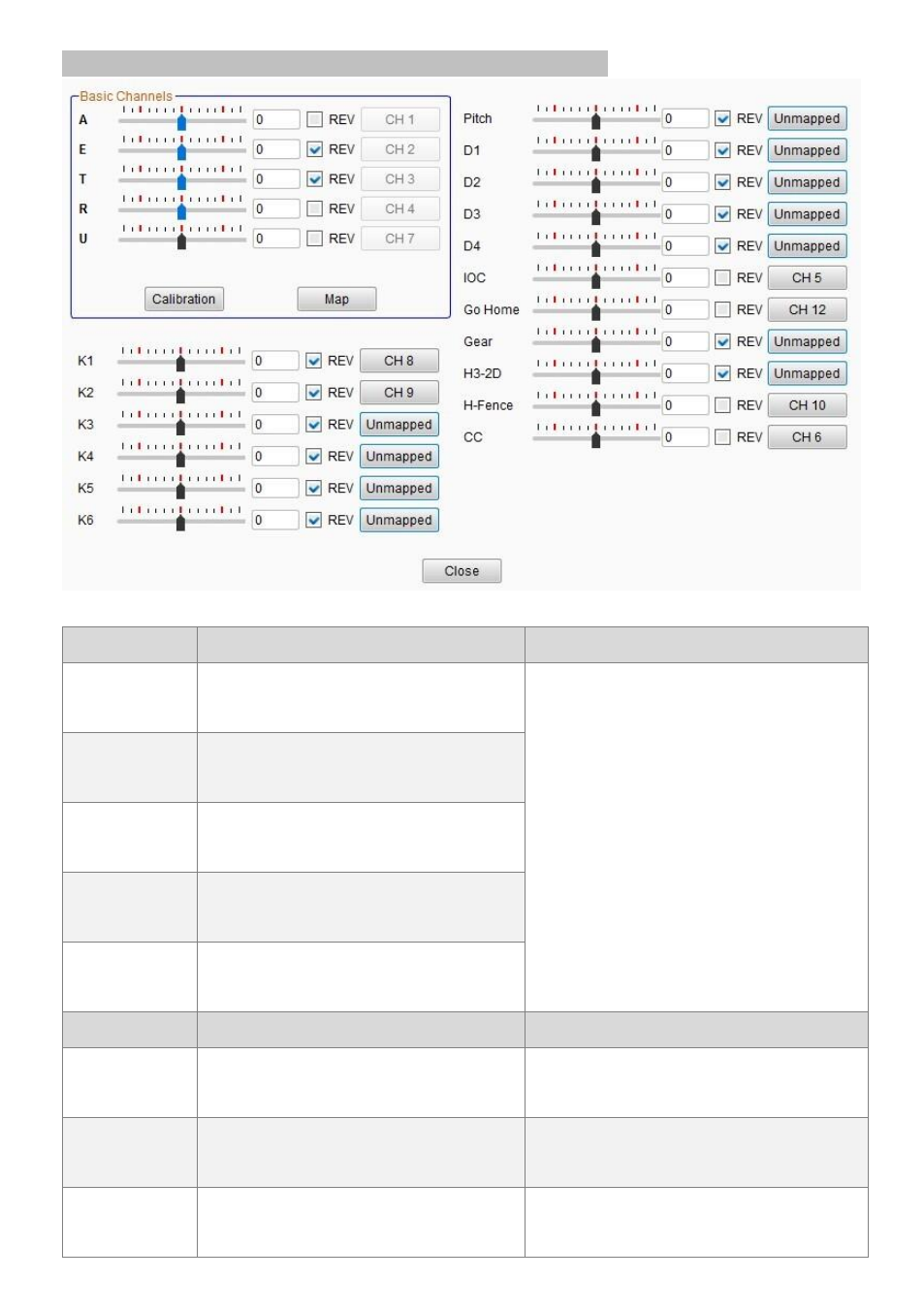

Channel Mapping Instructions for PC Assistant Software
Basic Channel Default Settings Usage Descriptions
A Roll Control of the Controller Unit, mapped
to the Channel 1 of Receiver During Assistant Software usage, please click
the “Calibration” button, to calibrate the
Transmitter sticks travel. During calibrating,
make sure to operate strictly following the
prompts; otherwise may lead to calibration
failure.
Click the “Map” button, then you can re-do
mapping for A/E/T/R/U.
E Pitch Control of the Controller Unit,
mapped to the Channel2 of Receiver
T Throttle Control of the Controller Unit,
mapped to the Channel3 of Receiver
R Yaw Control of the Controller Unit, mapped
to the Channel4 of Receiver
U Control Mode Switch of the Controller Unit,
mapped to the Channel7 of Receiver
Others Default Settings Usage Descriptions
K1~K6 Remote Gains Adjustment of the Controller
Unit, unmapped.
Click “Unmapped” button to map K1~K6 to the
channels of Receiver.
Pitch Gimbal Pitch Control of the Controller Unit,
unmapped.
Click “Unmapped” button to map Pitch to a
Receiver channel for the gimbal servo control.
D1~D4 Direct Channels (The corresponding ports
are F1~F4 on the Controller Unit) of
Click “Unmapped” button to map D1~D4 to
the Receiver channels. If you enable the
