Sensor Docking Station
Pyrometer
This analog sensor will measure exhaust gas temperature.
The Bully Dog pyrometer has three important features: (1) the
temperature probe with the top nut, (2) the fitting and (3) the
sensor wires that connect to the Sensor Docking Station.
NOTE: The pyrometer cannot be extended with ordinary wire.
IMPORTANT NOTE: It is possible to accidentally reverse the fitting.
When installing, make sure that the tapered side of the fitting is
threaded into the exhaust system and the straight side of the fitting is
connected to the top nut on the temperature probe.

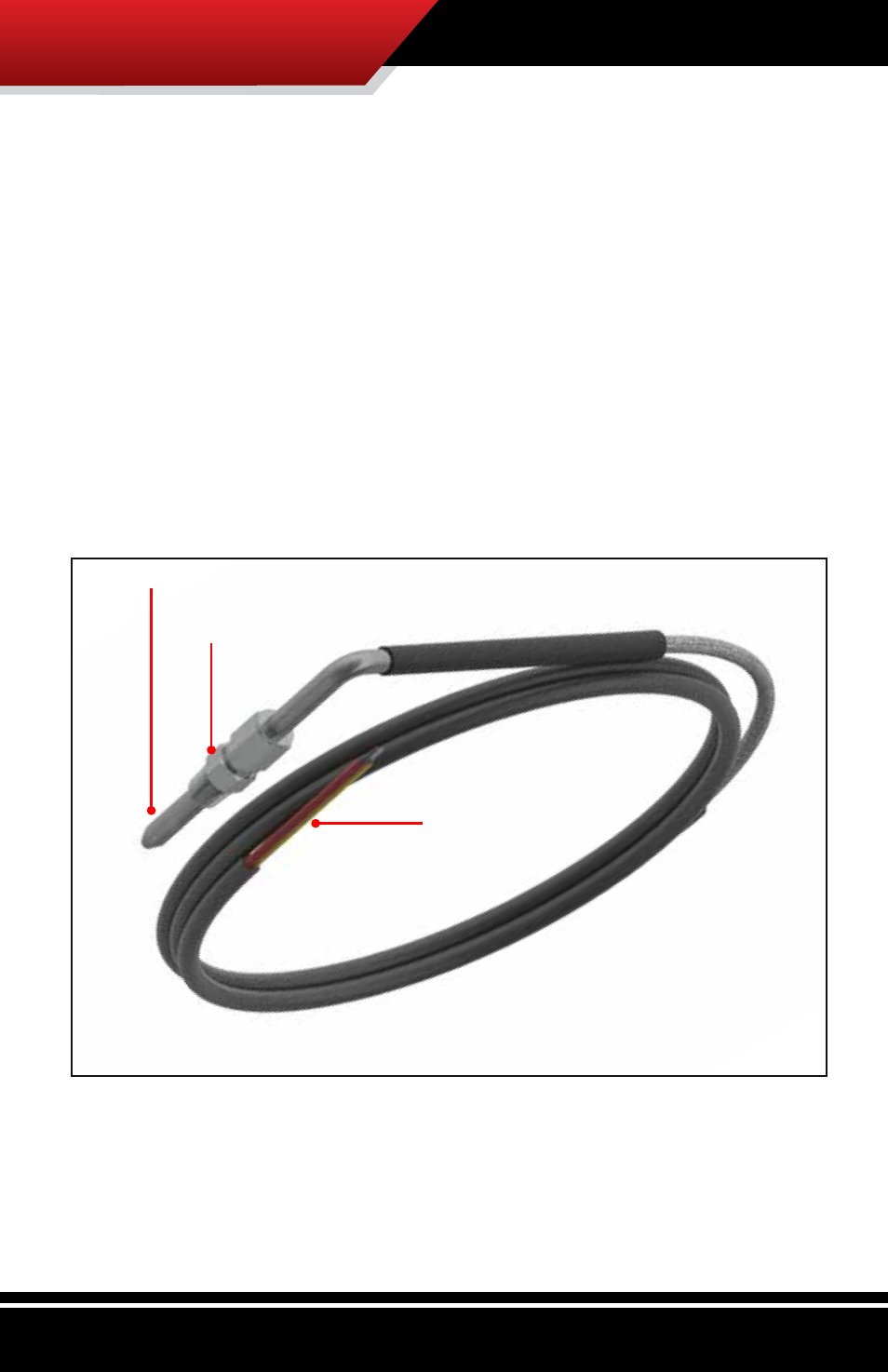

teMPerAture Probe
Fitting
sensor wires
