Sensor Docking Station

3. Locate a firewall hole.

a. You will need to run a USB cable from the Sensor

Docking Station in the engine compartment to your GT

or WatchDog in the cab.

b. An unused firewall hole might be covered with a

rubber grommet. If so, it might be necessary to use a

straightened wire hanger to punch through.

4. Choose a secure location for the Sensor Docking Station.

a. All of the wires must reach the location (pyrometer,

power and additional sensors).

b. Make sure that the USB cable will reach through the

firewall hole to the adapter plug (Light Duty) or HDMI

pigtail port (Heavy Duty) on your GT or WatchDog.

c. Keep the Sensor Docking Station and any wires or

cables away from extreme heat and moving parts.

5. Mount the Sensor Docking Station.

a. Use the zip ties and/or hook and loop fastener strips.
b. Fasten the Sensor Docking Station securely to your

vehicle.

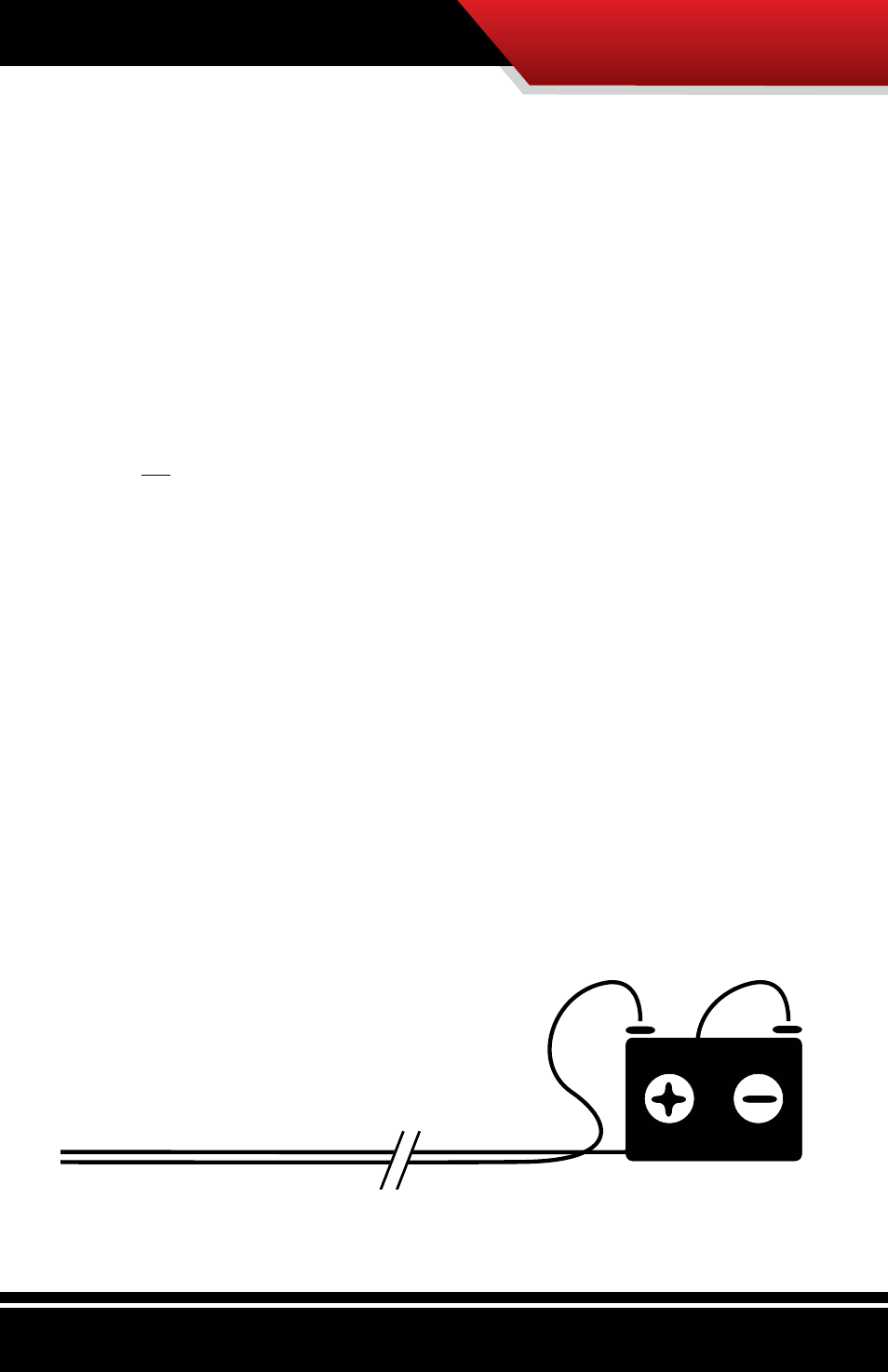

6. Disconnect the vehicle battery at the negative terminal.

Failure to disconnect the battery could result in personal

injury and/or damage to your vehicle.
