INSTALLATION
INSTRUCTIONS
1262 Instructions 9-14-14.doc Page 3 of 5

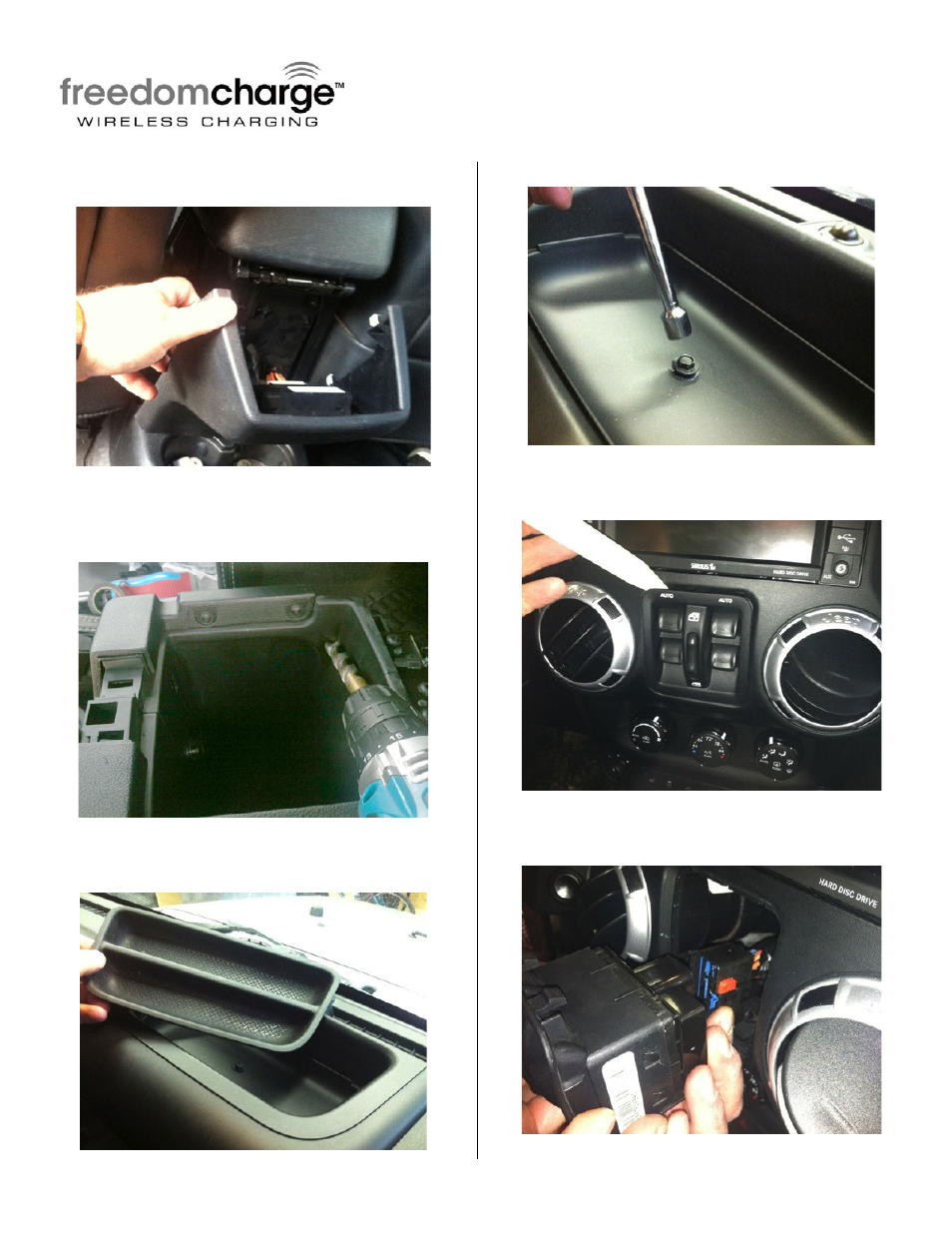

Step 6: Using Trim Removal Tool remove rear
console end cap.
Step 7: Drill 1/2” hole through lower armrest
bin side panel 1 ½” below top lip on
passenger side of vehicle.
Step 8: Remove rubber bin insert from top of
dash.
Step 9: Remove 7mm bolt.
Step 10: Using a plastic trim removal tool,
remove window switch panel.
Step 11: Disconnect harness from window
switches.
