INSTALLATION
INSTRUCTIONS
1262 Instructions 9-14-14.doc Page 2 of 5

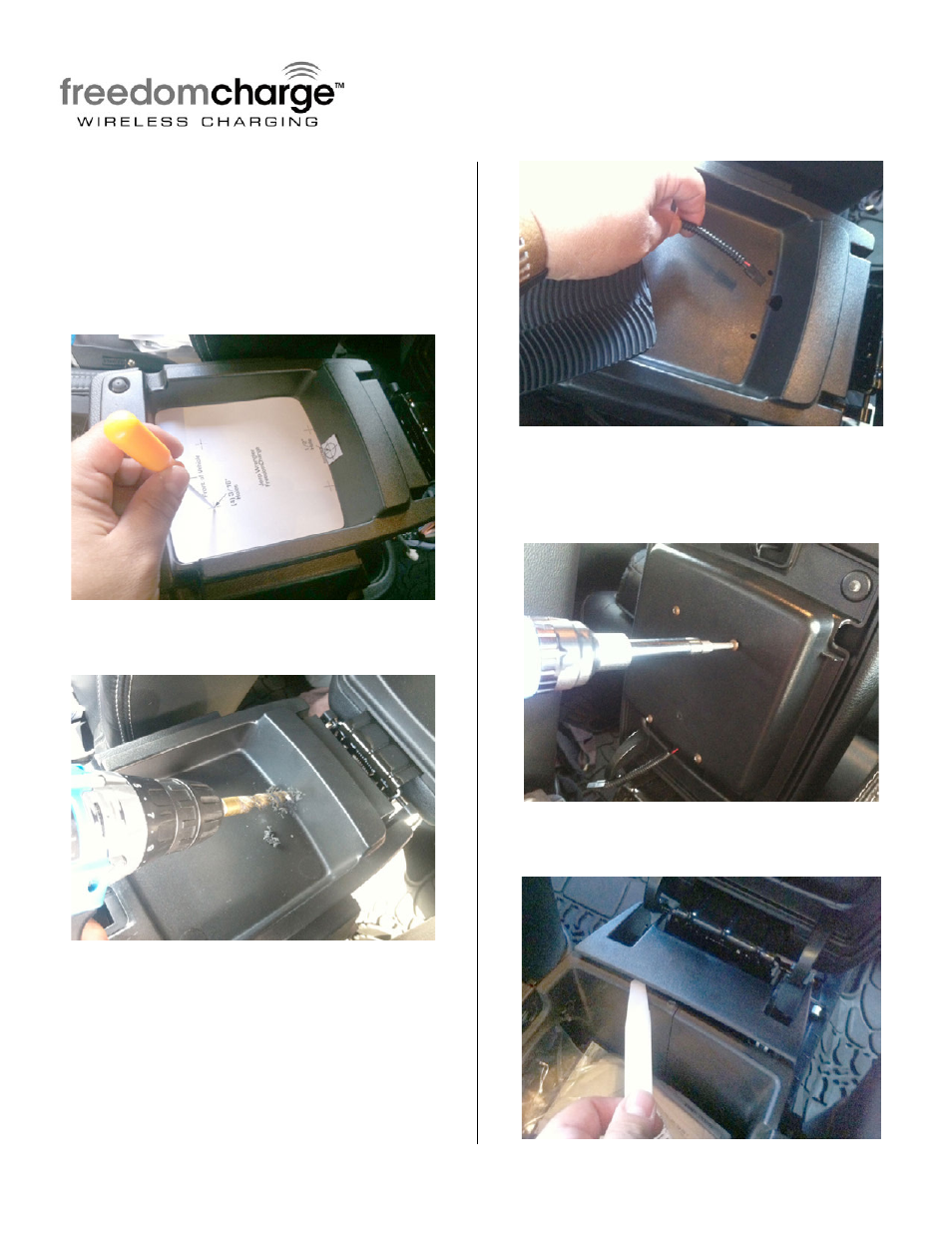

Step 1: Open armrest lid to reveal shallow
tray. Cut out provided template and mark
location for (4) 3/16” and (1) 5/16” hole.
Step 2: Drill the (4) 5/32”, (4) 3/16” and (1)
5/16” holes.
Step 3: Route plug of Charging Module
through ½” hole and place module in tray.
Step 4: Align the (4) 3/16” holes with
mounting holes on module and insert the (4)
3/8” Pan Head T-20 Torx Screws through
tray into module.
Step 5: Using Trim Removal Tool remove
hinge cover.
