INSTALLATION
INSTRUCTIONS
1260 Instructions 6-26-14.docx Page 4 of 5

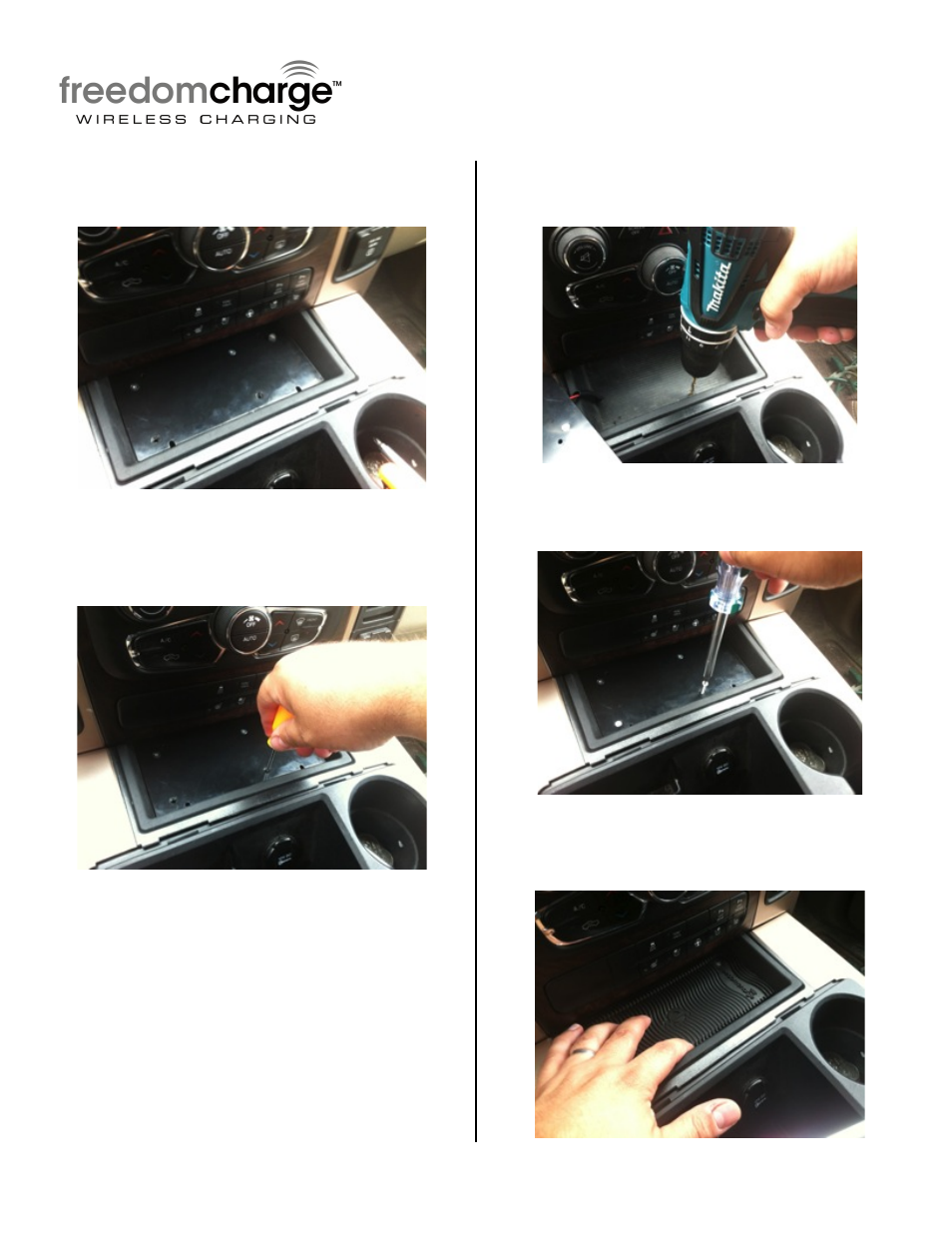

Step 12: Place Freedom Charge Module and
rubber tray liner into upper console trim.
Make sure to fully snap in rubber liners
Step 13: Using a center punch/scribe tool
mark the location of the (2) chamfered holes
through Charging Module onto rubber tray
liner.
Step 14: Swing Charging Module away and
Drill (2) 1/8” holes through rubber tray liner
and upper console trim.
Step 15: Insert the (2) 1” Flat Head T-10
Torx Screws through Charging Module and
rubber tray liner into upper console tray.
Step 16: Install Non-Slip Freedom Charge
Mat to Wireless Charging Module. Place the 4
locator pins in corresponding holes.
