INSTALLATION
INSTRUCTIONS
8536 Instructions 5-28-14.docx Page 4 of 4

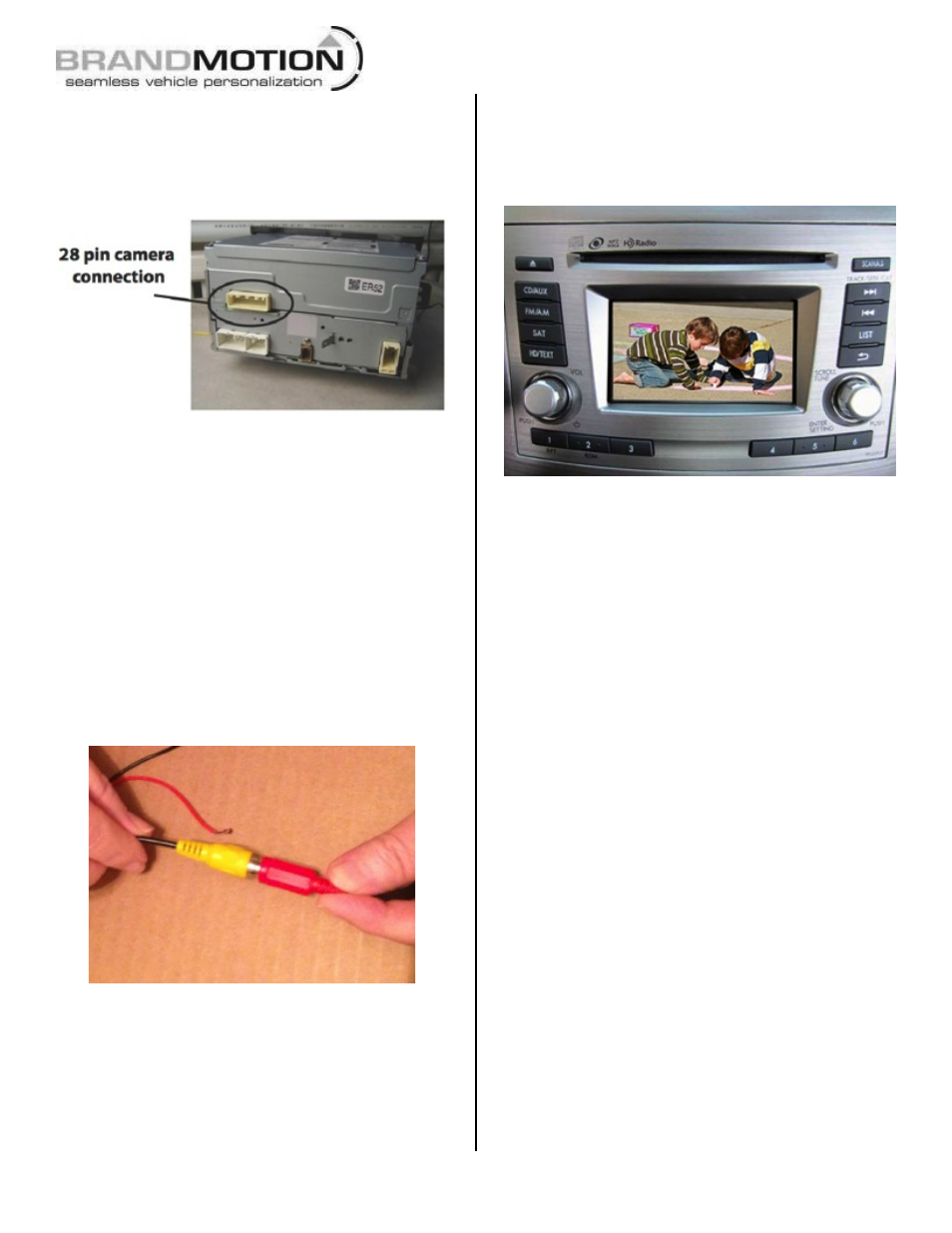

Step 19: Remove the radio and disconnect the 28-
pin connector. Caution: Be careful not to
disconnect antenna or other connection to back of
radio.
Step 20: Plug 28-pin radio connector into female
28-pin connector of supplied Jumper Harness.
Step 21: Plug the male 28-pin connector of
supplied Jumper Harness into the radio.
Step 22: Route supplied Chassis Harness under
carpet to the center console area. CAUTION: Keep
harness away from accelerator, brake pedal, and
parking brake assembly.
Step 23: Connect Chassis Harness RCA connector
to Jumper Harness female RCA connector and use
Electrical Tape to secure.
Step 24: Coil any excess Chassis Harness and
secure it and the Jumper Harness to existing
vehicle wiring with Wire Ties or Electrical Tape.
Step 25: Reinstall radio display and inspect that all
connections are proper and secure.
Step 26: Test system. Close trunk or liftgate and
clear all removed items from around the vehicle
before starting the vehicle. Next, shift into Reverse
and check radio display for the camera image.
Step 27: (If necessary) Adjust camera aim.
Reposition camera to the desired viewing angle.
Step 28: Reassemble vehicle. Follow your
disassembly steps in reverse order, taking care not
to bind the harness wiring when reinstalling trim.
