Brandmotion 9002-8534 - Manual

INSTALLATION
INSTRUCTIONS
8534 Instructions 5-29-14.docx Page 1 of 3
Toyota Factory 6.1” Display Radio OEM Camera, 2014 – Current
Corolla, Highlander, RAV4, 4Runner, and 2014.5 Camry
(Kit # 9002-8534)
Please read thoroughly before starting installation and check that kit contents are complete.
Items Included in the Kit: Tools & Supplies Required:
Bubble bag containing:
Camera with Mount (in zip lock bag)
Camera Harness
Chassis Harness
Display Harness with 24 pin connectors
Zip lock bag containing:
2 Rubber Well Nuts
2 Bolts
Zip lock bag containing:
These Instructions
Self-adhesive Template
Phillips Screwdriver
Center Punch
1/8” & 5/16” Drill Bits
5/8” Drill Bit or Center Hole Saw
7mm & 10mm Sockets
Power Drill
Deburring Tool or Round File
Multi-meter or computer safe test light
Wire Ties or Electrical Tape
Wire Crimper
Ground Eyelet
(Recommended)
Rust Inhibitor (Recommended)
Soldering Iron (Recommended)
Solder (Recommended) or T-taps
Plastic Trim Removal Tool
Safety Precautions:
•
Work in a well ventilated area that is clear of obstructions.
•
Secure vehicle with tire chucks in both front and rear of tires.
•
Turn vehicle accessories OFF and ensure ignition key is in OFF position.
•
Wear safety goggles and snug fitting clothes.
•
Use tools only for their intended purpose and which are in good repair.
•
Only perform this task if confidence, skill, and physical ability permit.
NOTE: We strive to provide accurate and up-to-date installation instructions.
For the latest full color instructions, as well as an installation video (refer to relevant portions of the video
for Kit # 9002-8530), please visit www.brandmotion.com

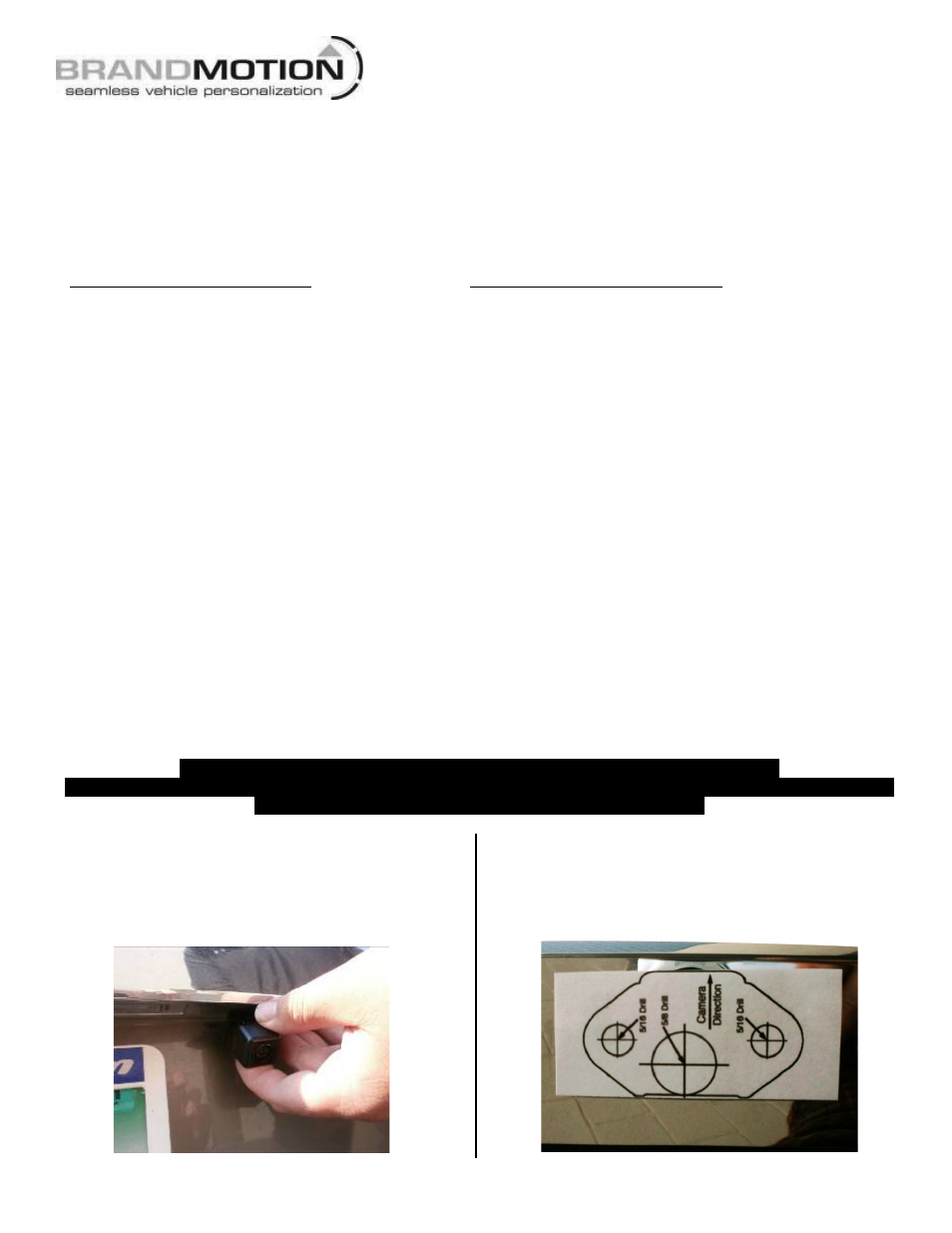

Step 1: Place Camera Mount in desired position to
confirm fitment. (IMPORTANT: Some states
prohibit items blocking the vehicle license plate;
check local authorities to confirm legal status for
your specific application). Step 2: Peel adhesive backing from supplied
Camera Mount Template and apply to the desired
location making sure that the camera direction is
correct.
