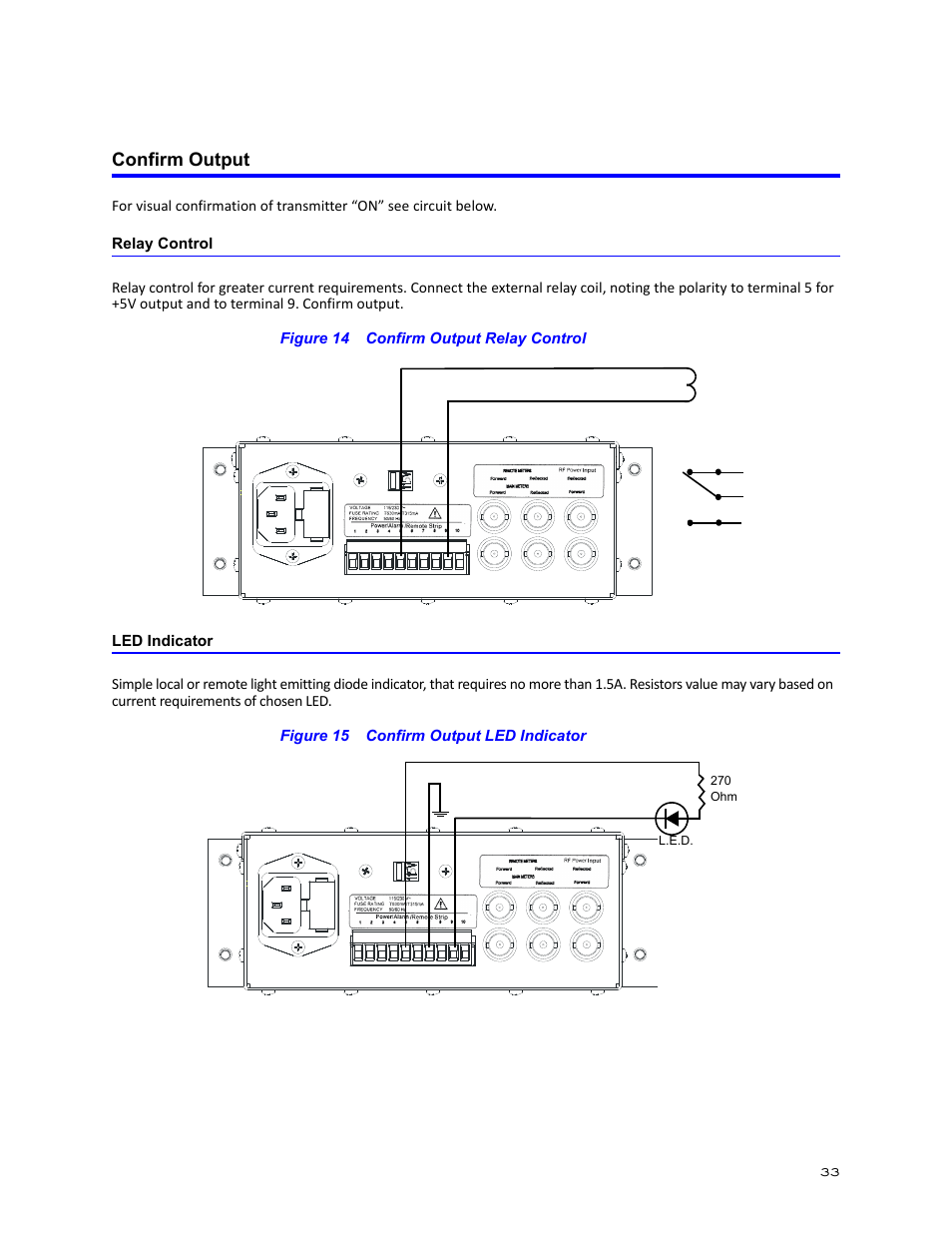

Confirm output, Relay control, Figure 14 confirm output relay control – Bird Technologies 3171B020 User Manual
Page 45: Led indicator, Figure 15 confirm output led indicator, Relay control led indicator
