4. Powering
The ACN-LS can be powered:
-
by 4 pcs. Type Mignon batteries (Alkaline, NiMH rechargeable or Li-Ion). Set correct
battery type in configuration for reliable low voltage warning.
 No charging function for rechargeable batteries when powered from external.
 Pay attention to insert with correct polarity as shown on label, insert outer with “+”
first, inner with “-“ first. Push down battery hinge and close slider.
 Or:
-
5 to 18 Volts DC via pin 4 of Lemo socket
 Or:
-
5 Volts DC via the USB socket.

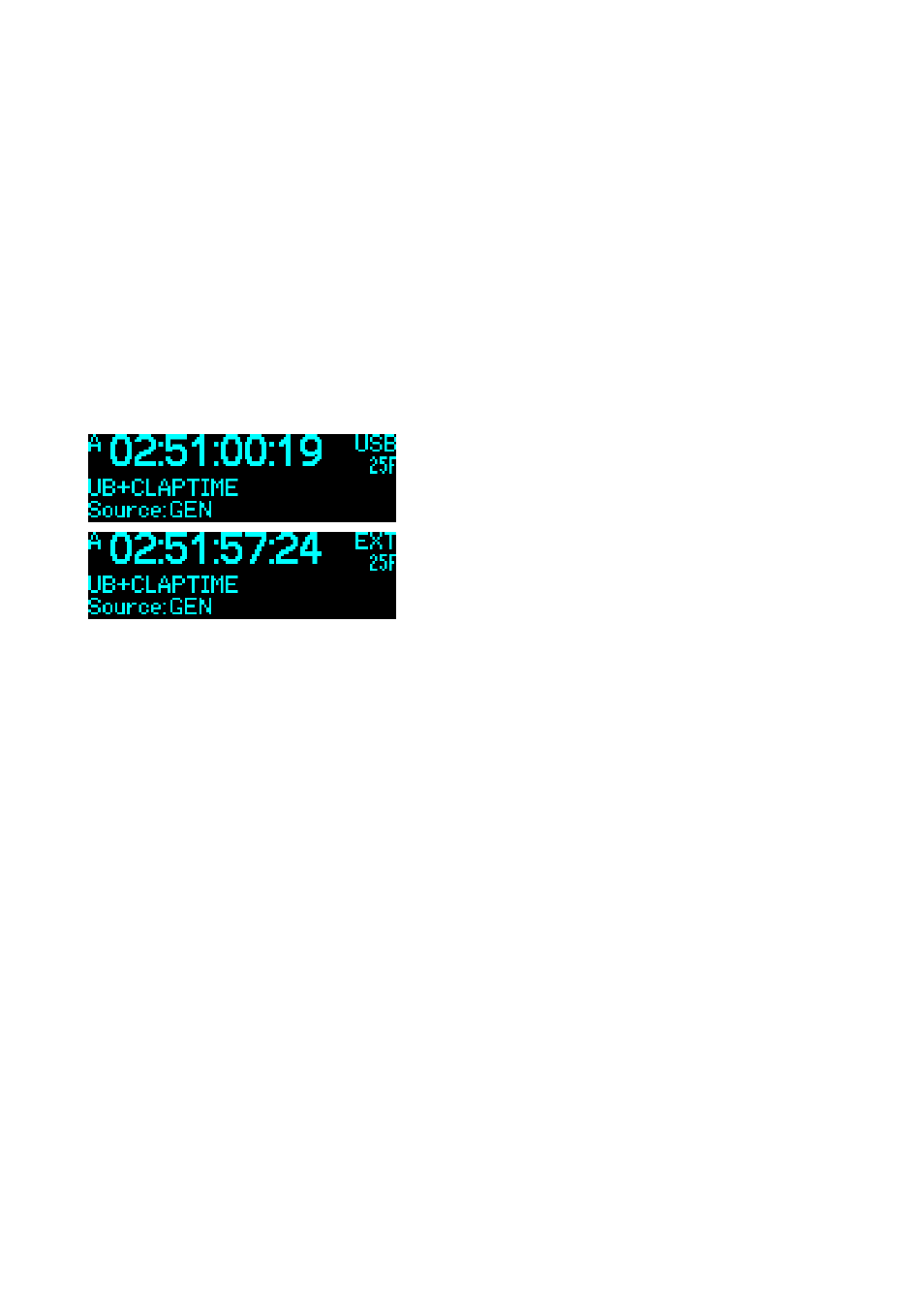

If powered from USB, USB is displayed in the upper
right corner of the display instead of the battery
symbol.
If powered from external on Lemo pin 4, EXT is
displayed in the upper right corner of the display
instead of the battery symbol.
Note:
current time code is lost when power is preserved via the backup supercap for about 4
to 5 minutes, depending on setting for the OLED display. The LED display is turned off in
backup power mode. After the supercap has run empty, the LockitSlate turns off and both,
time code as well as stored clap time entries are lost. The settings are stored, the unit will
power up with the last configuration used.
