11. Physical specifications
Dimensions Display Module: (L / W / H): 210 x 63 x 28 mm
Dimension of slate board is as a „legal“ pad.
Weight Display Module:
0.404 Kg (no batteries)
Power consumption: 70 to 600 mA (6 Volts)
Connectors:

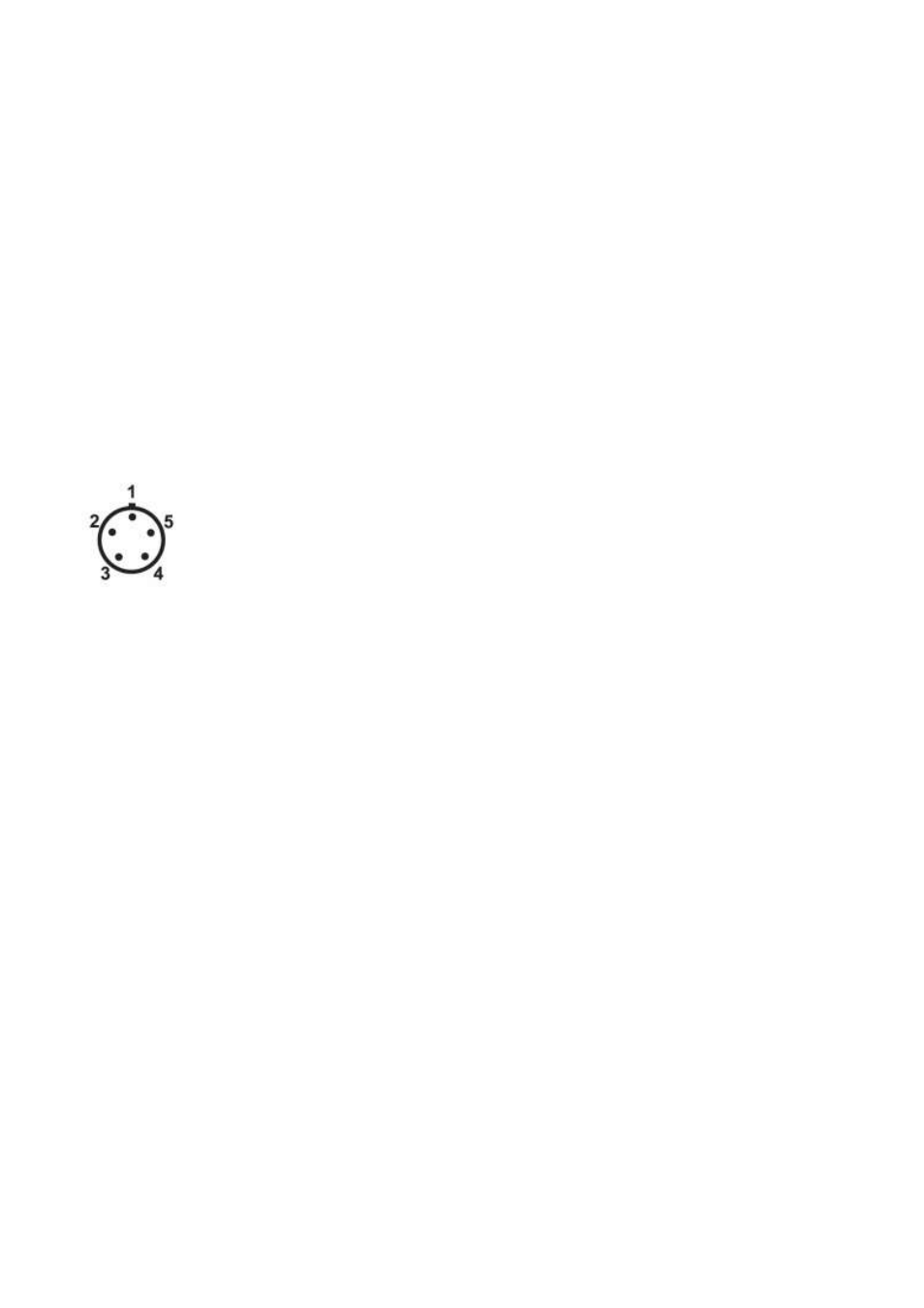

“Lemo”:
Lemo series 0B 5-pin (matching connector FGG/JGG.0B.305.CLADxx)
pin 1: ground
pin 2: LTC IN
pin 3: ASCII IN / OUT
pin 4: Tune reference 1.92 MHz out / DC-IN 6 to 18 Volts
pin 5: LTC OUT
Antenna:
SMA-F
USB:
Mini-B
