Ambient ATMEMP User Manual
Ambient Accessories for video

BINDER Serie 719
3-pin female cable connector
719 09 97 48 70 03

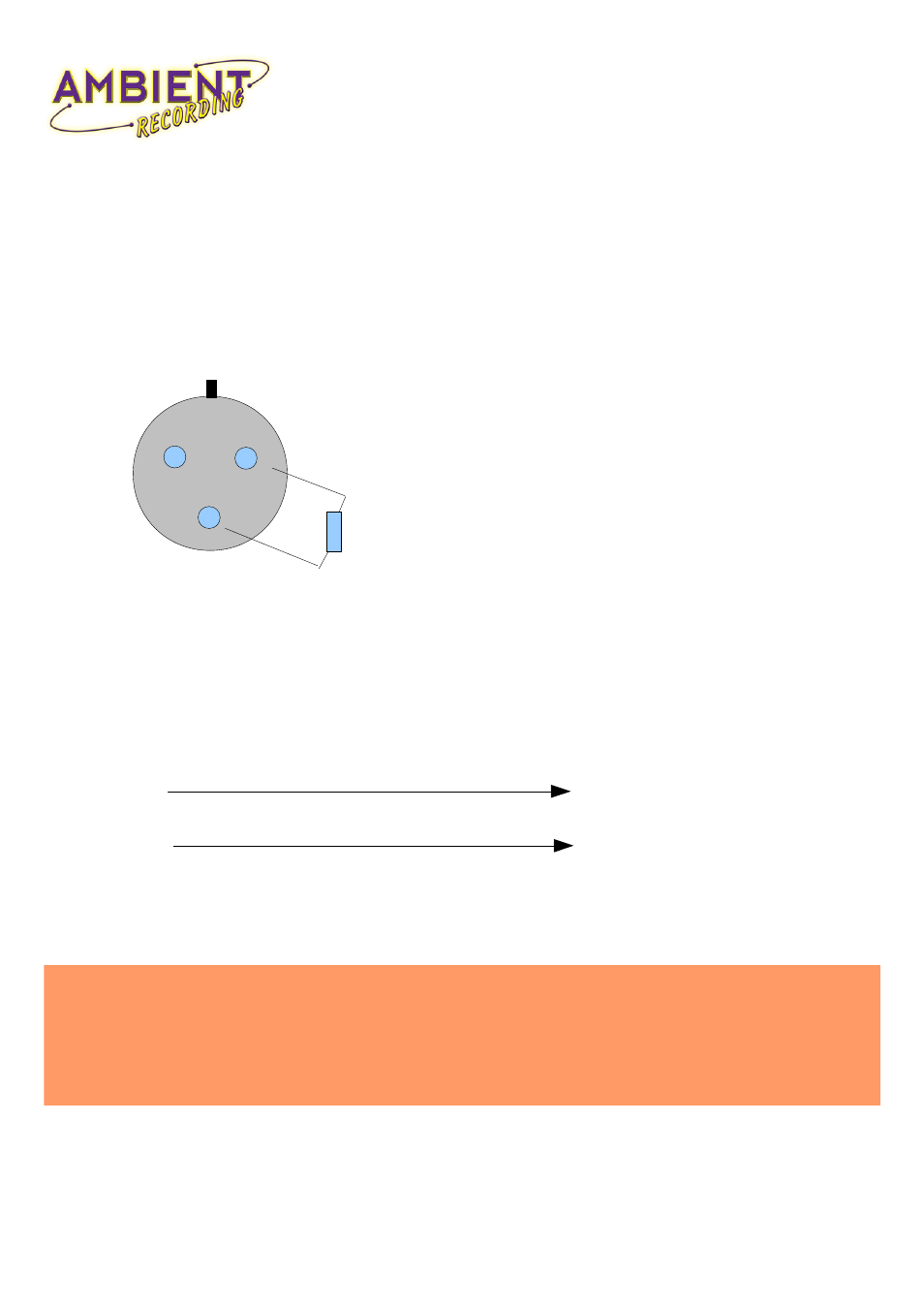

Pin layout solder view
3
2
Pin 1: ground / shield
Pin 2: Audio + Bias
Pin 3: bridged to 1
1
ATM216 wiring
Connections :
1/8“ 3,5 mm jack
Binder 3-pin
Tip
Pin 2 / audio in left
Ring
bridged to tip for dual mono
Shaft
Pin 1 / 3 / ground
Please note:
1)
Because often users think the connectors need to be twisted to unplug, we
secure the caps with glue. Heat up to open.
Ambient Recording GmbH Schleißheimerstr.181c D - 80797 Muenchen
Tel.+49 89 3605510-0 www.ambient.de
R 510 Ohm
For reducing the
level if necessary
