TC MENU
Enter the TC menu to adjust the time code frame
rate, MIDI time code (MTC) functions and time code
output level for pin 5 Lemo.

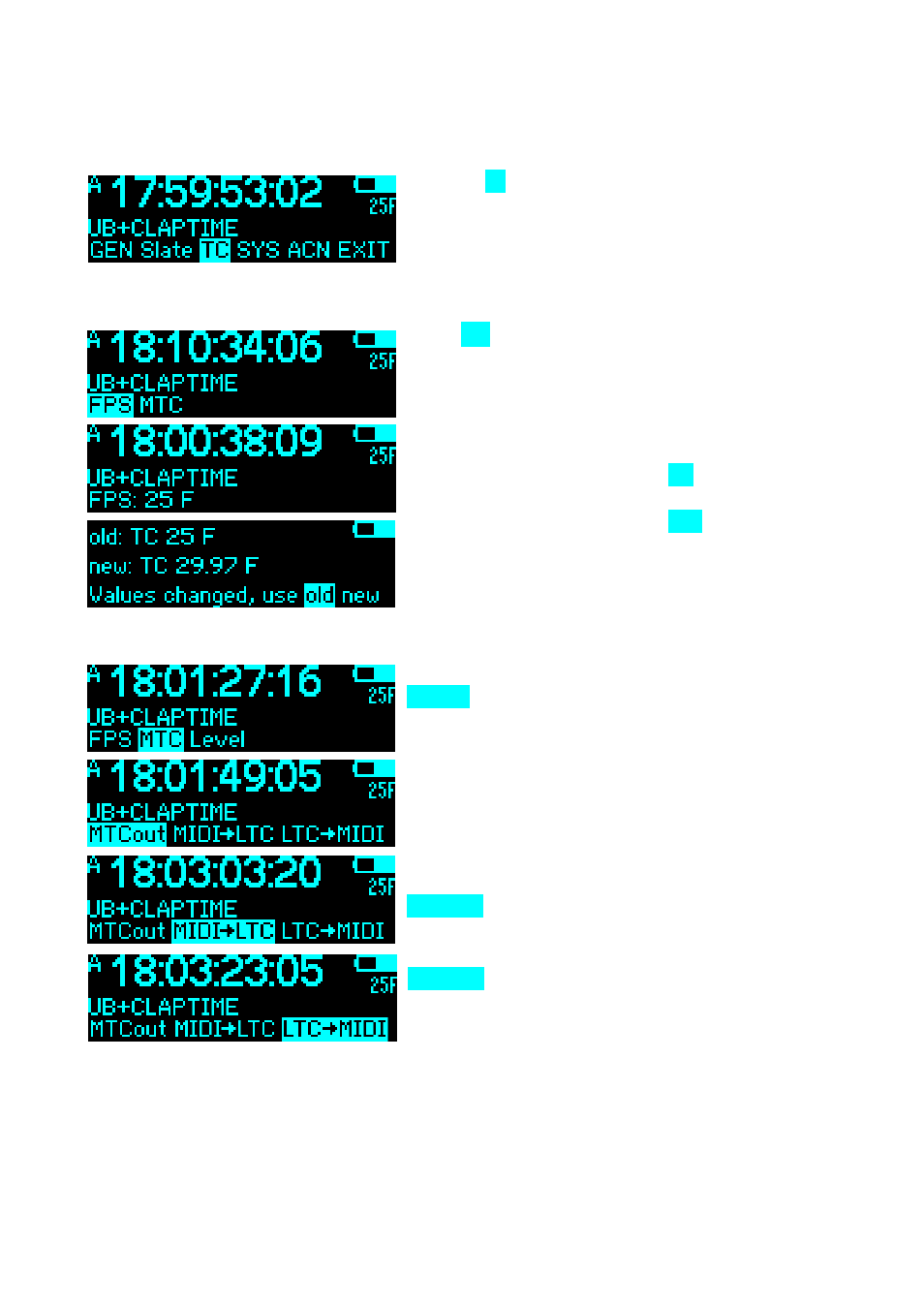

TC > FPS
Select FPS for adjusting the frame rate. Adjust by
toggling the config switch left/right, push to select
new frame rate:
Available rates: 23.976, 24, 25, 29.97, 30, 29.97D, 30D
fps (D = drop frame)
If settings are changed, confirmation is required:
Pushing the config switch while “old” is highlighted,
discards the changes and returns to the main menu.
Pushing the config switch while “new” is highlighted
will set the time code signal to the selected rate and
resets the time code if changing between integer and
non-integer rates (a.k.a. PAL / NTSC Area),
TC > MTC
Select MTC to control the Midi Time Code options:
MTCout: this is the default mode. The ACN-LS always
puts out MTC, unless the USB port is set to COM (see
SYS > Config > USB
The USB Socket activates USB whenever a 5 Volt USB
power is recognized.
Activating below convert modes sets the USB port
to MTC.
MIDI>LTC: MTC received through USB will be
converted into LTC and put out via Lemo socket.
LTC>MIDI: LTC received on Lemo pin 2 will be
converted and put out as MTC via USB.
The above convert modes are identical to the convert modes selected in the slate menu, just a
different shortcut.
