Ambient QCSX Boom Pole Cabling - Manual

QCCX
INSTALLING THE COILED CABLE KIT
ASSEMBLY INSTRUCTION FOR CABLE FITTING QX BOOMS
The coiled cable kit comes assembled ready to mount.
The kit contains:
1) inner cable strain relief, made out of POM
2) base, made out of POM, with two threaded holes
3) two grub-screws M4 and a matching allen key
4) outer shell, anodized aluminum
5) knurled ring nut for mounting on to the boom
6) rubber-bumper
7) coiled cable
8) XLR connectors
9) rubber sleeve
10) heatshrink

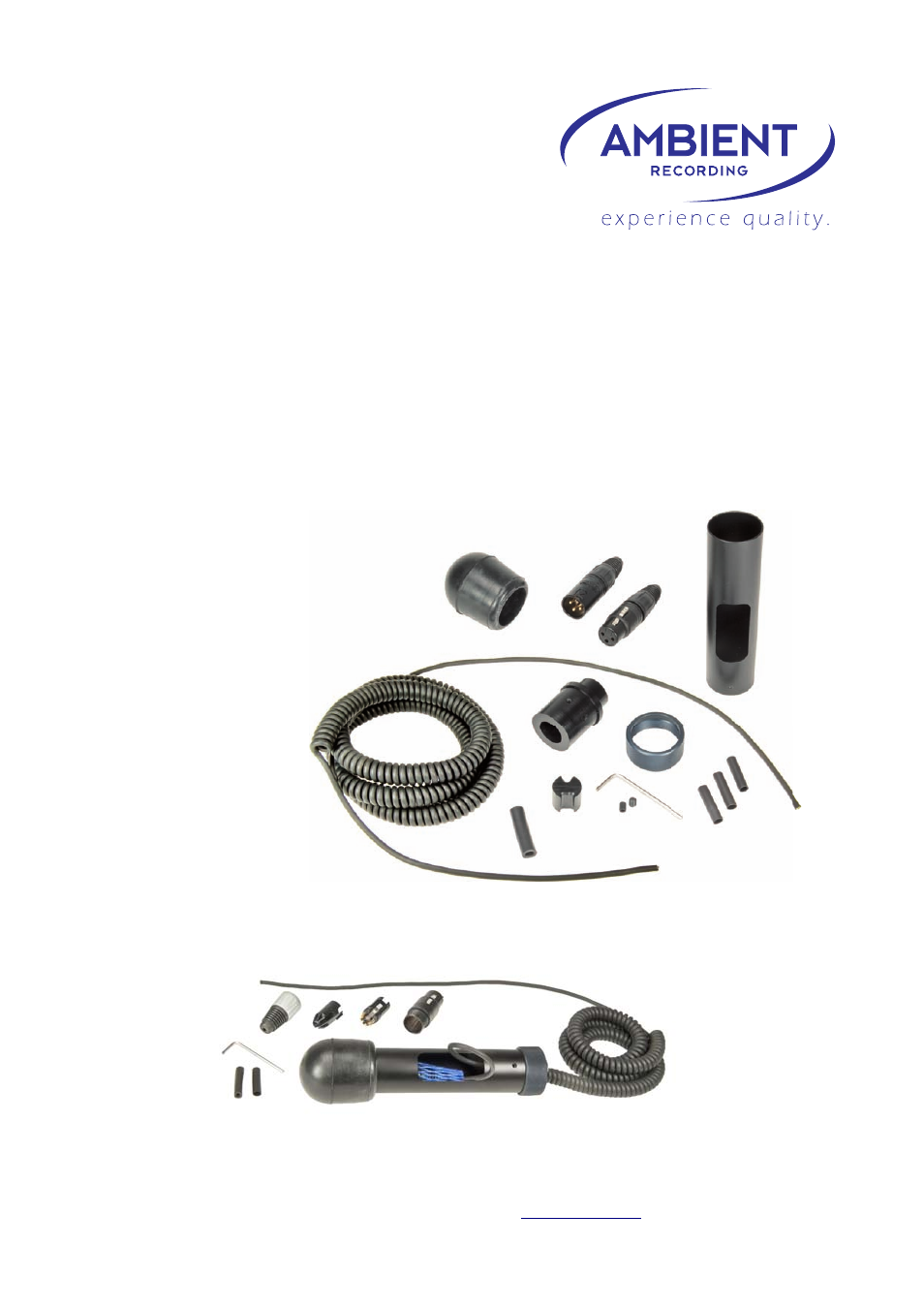

kit contents (mono connectors)
assembled kit ready to mount (with stereo connectors)
