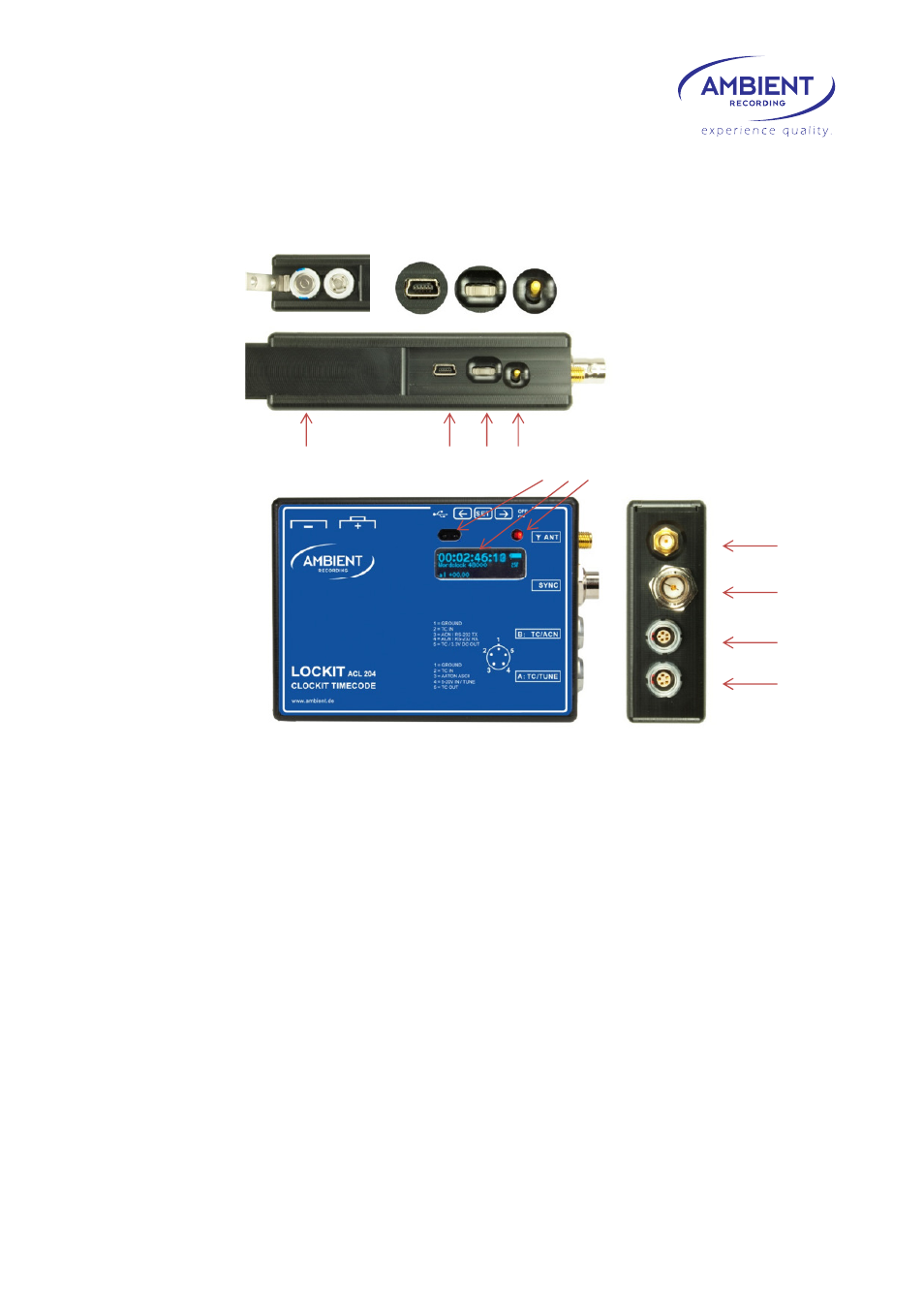

Description
① Battery compartment slider to be pushed left/right for access to switches or batteries
② USB socket type Mini-B 5-pin
③ Configuration switch (further “config switch”, ↓ for pushing in, ↔ for toggle leŌ/right)
④ Power switch
⑤ IR transceiver, used to set and check the ACL 204 from the ACC501 controller
⑥ Display
⑦ Signal LEDs
⑧ External antenna connector
⑨ Sync signal connector
⑩ Lemo 5-pin socket “B”: time code in, out / serial port tx-rx / DC-out
⑪ Lemo 5-pin socket “A”: time code in, out / ascii / tune signal / DC-in
① ② ③ ④ ⑤⑥⑦
⑧
⑩
⑪
⑨
